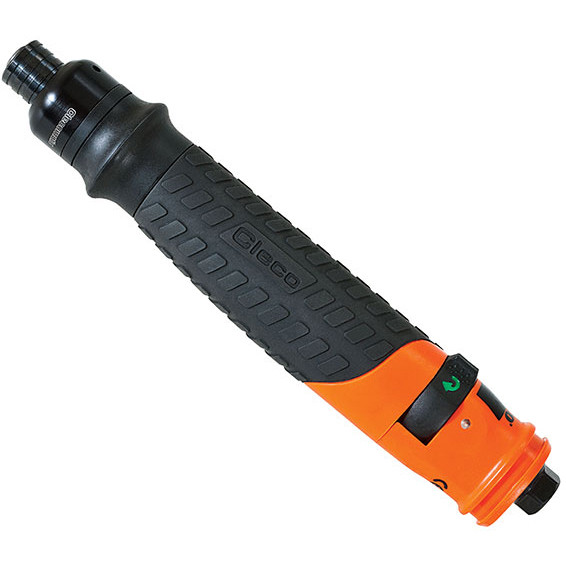

Cleco 19SPA06Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 260 RPM | 0.3 - 3.7 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for slower, more controlled screw rundown in light-to-medium production assembly, the Cleco 19SPA06Q collar reverse inline pneumatic screwdriver gives operators a low-speed fastening option in the 19 Series platform. Its 260 RPM free speed is useful when fastener control matters more than cycle speed, especially on smaller screws, sensitive materials, or assemblies where over-running the fastener can damage the part. The 10–45 in-lbs torque range provides controlled tightening force for low-to-moderate torque applications, while the 1/4" hex quick change drive supports fast bit changes at production benches and rework stations.

The 19SPA06Q uses Cleco’s Clecomatic clutch, a torque shut-off clutch that stops the tool when the preset torque is reached, helping improve repeatability and reduce over-tightening. Collar reverse places the reverse control near the front of the tool, allowing operators to back out a fastener or correct a mis-start without moving to a separate reverse lever. With push-to-start actuation, an inline body, 1/8" NPT air inlet, and 11 SCFM air consumption, this model is well-suited for assembly stations that need steady torque control, straight-line bit alignment, and deliberate fastening speed.

Type: Inline Pneumatic Screwdriver | Series: 19 Series | Model: 19SPA06Q | Start Type: Push-to-Start | Reverse Type: Collar Reverse | Drive: 1/4" Hex Quick Change | Free Speed: 260 RPM | Torque Range: 10–45 in-lbs / 1.1–5.1 Nm | Torque Range with Standard Spring: 10–38 in-lbs / 1.1–4.3 Nm | Overall Length: 9.5" / 240 mm | Weight: 1.5 lbs / 0.68 kg | Air Inlet: 1/8" NPT | Minimum Hose I.D.: 3/16" | Air Consumption: 11 SCFM | Required Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch provides torque shut-off for repeatable fastening in controlled assembly environments
• 260 RPM free speed supports deliberate rundown, where fastener control, alignment, and part protection are more important than maximum cycle speed
• Push-to-start actuation starts the tool when the bit is pressed into the fastener, helping operators maintain straight engagement during repetitive work
• Collar reverse control allows quick fastener removal or correction from the front of the tool without a major grip change
• 1/4" hex quick change drive accepts compatible hex insert bits and helps reduce downtime when switching between screw types
• Inline body style keeps the bit aligned with the operator’s hand, making the tool a good fit for vertical fastening, fixtured assembly, and bench work
• Grip material is tested to withstand a range of industrial chemicals commonly found in production and maintenance settings
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Electronics and instrument assembly — installing small screws into housings, covers, brackets, and terminals, where controlled speed helps protect components
• Appliance and consumer product manufacturing — fastening panels, light frames, switches, and subassemblies at repeatable bench stations
• Automotive component production — running screws into trim pieces, sensors, interior hardware, light assemblies, and small brackets
• Aerospace and precision assembly — controlled fastening in fixtures, bench assemblies, and low-torque applications where bit alignment matters
• Industrial repair and rework benches — removing, correcting, and reinstalling small machine screws during inspection, maintenance, or product rework

FAQs:

• Q: Why choose the 260 RPM 19SPA06Q instead of a faster 19 Series screwdriver?
  A: The 260 RPM speed gives operators more control during rundown. It is a better fit when the assembly is delicate, the screw is small, or the process requires careful engagement before the clutch reaches final torque.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch shuts off the tool once the preset torque is reached. This helps reduce over-tightening and supports more consistent fastening results from one cycle to the next.
• Q: What type of bits fit this model?
  A: The 19SPA06Q uses a 1/4" hex quick-change drive for compatible 1/4" hex insert bits. Select the correct bit profile and length for the fastener head, access point, and assembly fixture.
• Q: What air supply is required for this screwdriver?
  A: This tool is rated for operation at 90 PSI / 620 kPa and uses 11 SCFM. A clean, regulated air supply through a properly sized hose and FRL helps maintain consistent tool performance.
• Q: Is this screwdriver intended for drilling or impact driving?
  A: No. This is a pneumatic assembly screwdriver for controlled screw fastening. It should not be used as a drill, impact driver, or general-purpose automotive repair tool.
