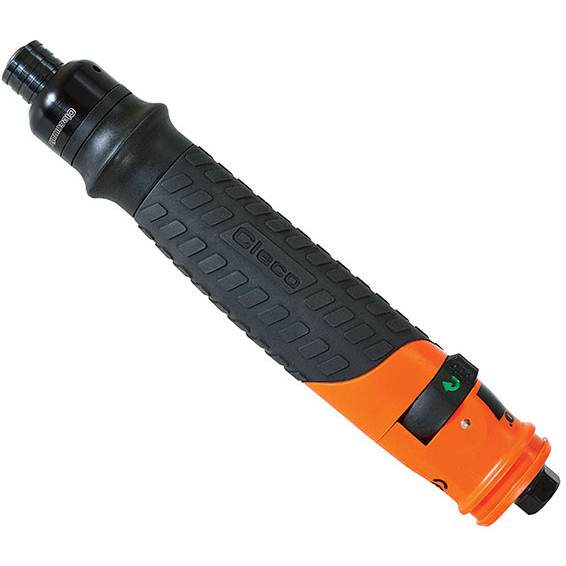

Cleco 19SPA03Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 1,900 RPM | 0.3 - 2.2 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

When assembly work calls for more torque than the higher-speed 19SPA02Q while still keeping rundown time efficient, the Cleco 19SPA03Q Collar Reverse Inline Pneumatic Screwdriver delivers a balanced combination of 1,900 RPM free speed and a 0.3 - 2.2 ft-lbs torque range. This 19 Series inline screwdriver is built for repetitive low-torque fastening in production environments where screws must be installed consistently without using an oversized impact or drill driver. The Clecomatic clutch (a mechanical clutch system that helps repeat torque from cycle to cycle) supports controlled fastening on light assemblies, brackets, covers, housings, and component-level work.

The 1/4" hex quick change drive accepts common screwdriver bits for fast bit changes at the workstation, while the push-to-start inline body helps operators keep the bit aligned with the fastener during repeated cycles. Collar reverse gives the user directional control at the tool body, making the 19SPA03Q useful for assembly, adjustment, and fastener removal tasks in aerospace, appliance, electronics, automotive component, and general manufacturing settings.

Type: Inline Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19SPA03Q | Start Type: Push-to-Start | Reverse Type: Collar Reverse | Clutch Type: Clecomatic Clutch | Drive Type: 1/4" Hex Quick Change | Torque Range: 0.3 - 2.2 ft-lbs / 0.4 - 2.9 Nm | Free Speed: 1,900 RPM | Length: 9.1 in. | Weight: 1.41 lb / 0.64 kg | Air Consumption: 11 SCFM | Air Inlet: 1/8 in. | Min. Hose I.D.: 1/4 in. | Operating Pressure: 90 PSI

Features:

• Clecomatic Clutch helps deliver repeatable torque output for production fastening and controlled assembly work
• Push-to-start actuation starts the tool when the bit is pressed into the fastener, helping streamline repetitive screwdriving cycles
• Collar reverse configuration allows directional changes at the tool body for installing, backing out, or correcting fasteners
• Inline body layout supports a straight fastener approach in bench, fixture, and workstation assembly environments
• 1/4" hex quick change drive speeds bit replacement when switching between screw types or fastener recess styles
• Grip material is tested to withstand a range of industrial chemicals commonly found in manufacturing and maintenance areas
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Production assembly stations where controlled torque is needed for small screws and threaded fasteners
• Aerospace and precision manufacturing work involving brackets, covers, access panels, and light component fastening
• Appliance and electronics assembly where repeatable screw installation helps protect housings and internal components
• Automotive component assembly for interior trim, small fixtures, light brackets, and similar low-torque fastener work
• Industrial MRO benches where technicians need an air-powered screwdriver for repeatable installation and removal tasks

FAQs:

• Q: How is the 19SPA03Q different from the faster 19SPA02Q?
  A: The 19SPA03Q runs at 1,900 RPM and offers a higher maximum torque range than the 19SPA02Q. Choose this model when the application needs more fastening torque while still requiring efficient run-down speed.
• Q: What does collar reverse mean?
  A: Collar reverse means the tool direction is changed using a collar on the body of the screwdriver. This allows the operator to switch between forward and reverse without changing tools or moving to a separate control layout.
• Q: What type of bits does this screwdriver accept?
  A: This model uses a 1/4" hex quick change drive. It accepts compatible 1/4" hex screwdriver bits selected for the fastener recess, screw length, and workstation access requirements.
• Q: Is this screwdriver intended for high-torque bolt removal?
  A: No. The 19SPA03Q is a precision pneumatic screwdriver for low-torque fastening, not an impact wrench or bolt removal tool. Use it for controlled screw installation and adjustment within its specified torque range.
• Q: What air pressure should be used with this tool?
  A: Cleco specifies 90 PSI for maximum rated torque. Clean, regulated air and a properly sized air line help the tool maintain consistent speed, torque, and clutch performance.
