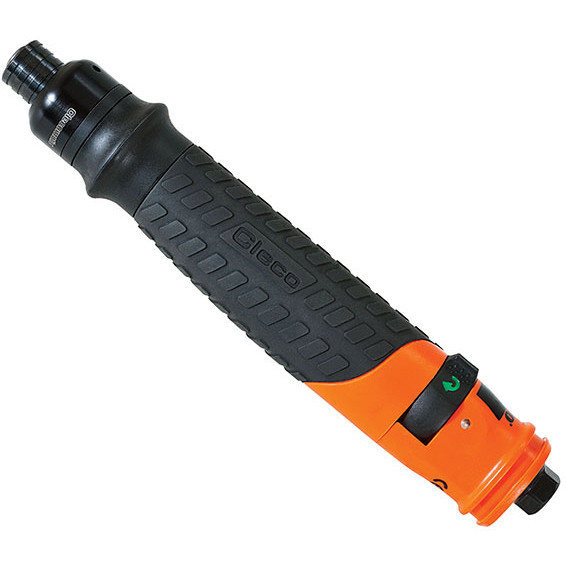

Cleco 19SPA04Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 1,100 RPM | 0.3 - 3.3 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for light-to-medium assembly fastening, the Cleco 19SPA04Q collar reverse-inline pneumatic screwdriver provides production teams with a compact push-to-start tool for repeatable screw installation in electronics, appliances, automotive components, aerospace assemblies, and general manufacturing. It's 1,100 RPM free speed supports controlled rundown without jumping immediately to high-speed fastening, while the 10–40 in-lbs torque range provides low-torque control for smaller screws and threaded fasteners. The 1/4" hex quick-change drive accepts common insert bits and allows fast bit swaps between jobs.

The 19SPA04Q uses Cleco’s Clecomatic clutch, a torque-controlled clutch system that disengages when the preset torque is reached, helping reduce over-tightening and improve fastening consistency. Collar reverse places the reverse control near the nose of the tool, letting operators back out fasteners without changing grip position. With an inline body, push-to-start actuation, 1/8" NPT air inlet, and 11 SCFM air consumption, this screwdriver is well-suited for bench assembly stations where controlled torque and quick bit changes matter more than high fastener-removal power.

Type: Inline Pneumatic Screwdriver | Series: 19 Series | Model: 19SPA04Q | Start Type: Push-to-Start | Reverse Type: Collar Reverse | Drive: 1/4" Hex Quick Change | Free Speed: 1,100 RPM | Torque Range: 10–40 in-lbs / 1.1–4.5 Nm | Torque Range with Standard Spring: 10–38 in-lbs / 1.1–4.3 Nm | Overall Length: 9.1" / 230 mm | Weight: 1.3 lbs / 0.61 kg | Air Inlet: 1/8" NPT | Minimum Hose I.D.: 3/16" | Air Consumption: 11 SCFM | Required Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch delivers repeatable torque shut-off for controlled screw assembly and reduced fastener damage
• Push-to-start operation activates the tool when axial pressure is applied, helping operators keep both hands focused on part alignment and fastening
• Collar reverse control allows quick fastener removal or correction without reaching for a separate reverse lever
• 1/4" hex quick change drive supports fast bit changes for production cells that run multiple screw types or assemblies
• Inline body style helps keep the bit aligned with the fastener, which is useful for vertical bench work and fixture-based assembly
• Grip material is tested to withstand a range of industrial chemicals commonly found in production environments
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Electronics assembly — fastening covers, brackets, housings, and light hardware where low-torque repeatability is more important than high rundown force
• Appliance manufacturing — installing screws into panels, frames, and subassemblies at workstations that require consistent fastening cycles
• Automotive component assembly — running small fasteners in interior trim, sensors, brackets, light housings, and other low-torque assemblies
• Aerospace and precision production — controlled fastening in bench assembly and fixture work where alignment and repeatable torque are critical
• General manufacturing and MRO benches — tightening and removing small machine screws during assembly, inspection, repair, or rework

FAQs:

• Q: What type of bits does the Cleco 19SPA04Q accept?
  A: This model uses a 1/4" hex quick-change drive, so it accepts compatible 1/4" hex insert bits. Always match the bit style to the screw recess and fastening application.
• Q: What does collar reverse mean on this screwdriver?
  A: Collar reverse means the reverse control is located near the front collar of the tool. This lets the operator reverse the screwdriver to remove or correct a fastener without changing hand position as much as a rear or trigger-style reverse control.
• Q: Is this screwdriver for a torque-critical assembly?
  A: Yes, it uses a Clecomatic clutch that shuts off at the preset torque. For formal quality systems, torque settings should still be verified with a calibrated torque tester during setup and at the required inspection interval.
• Q: How much air does the 19SPA04Q require?
  A: The tool is rated at 11 SCFM and requires 90 PSI / 620 kPa for maximum rated torque. Use a properly sized air line and FRL to help maintain steady pressure at the tool during repeated fastening cycles.
• Q: Is this a good choice for automotive repair or DIY garage work?
  A: It can be used for small screw fastening and rework, but it is primarily a production assembly screwdriver. It is not intended to replace an impact driver, ratchet, or drill for general automotive repair.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
