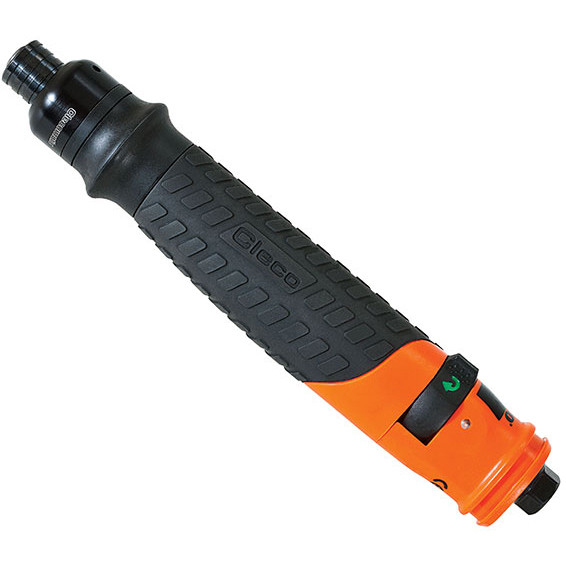

Cleco 19SPA05Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 660 RPM | 0.3 - 3.7 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for controlled fastening in bench assembly and production workcells, the Cleco 19SPA05Q collar reverse inline pneumatic screwdriver gives operators a slower, higher-torque option within the 19 Series family. Its 660 RPM free speed provides deliberate rundown control for small threaded fasteners, while the 10–45 in-lbs torque range supports applications that need more tightening force than faster, lower-torque inline models. The 1/4" hex quick change drive accepts common hex insert bits, making it practical for assembly lines where bit changes, rework, and fastener variation are part of the daily process.

The 19SPA05Q uses Cleco’s Clecomatic clutch, a shut-off clutch system that stops the tool when the preset torque is reached, helping reduce over-tightening, stripped threads, and inconsistent assemblies. The collar reverse places the reverse control near the front of the tool, allowing quick fastener removal or correction without changing the operator’s grip. With push-to-start actuation, an inline body, 1/8" NPT air inlet, and 11 SCFM air consumption, this screwdriver fits production environments where torque control, straight-line bit alignment, and repeatable fastening are the priorities.

Type: Inline Pneumatic Screwdriver | Series: 19 Series | Model: 19SPA05Q | Start Type: Push-to-Start | Reverse Type: Collar Reverse | Drive: 1/4" Hex Quick Change | Free Speed: 660 RPM | Torque Range: 10–45 in-lbs / 1.1–5.1 Nm | Torque Range with Standard Spring: 10–38 in-lbs / 1.1–4.3 Nm | Overall Length: 9.5" / 240 mm | Weight: 1.5 lbs / 0.67 kg | Air Inlet: 1/8" NPT | Minimum Hose I.D.: 3/16" | Air Consumption: 11 SCFM | Required Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch provides torque-controlled shut-off to support repeatable fastening in light and medium assembly work
• 660 RPM free speed gives operators more controlled rundown on applications where precision matters more than maximum fastening speed
• Push-to-start actuation starts the tool when the bit is pressed into the fastener, helping maintain alignment during repetitive assembly
• Collar reverse control allows fastener removal or correction from the front of the tool without requiring a major grip change
• 1/4" hex quick change drive allows fast bit swaps for production stations that handle multiple screw types or part numbers
• Inline body configuration keeps the bit in line with the operator’s hand, which helps on vertical fastening, fixture work, and bench assembly
• Grip material is tested to withstand a range of industrial chemicals commonly found in manufacturing and maintenance environments
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Electronics and electrical assembly — fastening covers, terminals, brackets, panels, and small housings where controlled torque helps protect threads and components
• Appliance manufacturing — installing screws into frames, panels, subassemblies, and light hardware at repeatable production workstations
• Automotive component assembly — running fasteners in interior trim, sensors, light housings, brackets, and other low-to-moderate torque assemblies
• Aerospace and precision manufacturing — controlled fastening in bench assembly, fixtured work, and small component installation
• Industrial repair and rework benches — removing and reinstalling small machine screws during inspection, service, and assembly correction

FAQs:

• Q: What makes the 19SPA05Q different from faster 19 Series inline screwdrivers?
  A: The 19SPA05Q runs at 660 RPM and reaches up to 45 in-lbs of torque. That makes it better suited for applications that need more tightening force and a more controlled rundown than higher-speed, lower-torque models.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch is a shut-off clutch that stops the tool when the preset torque is reached. This helps improve fastening consistency and reduces the risk of over-driving screws into delicate parts.
• Q: What bits work with this screwdriver?
  A: This model uses a 1/4" hex quick change drive for compatible 1/4" hex insert bits. Choose the bit style and length that match the screw recess, access point, and assembly fixture.
• Q: What air supply does the Cleco 19SPA05Q require?
  A: The tool is rated for 90 PSI / 620 kPa and uses 11 SCFM. Use clean, regulated air through a properly sized hose and FRL to help maintain torque performance during repeated cycles.
• Q: Is this tool intended for general repair work?
  A: It can be used for small screw removal and reinstallation, but it is primarily a production assembly screwdriver. For drilling, impact driving, or general automotive repair, a different tool type may be more appropriate.
