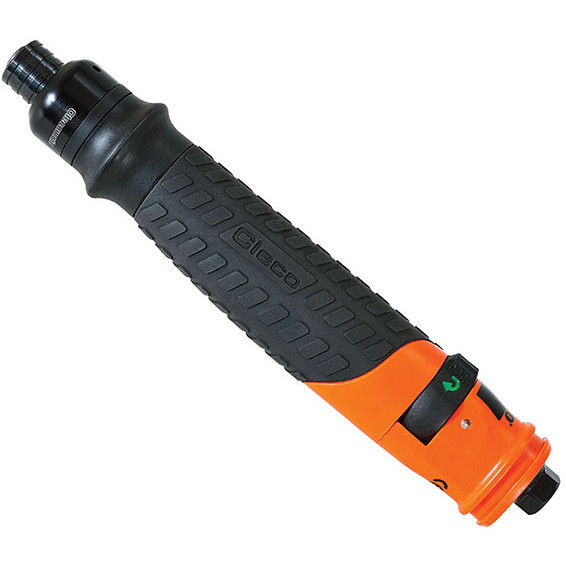

Cleco 19SPA02Q Collar Reverse Inline Pneumatic Screwdriver | 19 Series | 2,800 RPM | 0.3 - 1.6 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for repetitive fastening in assembly cells, bench stations, and production work areas, the Cleco 19SPA02Q Collar Reverse Inline Pneumatic Screwdriver combines a compact inline body with 2,800 RPM free speed for fast run-down on small screws and threaded fasteners. Its 0.3 - 1.6 ft-lbs torque range, equivalent to 0.6 - 2.1 Nm, supports controlled low-torque fastening where repeatability matters more than breakaway power. The Clecomatic clutch (a mechanical clutch system that helps repeat torque from cycle to cycle) makes this 19 Series tool well-suited for high-volume assembly, aerospace work, appliance production, and light manufacturing applications.

The 1/4" hex quick change drive accepts common insert bits for quick bit swaps, while the push-to-start inline configuration helps reduce unnecessary trigger movement during repetitive fastening. Collar reverse allows the operator to change direction at the tool body, making it practical for assembly stations where screws may need to be seated, backed out, or adjusted without changing tools.

Type: Inline Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19SPA02Q | Start Type: Push-to-Start | Reverse Type: Collar Reverse | Clutch Type: Clecomatic Clutch | Drive Type: 1/4" Hex Quick Change | Torque Range: 0.3 - 1.6 ft-lbs / 0.6 - 2.1 Nm | Free Speed: 2,800 RPM | Length: 9.1 in. | Weight: 1.41 lb / 0.64 kg | Air Consumption: 11 SCFM | Air Inlet: 1/8 in. | Min. Hose I.D.: 1/4 in. | Operating Pressure: 90 PSI

Features:

• Durable Clecomatic Clutch delivers strong torque repeatability and helps maintain a long calibration cycle in production fastening work
• Push-to-start operation activates the tool by pressing the bit into the fastener, reducing extra hand movement during repeated screwdriving cycles
• Collar reverse design allows quick directional changes for installing, removing, or adjusting fasteners without switching tools
• Inline handle shape supports straight-on fastener engagement at bench stations, fixture-mounted work areas, and compact assembly layouts
• Grip material is tested to withstand a range of industrial chemicals commonly found in manufacturing and maintenance environments
• 1/4" hex quick change drive accepts standard screwdriver bits and speeds bit replacement between fastener types
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• High-volume assembly lines for repeated installation of small screws and threaded fasteners
• Aerospace and precision manufacturing stations where controlled torque and repeatable fastening are required
• Appliance and electronics assembly for low-torque fastening into housings, brackets, covers, and components
• Automotive interior and light component assembly, where inline access and quick bit changes help keep work moving
• General manufacturing and MRO benches for controlled screw installation, adjustment, and removal with shop air

FAQs:

• Q: What does push-to-start mean on the Cleco 19SPA02Q?
  A: Push-to-start means the tool begins running when the bit is pressed into the fastener. This setup is commonly used for repetitive assembly work because the operator does not need to pull a separate trigger for each rundown.
• Q: What is the benefit of the Clecomatic clutch?
  A: The Clecomatic clutch is used to improve torque repeatability from one fastener to the next. That helps production teams keep fastening results consistent across repeated assembly cycles.
• Q: What bits fit this screwdriver?
  A: This model uses a 1/4" hex quick change drive, so it accepts compatible 1/4" hex screwdriver bits. Select bit style and length based on the fastener recess, access clearance, and fixture setup.
• Q: Can this screwdriver be used for general automotive repair?
  A: It can be used for low-torque screwdriving tasks, but it is primarily a precision assembly screwdriver rather than a repair impact tool. It should not be used for breaking loose bolts or high-torque fasteners.
• Q: What air setup is required?
  A: Cleco specifies 90 PSI for maximum rated torque. Use clean, regulated air and a properly sized 1/4" minimum hose I.D. to help the tool maintain speed and torque performance.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
