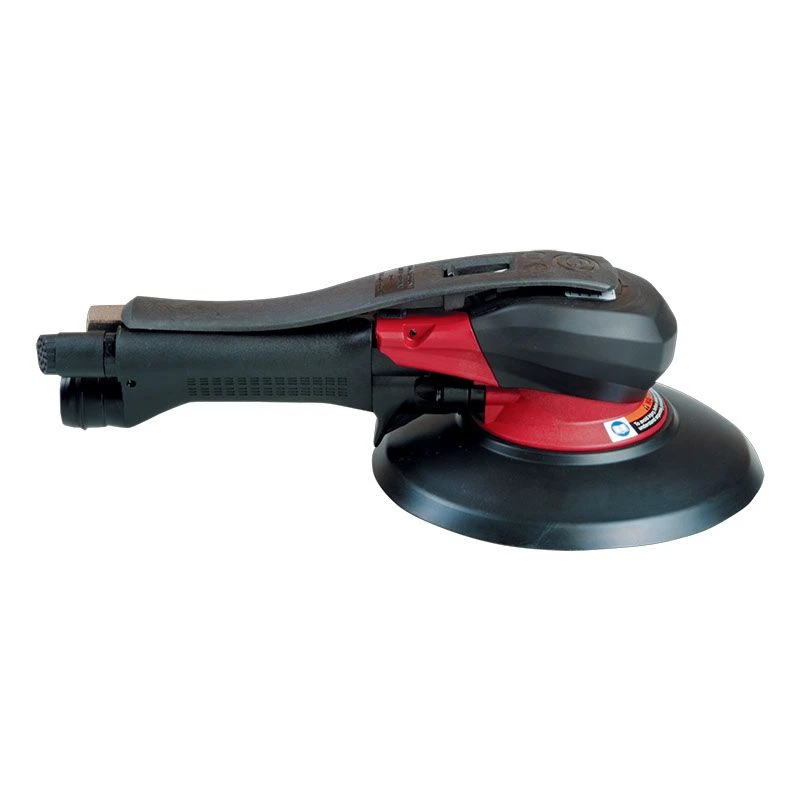

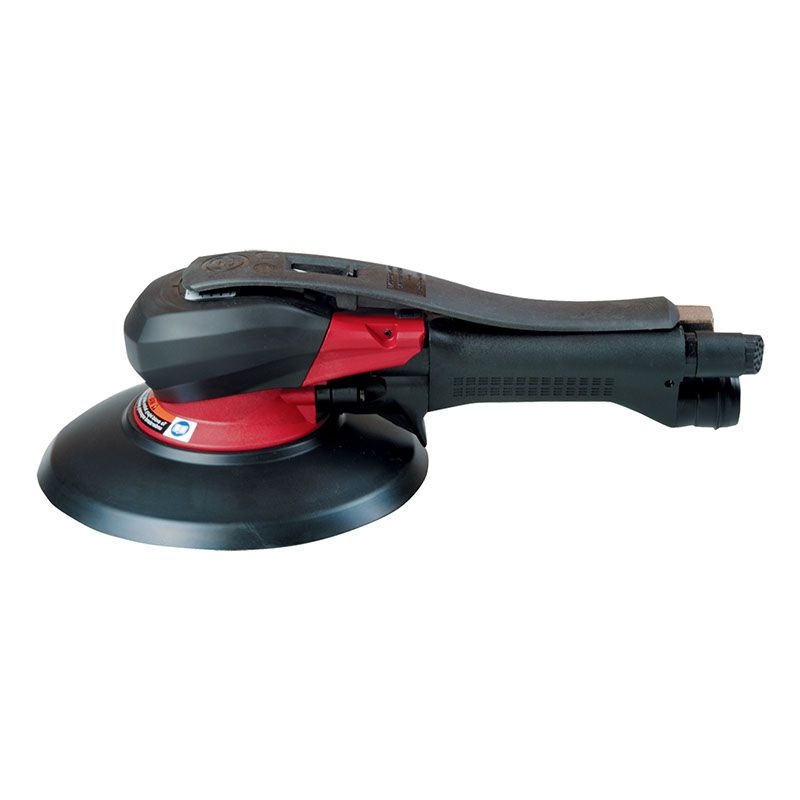

Chicago Pneumatic Random Orbital Sander | CP5314-60HCV | 12000 RPM | 6" Hook & Loop Pad | 3/8" Orbit

Built for broad circular-pad sanding, surface leveling, and dust-managed finish-prep work, the Chicago Pneumatic CP5314-60HCV pneumatic random orbital sander delivers a fast 12,000 RPM free speed with a 0.3 hp / 210 W motor for efficient abrasive motion across panels, fabricated parts, repaired surfaces, and coating-prep areas. Its 6" / 150 mm hook & loop circular pad supports quick abrasive disc changes, helping technicians move through grit progressions without peeling adhesive-backed discs from the pad.

Manufacturer product data identifies the CP5314-60HCV with a 7/16" / 11 mm orbit, which gives the abrasive a wider random orbital motion for more active surface correction than finer 3/32" and 3/16" orbit sanders. This central vacuum CP53 Series model connects to a compatible external dust extraction system, helping pull sanding debris away from the work surface during body shop, fabrication, maintenance, and production sanding tasks where wider-orbit sanding and dust control are both important.

Type: Pneumatic Random Orbital Sander | Model: CP5314-60HCV | SKU: 6151704660 | Series: CP53 | Free Speed: 12,000 RPM | Power: 0.3 hp / 210 W | Pad Size: 6" / 150 mm | Pad Type: Circular Hook & Loop | Orbit Diameter: 7/16" / 11 mm | Vacuum Type: Central vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Load: 17 CFM / 8 l/s | Air Consumption @ Free Speed: 17 CFM / 8 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 1/4" / 6 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 1.98 lb / 0.9 kg | Length: 10.04" / 255 mm | Height: 3.27" / 83 mm | Sound Pressure: 78 dB(A) | Sound Power: 89 dB(A) | Vibration: 6.5 m/s² | Vibration Uncertainty: 1.3 m/s² | Pad Holes: 0 | Starting System: Safety lever

Features:

• 0.3 hp / 210 W pneumatic motor supports sanding, finishing, and pre-polishing work on prepared surfaces.
• 12,000 RPM free speed keeps the abrasive moving quickly for coating preparation, surface leveling, and repair-area sanding.
• 6" / 150 mm circular hook & loop pad supports fast abrasive disc changes during multi-step sanding processes.
• 7/16" / 11 mm orbit provides a wider sanding action for more active surface correction than smaller-orbit finishing sanders.
• Central vacuum configuration connects to a compatible external extraction system to help manage sanding dust at the source.
• Extended body layout gives the operator additional handling area for broad-panel sanding and repeated finishing passes.
• Integrated motor silencer helps reduce operating noise in body shop, repair, and production environments.
• Lubrication-free motor helps reduce oil carryover concerns around paint preparation, sanding, and finishing work.
• Listed 2000 operating hours with low maintenance supports regular use in sanding and surface preparation workflows.

Applications:

• Autobody repair and refinishing: Sanding larger repair panels, primer, filler, and blend areas before paint, clearcoat, or polishing steps.
• Central vacuum sanding stations: Connecting to a compatible external extraction system where dust control and surface visibility matter during repeated sanding work.
• Surface leveling: Feathering repair areas, reducing surface marks, and preparing panels where a wider orbit helps increase cutting action.
• Paint and coating preparation: Preparing primed, painted, or coated surfaces where a 6" hook & loop pad supports quick abrasive changes.
• Metal fabrication: Blending surface marks, smoothing fabricated parts, and preparing components before coating or final finishing.
• Industrial maintenance and MRO: Cleaning up guards, panels, covers, housings, and repair patches during equipment refurbishment.

FAQs:

• Q: What abrasive discs fit the CP5314-60HCV?
  A: This model is specified with a 6" / 150 mm hook & loop pad. Hook & loop backing allows the abrasive disc to attach to the pad and be removed quickly when changing grits.
• Q: What does central vacuum mean on this sander?
  A: Central vacuum means the tool is made to connect to a compatible external dust extraction system. This helps pull sanding dust away from the work surface during continuous sanding work.
• Q: What does the 7/16" orbit do?
  A: Orbit diameter is the size of the pad’s random sanding motion. A 7/16" / 11 mm orbit gives the abrasive a wider motion for more active surface correction than smaller-orbit finishing sanders.
• Q: Can PSA abrasive discs be used on this model?
  A: No. This version is specified with a hook & loop pad, so use compatible 6" hook & loop abrasive discs unless the pad has been changed to a manufacturer-approved alternate pad.
• Q: What air supply does the CP5314-60HCV require?
  A: The tool is rated for 90 PSI / 6.3 bar and uses 17 CFM / 8 l/s at load. Use at least a 1/4" / 6 mm air hose and confirm the compressor can maintain airflow during continuous sanding.
