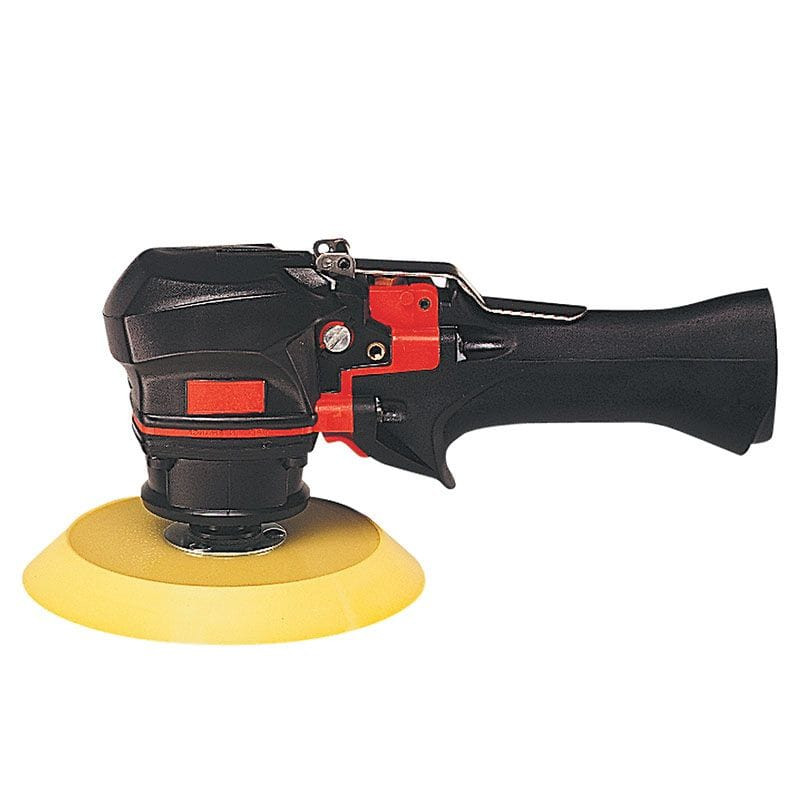

Chicago Pneumatic Random Orbital Sander | CP5303-35 | 12000 RPM | 3.5" PSA Pad | 3/32" Orbit

Built for fine circular-pad sanding, spot repair, and finish preparation, the Chicago Pneumatic CP5303-35 pneumatic random orbital sander delivers a fast 12,000 RPM free speed with a 0.3 hp / 210 W motor for controlled abrasive motion on smaller panels, contours, repair areas, and prepared surfaces. Its 3.5" / 90 mm PSA circular pad uses pressure-sensitive adhesive abrasive discs, giving technicians secure disc attachment for detail sanding and repeated finishing passes.

The 3/32" / 2.4 mm orbit creates a finer random orbital sanding pattern than larger 3/16" or 3/8" orbit models, making this CP53 Series sander useful for finish refinement, light surface preparation, primer smoothing, and pre-polishing work. This non-vacuum configuration is suited to shops that already use separate dust extraction, booth ventilation, or manual cleanup procedures. The compact palm-grip body helps keep the tool manageable on small work areas where larger 5" or 6" sanders may remove too much material or cover too much surface at once.

Type: Pneumatic Random Orbital Sander | Model: CP5303-35 | SKU: 6151702180 | Series: CP53 | Free Speed: 12,000 RPM | Power: 0.3 hp / 210 W | Pad Size: 3.5" / 90 mm | Pad Type: Circular PSA | Orbit Diameter: 3/32" / 2.4 mm | Vacuum Type: Non-vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Load: 17 CFM / 8 l/s | Air Consumption @ Free Speed: 17 CFM / 8 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 1/4" / 6 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 1.76 lb / 0.8 kg | Length: 5.00" / 127 mm | Height: 3.74" / 95 mm | Sound Pressure: 76 dB(A) | Sound Power: 87 dB(A) | Vibration: 5.6 m/s² | Vibration Uncertainty: 2.1 m/s² | Pad Holes: 0 | Starting System: Safety lever

Features:

• 0.3 hp / 210 W pneumatic motor supports efficient sanding, finishing, and pre-polishing work on smaller prepared surfaces.
• 12,000 RPM free speed keeps the abrasive moving quickly for fine surface preparation and finish refinement.
• 3.5" / 90 mm circular PSA pad provides compact abrasive contact and secure adhesive-backed disc retention.
• 3/32" / 2.4 mm orbit creates a fine sanding pattern for finish preparation, primer smoothing, and light surface correction.
• Non-vacuum configuration works well in shops using separate dust collection, booth ventilation, or manual cleanup procedures.
• Ergonomic palm-shaped soft grip helps improve control during spot sanding, edge work, and detail repair tasks.
• Integrated motor silencer helps reduce operating noise in body shop, repair, and production environments.
• Lubrication-free motor helps reduce oil carryover concerns around paint preparation, sanding, and finishing work.
• Listed 2000 operating hours with low maintenance supports regular use in sanding and surface preparation workflows.

Applications:

• Autobody repair and refinishing: Sanding spot repairs, small panels, primer, filler, and blend areas before paint or polishing steps.
• Fine finish preparation: Refining prepared surfaces where a smaller 3/32" orbit helps limit sanding marks before finishing.
• Paint and coating preparation: Preparing primed, painted, or coated surfaces where a compact PSA pad improves control.
• Metal fabrication: Smoothing smaller fabricated parts, blending surface marks, and preparing components before coating or final finishing.
• Industrial maintenance and MRO: Cleaning up covers, housings, guards, repair patches, and smaller equipment surfaces during refurbishment.
• Workshop and garage use: Detail sanding on compatible materials when paired with PSA abrasive discs and a compressor sized for the tool's airflow demand.

FAQs:

• Q: What abrasive discs fit the CP5303-35?
  A: This model uses 3.5" / 90 mm circular PSA abrasive discs. PSA stands for pressure-sensitive adhesive, meaning the abrasive disc sticks directly to the pad rather than attaching with hook & loop backing.
• Q: What is the advantage of the 3/32" orbit?
  A: A 3/32" / 2.4 mm orbit produces a finer sanding pattern than larger-orbit sanders. It is useful for finish preparation, primer smoothing, and light surface correction where aggressive material removal is not the goal.
• Q: What does non-vacuum mean on this sander?
  A: Non-vacuum means the tool does not include self-vacuum or central-vacuum dust extraction. Use separate dust collection, shop ventilation, or cleanup procedures appropriate for the material being sanded.
• Q: Is the CP5303-35 better for detail work or large panels?
  A: The 3.5" pad is better suited to spot repairs, contours, small panels, and detail sanding. For broad flat panels or faster coverage, a 5" or 6" random orbital sander may be a better fit.
• Q: What air supply does the CP5303-35 require?
  A: The tool is rated for 90 PSI / 6.3 bar and uses 17 CFM / 8 l/s at load. Use at least a 1/4" / 6 mm air hose and confirm the compressor can maintain airflow during continuous sanding.

Looking for more information about Chicago Pneumatic Orbital Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
