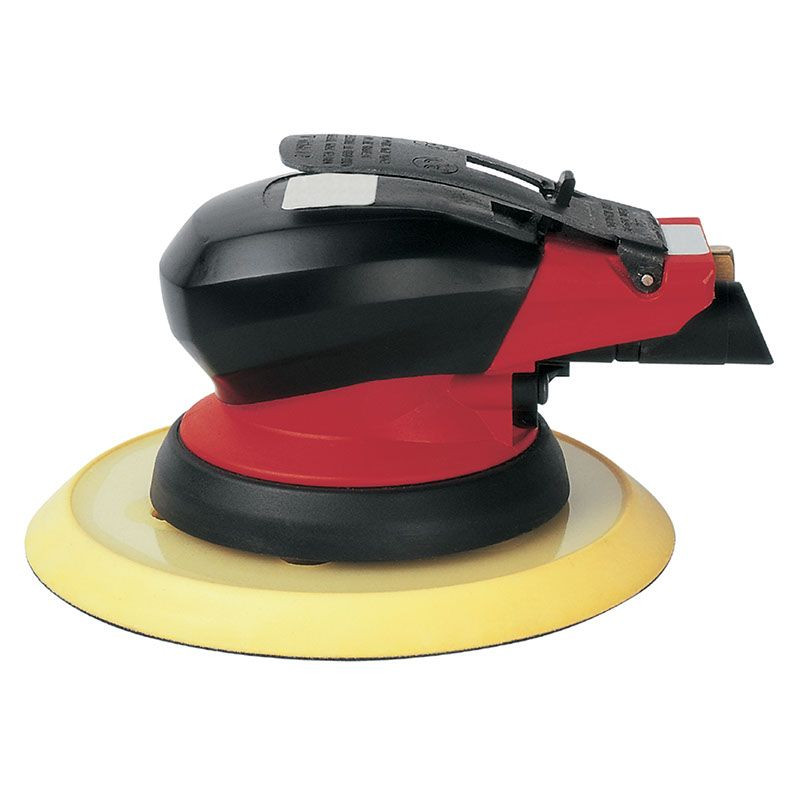

Chicago Pneumatic Random Orbital Sander | CP5306-60A | 12000 RPM | 6" PSA Pad | 3/16" Orbit

Built for broad circular-pad sanding, surface preparation, and finish-prep work, the Chicago Pneumatic CP5306-60A pneumatic random orbital sander delivers a fast 12,000 RPM free speed with a 0.3 hp / 210 W motor for controlled abrasive motion across panels, primed surfaces, fabricated parts, and repair areas. Its 6" / 150 mm PSA circular pad uses pressure-sensitive adhesive abrasive discs, giving technicians wide surface coverage and secure disc attachment during repeated sanding passes.

The 3/16" / 5 mm orbit provides a balanced random orbital sanding pattern for primer sanding, coating preparation, filler smoothing, and surface refinement before paint or polishing. This non-vacuum CP53 Series model is suited to work areas that already use booth ventilation, separate dust extraction, or manual cleanup procedures rather than tool-integrated dust collection. The 6" pad size helps cover more surface per pass than smaller 3.5" or 5" models while keeping the palm-grip tool manageable for shop use.

Type: Pneumatic Random Orbital Sander | Model: CP5306-60A | SKU: 6151703170 | Series: CP53 | Free Speed: 12,000 RPM | Power: 0.3 hp / 210 W | Pad Size: 6" / 150 mm | Pad Type: Circular PSA | Orbit Diameter: 3/16" / 5 mm | Vacuum Type: Non-vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Load: 17 CFM / 8 l/s | Air Consumption @ Free Speed: 17 CFM / 8 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 1/4" / 6 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 1.76 lb / 0.8 kg | Length: 5.00" / 127 mm | Height: 3.26" / 83 mm | Sound Pressure: 76 dB(A) | Sound Power: 87 dB(A) | Vibration: 4.3 m/s² | Vibration Uncertainty: 1.5 m/s² | Pad Holes: 0 | Starting System: Safety lever

Features:

• 0.3 hp / 210 W pneumatic motor supports sanding, finishing, and pre-polishing work on prepared surfaces.
• 12,000 RPM free speed keeps the abrasive moving quickly for coating preparation, primer sanding, and surface refinement.
• 6" / 150 mm circular PSA pad provides broad abrasive contact and secure adhesive-backed disc retention.
• 3/16" / 5 mm orbit creates a balanced sanding pattern for light material removal, filler smoothing, and finish preparation.
• Non-vacuum configuration fits shops using separate dust collection, booth ventilation, or manual cleanup procedures.
• Palm-shaped soft grip helps improve control during broad-panel sanding, edge work, and repeated finishing passes.
• Integrated motor silencer helps reduce operating noise in body shop, repair, and production environments.
• Lubrication-free motor helps reduce oil carryover concerns around paint preparation, sanding, and finishing work.
• Listed 2000 operating hours with low maintenance supports regular use in sanding and surface preparation workflows.

Applications:

• Autobody repair and refinishing: Sanding larger panels, primer, filler, and blend areas before paint, clearcoat, or polishing steps.
• Paint and coating preparation: Preparing primed, painted, or coated surfaces where a 6" PSA pad provides broad abrasive coverage.
• Metal fabrication: Blending surface marks, smoothing fabricated parts, and preparing components before coating or final finishing.
• Industrial maintenance and MRO: Cleaning up equipment covers, guards, housings, panels, and repair patches during refurbishment work.
• Vehicle service and restoration: Refinishing body sections, curved panels, and repair surfaces where a palm-style sander is easier to manage than a larger handled tool.
• Workshop and garage use: General surface sanding on compatible materials when paired with 6" PSA abrasive discs and a compressor sized for the tool’s airflow demand.

FAQs:

• Q: What abrasive discs fit the CP5306-60A?
  A: This model uses 6" / 150 mm PSA abrasive discs. PSA stands for pressure-sensitive adhesive, meaning the abrasive sticks directly to the pad rather than attaching with hook & loop backing.
• Q: What does non-vacuum mean on this sander?
  A: Non-vacuum means the tool does not include self-vacuum or central-vacuum dust extraction. Use separate dust collection, booth ventilation, or cleanup procedures appropriate for the material being sanded.
• Q: What does the 3/16" orbit do?
  A: Orbit diameter is the size of the pad’s random sanding motion. A 3/16" / 5 mm orbit provides a balanced pattern for primer sanding, coating preparation, filler smoothing, and finish refinement without being as aggressive as larger-orbit tools.
• Q: Can hook & loop abrasive discs be used on this model?
  A: No. This version is specified with a PSA pad, so use compatible adhesive-backed 6" abrasive discs unless the pad has been changed to a manufacturer-approved alternate pad.
• Q: What air supply does the CP5306-60A require?
  A: The tool is rated for 90 PSI / 6.3 bar and uses 17 CFM / 8 l/s at load. Use at least a 1/4" / 6 mm air hose and confirm the compressor can maintain airflow during continuous sanding.

Looking for more information about Chicago Pneumatic Orbital Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sandars for your assembly application, call (800) 608-5210 or email info@intlairtool.com
