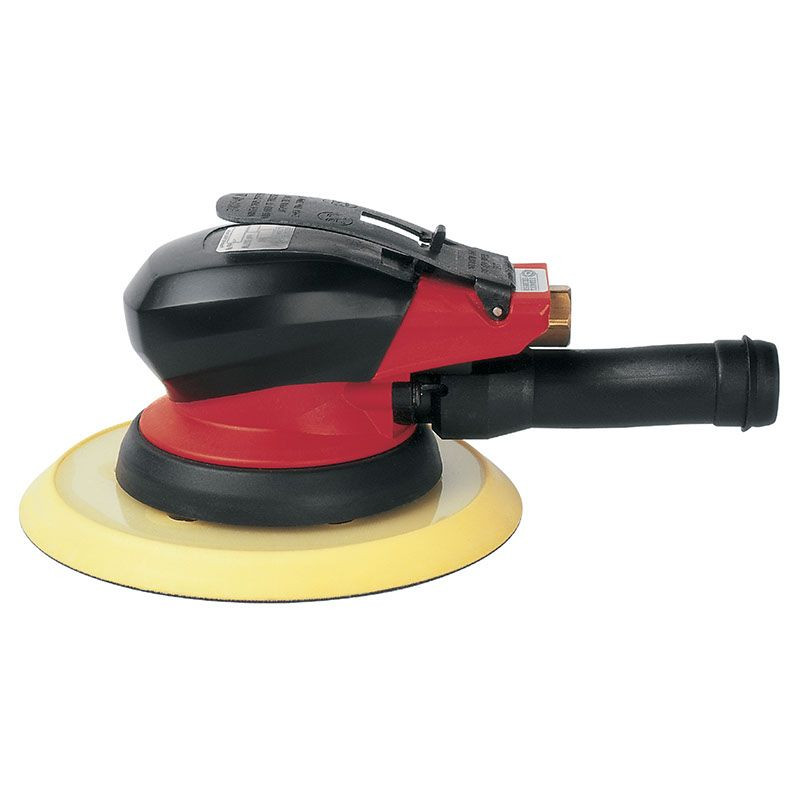

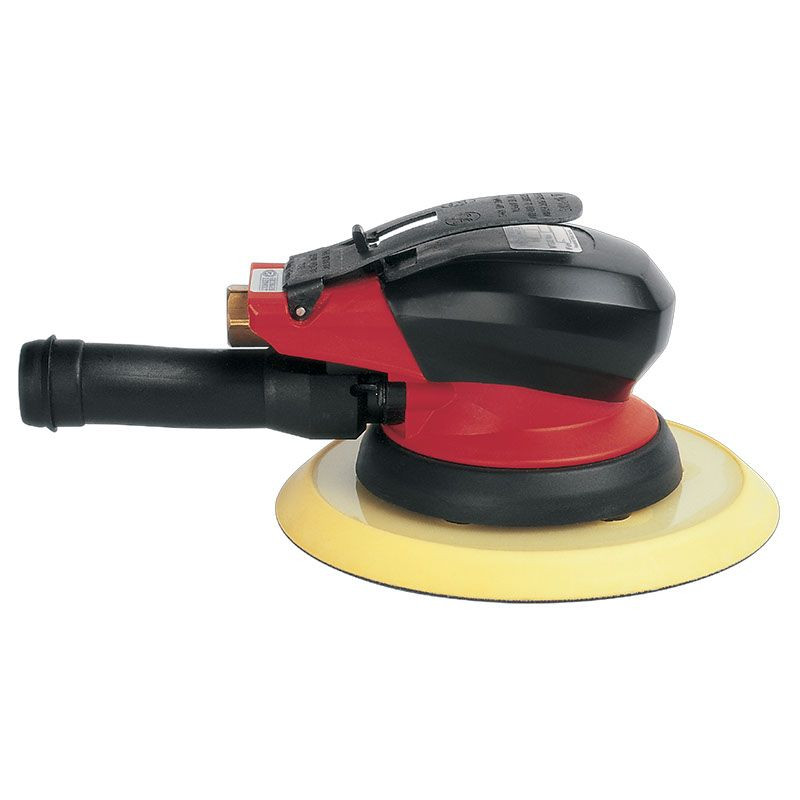

Chicago Pneumatic Random Orbital Sander | CP5303-60SV | 12000 RPM | 6" PSA Pad | 3/32" Orbit

Built for fine broad-pad sanding, finish preparation, and cleaner surface refinement, the Chicago Pneumatic CP5303-60SV pneumatic random orbital sander delivers a fast 12,000 RPM free speed with a 0.3 hp / 210 W motor for smooth abrasive motion across panels, primed surfaces, fabricated parts, and finishing areas. Its 6" / 150 mm PSA circular pad uses pressure-sensitive adhesive abrasive discs, giving technicians wide surface coverage and secure abrasive attachment during repeated sanding passes.

The 3/32" / 2.4 mm orbit creates a finer random orbital pattern than larger-orbit sanders, making this CP53 Series model useful for primer smoothing, light coating preparation, finish refinement, and pre-polishing work. This self-vacuum configuration helps draw sanding dust away from the work surface when used with compatible dust collection components, making it a practical choice for refinishing, fabrication, maintenance, and workshop sanding tasks where a finer finish pattern and broader pad coverage are both important.

Type: Pneumatic Random Orbital Sander | Model: CP5303-60SV | SKU: 6151702230 | Series: CP53 | Free Speed: 12,000 RPM | Power: 0.3 hp / 210 W | Pad Size: 6" / 150 mm | Pad Type: Circular PSA | Orbit Diameter: 3/32" / 2.4 mm | Vacuum Type: Self vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Load: 17 CFM / 8 l/s | Air Consumption @ Free Speed: 17 CFM / 8 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 1/4" / 6 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 1.76 lb / 0.8 kg | Length: 7.32" / 186 mm | Height: 3.27" / 83 mm | Sound Pressure: 85 dB(A) | Sound Power: 96 dB(A) | Vibration: 4.6 m/s² | Vibration Uncertainty: 2.9 m/s² | Pad Holes: 0 | Starting System: Safety lever

Features:

• 0.3 hp / 210 W pneumatic motor supports sanding, finishing, and pre-polishing work on prepared surfaces.
• 12,000 RPM free speed keeps the abrasive moving quickly for fine surface preparation and finish refinement.
• 6" / 150 mm circular PSA pad provides broad surface coverage with secure adhesive-backed disc retention.
• 3/32" / 2.4 mm orbit creates a fine sanding pattern for primer smoothing, light surface correction, and pre-polishing preparation.
• Self-vacuum configuration helps move sanding dust away from the work area when paired with compatible collection components.
• Palm-shaped soft grip helps improve control during panel sanding, edge work, and repeated finishing passes.
• Integrated motor silencer helps reduce operating noise in body shop, repair, and production environments.
• Lubrication-free motor helps reduce oil carryover concerns around paint preparation, sanding, and finishing work.
• Rated for 2,000 operating hours with low maintenance supports regular use in sanding and surface preparation workflows.

Applications:

• Autobody repair and refinishing: Smoothing primer, refining filler, sanding larger repair panels, and preparing blend areas before paint or clearcoat work.
• Fine finish preparation: Refining prepared surfaces where the smaller 3/32" orbit helps reduce visible sanding marks before finishing.
• Paint and coating preparation: Preparing primed, painted, or coated surfaces where a 6" PSA pad provides broad, controlled coverage.
• Metal fabrication: Blending surface marks, smoothing fabricated parts, and preparing components before coating or final finishing.
• Industrial maintenance and MRO: Cleaning up panels, covers, guards, housings, and repair patches during equipment refurbishment.
• Workshop and garage use: General finish sanding on compatible materials when paired with PSA abrasive discs and a compressor sized for the tool's airflow demand.

FAQs:

• Q: What abrasive discs fit the CP5303-60SV?
  A: This model uses 6" / 150 mm PSA abrasive discs. PSA stands for pressure-sensitive adhesive, meaning the abrasive sticks directly to the pad rather than attaching with hook & loop backing.
• Q: What does self-vacuum mean on this sander?
  A: Self-vacuum means the tool is configured to help pull sanding dust away from the work surface without requiring a central vacuum line. Use compatible dust collection components and abrasives so the collection path can work properly.
• Q: What is the advantage of the 3/32" orbit?
  A: A 3/32" / 2.4 mm orbit produces a finer sanding pattern than larger 3/16" or 3/8" orbit tools. It is useful for finish preparation, primer smoothing, and light surface correction where aggressive material removal is not the goal.
• Q: Can hook & loop abrasive discs be used on this model?
  A: No. This version is specified with a PSA pad, so use compatible adhesive-backed 6" abrasive discs unless the pad has been changed to a manufacturer-approved alternate pad.
• Q: What air supply does the CP5303-60SV require?
  A: The tool is rated for 90 PSI / 6.3 bar and uses 17 CFM / 8 l/s at load. Use at least a 1/4" / 6 mm air hose and confirm the compressor can maintain airflow during continuous sanding.

Looking for more information about Chicago Pneumatic Orbital Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
