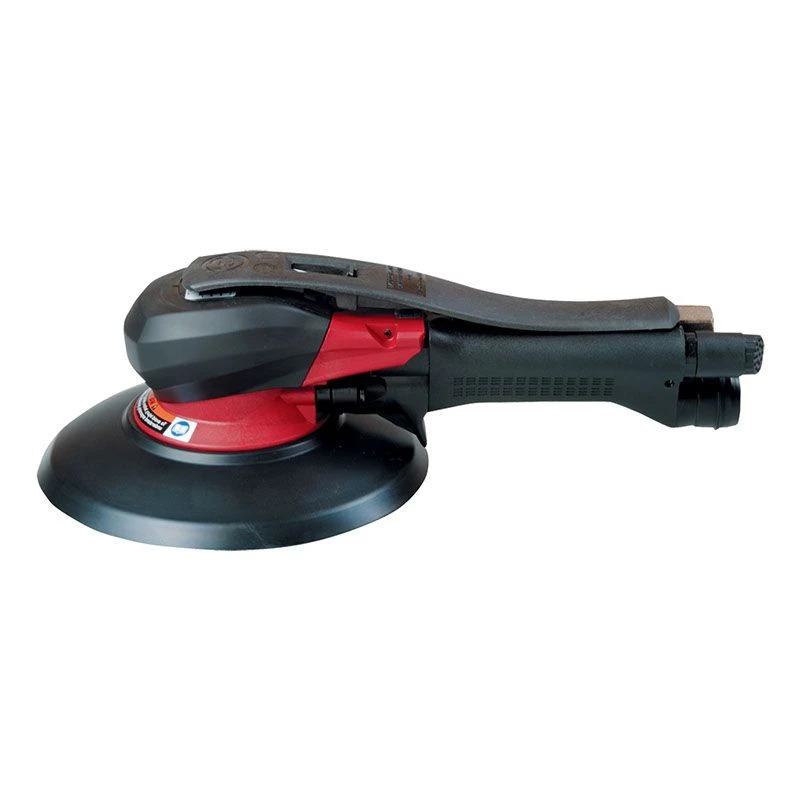

Chicago Pneumatic Random Orbital Sander | CP5306-60HCV | 12000 RPM | 6" Hook & Loop Pad | 3/16" Orbit

Built for broad circular-pad sanding, surface preparation, and dust-managed finish-prep work, the Chicago Pneumatic CP5306-60HCV pneumatic random orbital sander delivers a fast 12,000 RPM free speed with a 0.3 hp / 210 W motor for controlled abrasive motion across panels, primed surfaces, fabricated parts, and repair areas. Its 6" / 150 mm hook & loop circular pad supports faster abrasive disc changes than PSA-style pads, helping technicians move through multi-grit sanding sequences with less downtime.

The 3/16" / 5 mm orbit provides a balanced random orbital sanding pattern for primer sanding, coating preparation, filler smoothing, and surface refinement before paint or polishing. This central vacuum CP53 Series model connects to a compatible external dust extraction system, helping pull sanding debris away from the work surface during refinishing, fabrication, MRO, and shop sanding tasks where broad pad coverage and cleaner operation are both important.

Type: Pneumatic Random Orbital Sander | Model: CP5306-60HCV | SKU: 6151703620 | Series: CP53 | Free Speed: 12,000 RPM | Power: 0.3 hp / 210 W | Pad Size: 6" / 150 mm | Pad Type: Circular Hook & Loop | Orbit Diameter: 3/16" / 5 mm | Vacuum Type: Central vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Load: 17 CFM / 8 l/s | Air Consumption @ Free Speed: 17 CFM / 8 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 1/4" / 6 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 1.98 lb / 0.9 kg | Length: 10.00" / 255 mm | Height: 3.27" / 83 mm | Sound Pressure: 78 dB(A) | Sound Power: 89 dB(A) | Vibration: 4.4 m/s² | Vibration Uncertainty: 1.9 m/s² | Pad Holes: 0 | Starting System: Safety lever

Features:

• 0.3 hp / 210 W pneumatic motor supports sanding, finishing, and pre-polishing work on prepared surfaces.
• 12,000 RPM free speed keeps the abrasive moving quickly for coating preparation, primer sanding, and surface refinement.
• 6" / 150 mm circular hook & loop pad supports quick abrasive disc changes during multi-step sanding work.
• 3/16" / 5 mm orbit creates a balanced sanding pattern for light material removal, filler smoothing, and finish preparation.
• Central vacuum configuration connects to a compatible external extraction system to help manage sanding dust at the source.
• Extended body layout gives the operator additional handling area for broad-panel sanding and repeated finishing passes.
• Integrated motor silencer helps reduce operating noise in body shop, repair, and production environments.
• Lubrication-free motor helps reduce oil carryover concerns around paint preparation, sanding, and finishing work.
• Listed 2000 operating hours with low maintenance supports regular use in sanding and surface preparation workflows.

Applications:

• Autobody repair and refinishing: Sanding larger panels, primer, filler, and blend areas before paint, clearcoat, or polishing steps.
• Central vacuum sanding stations: Connecting to a compatible external extraction system where dust control and surface visibility matter during repeated sanding work.
• Paint and coating preparation: Preparing primed, painted, or coated surfaces where a 6" hook & loop pad supports quick abrasive changes.
• Metal fabrication: Blending surface marks, smoothing fabricated parts, and preparing components before coating or final finishing.
• Industrial maintenance and MRO: Cleaning up equipment covers, guards, housings, panels, and repair patches during refurbishment work.
• Workshop and garage use: General surface sanding on compatible materials when paired with 6" hook & loop abrasive discs, external dust extraction, and a compressor sized for the tool’s airflow demand.

FAQs:

• Q: What abrasive discs fit the CP5306-60HCV?
  A: This model is specified with a 6" / 150 mm hook & loop pad. Hook & loop backing allows the abrasive disc to attach to the pad and be removed quickly when changing grits.
• Q: What does central vacuum mean on this sander?
  A: Central vacuum means the tool is made to connect to a compatible external dust extraction system. This helps pull sanding dust away from the work surface during continuous sanding work.
• Q: What does the 3/16" orbit do?
  A: Orbit diameter is the size of the pad’s random sanding motion. A 3/16" / 5 mm orbit provides a balanced pattern for primer sanding, coating preparation, filler smoothing, and finish refinement without being as aggressive as larger-orbit tools.
• Q: Can PSA abrasive discs be used on this model?
  A: No. This version is specified with a hook & loop pad, so use compatible 6" hook & loop abrasive discs unless the pad has been changed to a manufacturer-approved alternate pad.
• Q: What air supply does the CP5306-60HCV require?
  A: The tool is rated for 90 PSI / 6.3 bar and uses 17 CFM / 8 l/s at load. Use at least a 1/4" / 6 mm air hose and confirm the compressor can maintain airflow during continuous sanding.
