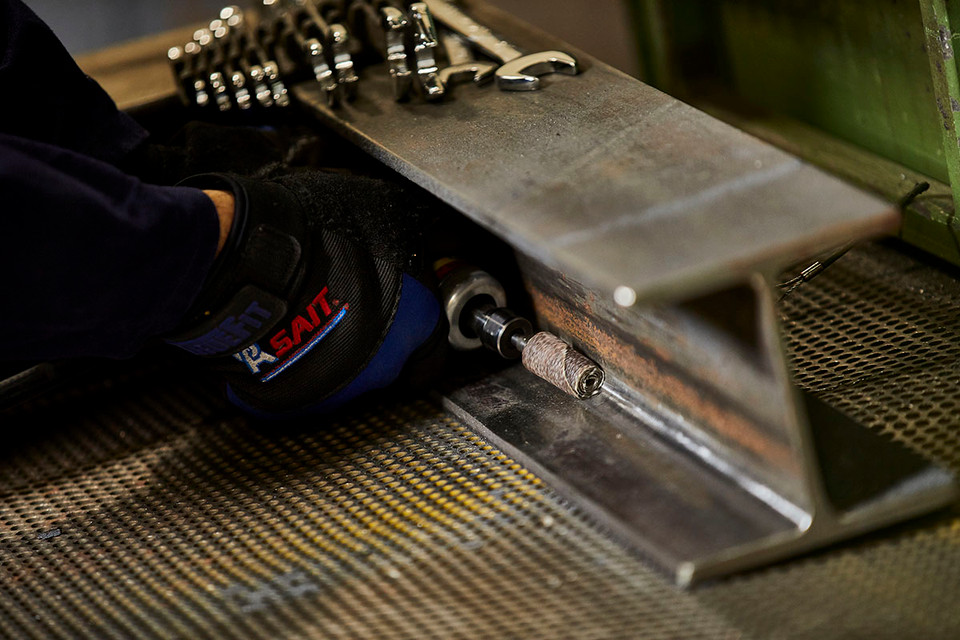

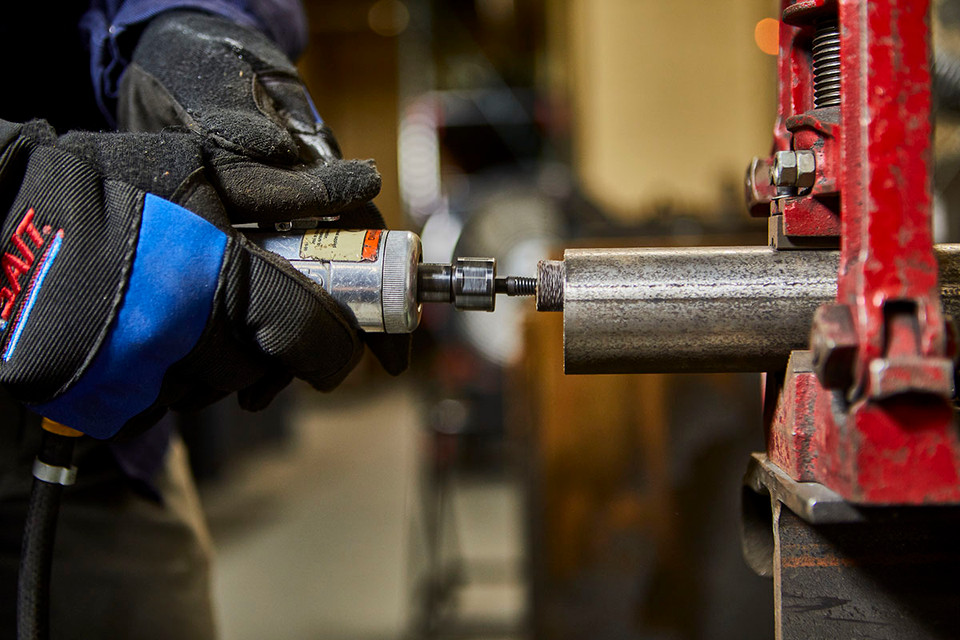

United Abrasives 38008 Straight Cartridge Roll provides controlled sanding and blending in areas difficult to access with conventional abrasive discs. Featuring a 1/4" diameter, 1" length, and 80-grit premium aluminum oxide abrasive, this cartridge roll combines effective material removal with a more refined sanding action than coarser 60-grit alternatives. Its straight cylindrical configuration helps operators work along channels, fillets, recesses, side walls, and the bottoms of dead-end holes. Suitable for ferrous metals, non-ferrous metals, stainless steel, and high-tensile steel, the 38008 is a practical option for removing minor machining burrs, blending localized surface imperfections, and preparing metal components for subsequent finishing operations.
The United Abrasives 38008 uses a multi-layer, self-dressing construction, meaning fresh cutting abrasive becomes exposed as the outer layers wear away. This helps maintain effective sanding action throughout the abrasive's usable life. Its 1/8" arbor opening is matched to the manufacturer-listed 95105 cartridge roll mandrel for installation on compatible rotary tools. With a maximum operating speed of 26,000 RPM, the roll supports high-speed deburring and flash removal when operated within the manufacturer's specified limits. Packaged in a box of 100, this configuration offers a convenient supply of consistent-size abrasives for machining departments, metal fabrication shops, toolrooms, and maintenance facilities performing repeated surface preparation tasks.
Type: Straight Cartridge Roll | Part Number: 38008 | Abrasive Material: Premium Aluminum Oxide | Diameter: 1/4" | Length: 1" | Arbor: 1/8" | Grit: 80 | Max RPM: 26,000 | Mandrel Part Number: 95105 | Quantity: 100 per Box | Material Application: Ferrous Metals, Non-Ferrous Metals, Stainless Steel, High-Tensile Steel
Features:
- Premium aluminum oxide grain provides abrasive cutting action for sanding, deburring, and blending ferrous and non-ferrous metal surfaces.
- 80-grit abrasive offers a balance between material removal and surface refinement for intermediate metal finishing operations.
- 1/4" diameter allows access to narrow channels, small openings, and recessed areas that larger abrasive accessories cannot easily reach.
- 1" straight cylindrical profile supports consistent abrasive contact along side walls, fillets, recesses, and the bottoms of dead-end holes.
- Multi-layer, self-dressing construction continuously exposes fresh cutting abrasive as successive layers wear away, helping sustain sanding performance.
- Suitable for high-speed deburring and flash removal when used with a properly rated rotary tool and compatible mandrel.
- Quick removal and installation simplify abrasive changes during multi-step machining and finishing processes.
- Supplied in boxes of 100 to support routine abrasive replenishment and inventory management in metalworking environments.
Applications:
- Precision machining and CNC workshops - Removing small machining burrs, blending tool marks, and refining localized surfaces inside machined components.
- Metal fabrication - Smoothing cut edges, preparing narrow joints, and blending surface imperfections before additional finishing operations.
- Tool and die maintenance - Sanding internal corners, small cavities, fillets, and recessed metal features with limited abrasive access.
- Stainless steel component finishing - Performing localized sanding and deburring on stainless steel and high-tensile steel workpieces.
- Industrial maintenance and repair - Cleaning and refining small metal surfaces on machinery components, fittings, and repair parts.
FAQs:
- Q: What is the difference between United Abrasives 38008 and 38007 Straight Cartridge Rolls?
A: Both cartridge rolls have a 1/4" diameter, 1" length, and 26,000 RPM maximum operating speed. The 38008 features 80-grit abrasive for intermediate sanding and surface blending, while the 38007 uses coarser 60-grit abrasive for more aggressive initial material removal. - Q: Is the United Abrasives 38008 suitable for stainless steel finishing?
A: Yes. United Abrasives identifies stainless steel and high-tensile steel among the suitable materials for this cartridge roll. For work requiring contamination control, use abrasives dedicated to stainless steel rather than products previously used on carbon steel. - Q: Which mandrel is recommended for the United Abrasives 38008?
A: The manufacturer's catalog identifies cartridge roll mandrel part number 95105. The 38008 has a 1/8" arbor opening. Verify that the selected mandrel is compatible with the power tool and appropriate for the intended operating conditions. - Q: When should I choose an 80-grit cartridge roll instead of 120 grit?
A: An 80-grit cartridge roll is useful when the work requires moderate material removal, deburring, and surface blending. A finer 120-grit cartridge roll is generally preferable when reducing sanding marks and achieving a more refined finish are the primary objectives. - Q: How many cartridge rolls come in a box, and what is their maximum rated speed?
A: United Abrasives part number 38008 is supplied in a box quantity of 100, with a maximum operating speed of 26,000 RPM. Ensure the rotary tool does not exceed the abrasive's rated speed and that the mandrel is properly secured before use.
| SKU (Qty 100) |
Base Dia | Length | Arbor | Grit | Max RPM | Mandrel Part # |
|---|---|---|---|---|---|---|
| 38001 | 3/16" | 1" | 3/32" | 80 | 26,000 | 95108 |
| 38003 | 3/16" | 1" | 3/32" | 120 | 26,000 | 95108 |
| 38007 | 1/4" | 1" | 1/8" | 60 | 26,000 | 95105 |
| 38008 | 1/4" | 1" | 1/8" | 80 | 26,000 | 95105 |
| 38010 | 1/4" | 1" | 1/8" | 120 | 26,000 | 95105 |
| 38013 | 1/4" | 1" | 1/8" | 320 | 26,000 | 95105 |
| 38014 | 1/4" | 1-1/2" | 1/8" | 60 | 26,000 | 95104 |
| 38015 | 1/4" | 1-1/2" | 1/8" | 80 | 26,000 | 95104 |
| 38017 | 1/4" | 1-1/2" | 1/8" | 120 | 26,000 | 95104 |
| 38019 | 1/4" | 1-1/2" | 1/8" | 240 | 26,000 | 95104 |
| 38040 | 3/8" | 1" | 1/8" | 60 | 26,000 | 95105 |
| 38041 | 3/8" | 1" | 1/8" | 80 | 26,000 | 95105 |
| 38043 | 3/8" | 1" | 1/8" | 120 | 26,000 | 95105 |
| 38047 | 3/8" | 1-1/2" | 1/8" | 50 | 26,000 | 95104 |
| 38048 | 3/8" | 1-1/2" | 1/8" | 60 | 26,000 | 95104 |
| 38049 | 3/8" | 1-1/2" | 1/8" | 80 | 26,000 | 95104 |
| 38051 | 3/8" | 1-1/2" | 1/8" | 120 | 26,000 | 95104 |
| 38055 | 3/8" | 2" | 1/8" | 60 | 26,000 | 95103 |
| 38056 | 3/8" | 2" | 1/8" | 80 | 26,000 | 95103 |
| 38062 | 1/2" | 1" | 1/8" | 50 | 26,000 | 95105 |
| 38063 | 1/2" | 1" | 1/8" | 60 | 26,000 | 95105 |
| 38064 | 1/2" | 1" | 1/8" | 80 | 26,000 | 95105 |
| 38066 | 1/2" | 1" | 1/8" | 120 | 26,000 | 95105 |
Looking for more information about United Abrasives Straight Cartridge Roll? For help choosing the correct United Abrasives Straight Cartridge Rolls for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Straight Cartridge Roll
- Diameter (in.)
- 1/4
- Length (in.)
- 1
- Arbor Hole (in.)
- 1/8
- Grit
- 80
- RPM
- 26000
- Mandrel Part
- 95105
- Box of
- 100
