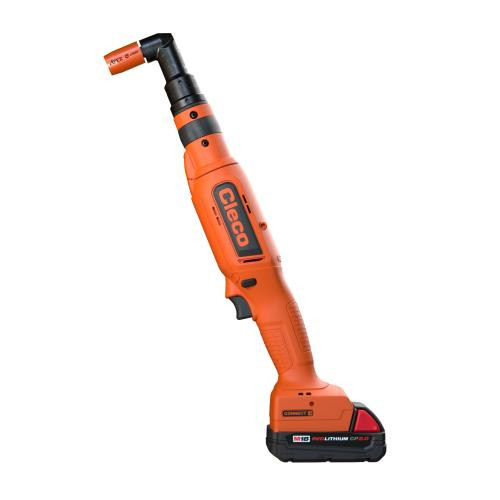

Built for controlled fastening in production assembly, the Cleco CLBAW203-NA CellClutch right angle cordless electric nutrunner combines a 6.1 - 15.5 ft-lbs torque range with a 3/8" square drive for tightening bolts, nuts, and socket-driven fasteners where repeatability matters more than breakaway power. Its 360 RPM maximum speed supports efficient rundown on assembly-line work. At the same time, the right angle head helps operators reach fasteners near brackets, housings, and other obstructions that can block inline tools.
The CLBAW203-NA is part of Cleco’s CellClutch connected cordless fastening platform, giving production teams a compact battery-powered alternative to air hoses and corded tools. WiFi and Bluetooth communication support setting adjustments, live reporting, traceability, and batch counting through the mPro controller platform. The Cmk > 1.67 accuracy rating at +/- 10% helps maintain controlled tightening results on appropriate joints, while the 15 mm side-to-center distance improves access in tight fastening locations.
Please note that this listing is for the tool only; the Cordless Battery and Charger are not included and must be purchased separately.
Type: Cordless Electric Right Angle Nutrunner | Series: CellClutch Right Angle Series | Model: CLBAW203-NA | Torque Range: 8.3 - 21 Nm / 6.1 - 15.5 ft-lbs | Speed: 36 - 360 RPM | Drive Size: 3/8" Square Drive | Weight Without Battery: 1.73 kg / 3.8 lb | Length: 493 mm / 19.4 in | Side to Center: 15.0 mm / 0.6 in | Height: 76 mm / 3.0 in | Wireless Communication: WiFi / Bluetooth
Features:
- CellClutch cordless fastening platform brings programmable control to nutrunner applications without air hoses or power cords at the workstation.
- Right angle head reaches fasteners in confined spaces where pistol-grip or inline tools may not align squarely with the joint.
- WiFi and Bluetooth v4.2 communication allow easy-to-program setting adjustments, live reporting, traceability, and batch counting through the mPro controller platform.
- Connected version supports the mPro controller platform; mPro Controller sold separately.
- Programmable rundown strategies help reduce cross-threading and fastening errors by controlling speed and fastening sequence during rundown.
- Multi-color LED worklight illuminates the work surface and provides secondary OK/NOK operator feedback.
- Single battery platform across the cordless range helps reduce battery complexity for facilities using multiple Cleco cordless tools.
Made in USA:
Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:
Batteries:
Chargers:
Applications:
- Production assembly: Controlled tightening of socket-driven fasteners where torque repeatability, batch count tracking, and fastening traceability are required.
- Automotive and transportation manufacturing: Assembly work around brackets, frames, housings, and subassemblies where a right angle head improves tool access.
- Aerospace and precision assembly: Fastening applications that require programmable rundown behavior and documented OK/NOK feedback.
- Appliance and equipment assembly: Repeated bolt and nut tightening on production lines where cordless mobility can reduce hose and cable management issues.
- Maintenance and tool crib standardization: Supporting facilities that already use Cleco CellClutch tools and want a 20 Nm-class right angle model for controlled fastening tasks.
FAQs:
- Q: What is the torque range of the CLBAW203-NA?
A: The CLBAW203-NA has a torque range of 8.3 - 21 Nm, or 6.1 - 15.5 ft-lbs. This range is intended for controlled assembly fastening, not high-torque breakaway work. - Q: What does “right angle nutrunner” mean?
A: A right angle nutrunner has a 90-degree output head that helps the operator access fasteners near walls, brackets, housings, or other obstructions. This makes it useful when a straight inline tool cannot reach the joint squarely. - Q: Does the CLBAW203-NA connect to Cleco’s mPro controller platform?
A: Yes. The CLBAW203-NA is the connected version and supports WiFi and Bluetooth communication for setting adjustments, live reporting, traceability, and batch counting through the mPro controller platform. The mPro Controller is sold separately. - Q: What drive size does this nutrunner use?
A: This model uses a 3/8" square drive, so it accepts compatible 3/8" drive sockets matched to the fastener size and application torque requirements. - Q: Is this tool supplied with a battery and charger?
A: The manufacturer data reviewed lists tool weight without battery and provides battery weight references, but it does not clearly confirm whether a battery or charger is included with this SKU. Please verify kit contents before publishing or ordering.
| SKU | Torque Range | Free Speed (rpm) | Weight | ||||
|---|---|---|---|---|---|---|---|
| Min Nm | Max Nm | Min Ft Lb | Max Ft Lb | Lb | Kg | ||
| CLBAW203-CN | |||||||
| CLBAW303-CN | |||||||
| CLBAW653-00 | 15.9 | 11.7 | 47.9 | 115 r/min | 4.3 | 2.0 | |
| CLBAW083-00 | 2.2 | 8 | 1.6 | 5.9 | 915 r/min | 3.3 | 1.5 |
| CLBAW083-CN | 2.2 | 8 | 1.6 | 5.9 | 915 r/min | 3.3 | 1.5 |
| CLBAW083-EU | 2.2 | 8 | 1.6 | 5.9 | 915 r/min | 3.3 | 1.5 |
| CLBAW083-NA | 2.2 | 8 | 1.6 | 5.9 | 915 r/min | 3.3 | 1.5 |
| CLBAW123-00 | 3.3 | 12 | 2.4 | 8.8 | 650 r/min | 3.3 | 1.5 |
| CLBAW123-CN | 3.3 | 12 | 2.4 | 8.8 | 650 r/min | 3.3 | 1.5 |
| CLBAW123-EU | 3.3 | 12 | 2.4 | 8.8 | 650 r/min | 3.3 | 1.5 |
| CLBAW123-NA | 3.3 | 12 | 2.4 | 8.8 | 650 r/min | 3.3 | 1.5 |
| CLBAW203-00 | 8.3 | 21 | 6.1 | 15.5 | 360 r/min | 3.9 | 1.8 |
| CLBAW203-EU | 8.3 | 21 | 6.1 | 15.5 | 360 r/min | 3.9 | 1.8 |
| CLBAW203-NA | 8.3 | 21 | 6.1 | 15.5 | 360 r/min | 3.9 | 1.8 |
| CLBAW303-00 | 8.3 | 30 | 6.1 | 22.1 | 255 r/min | 3.9 | 1.8 |
| CLBAW303-EU | 8.3 | 30 | 6.1 | 22.1 | 255 r/min | 3.9 | 1.8 |
| CLBAW303-NA | 8.3 | 30 | 6.1 | 22.1 | 255 r/min | 3.9 | 1.8 |
| CLBAW403-00 | 15.1 | 41 | 11.1 | 30.2 | 185 r/min | 4.1 | 1.9 |
| CLBAW403-CN | 15.1 | 41 | 11.1 | 30.2 | 185 r/min | 4.1 | 1.9 |
| CLBAW403-EU | 15.1 | 41 | 11.1 | 30.2 | 185 r/min | 4.1 | 1.9 |
| CLBAW403-NA | 15.1 | 41 | 11.1 | 30.2 | 185 r/min | 4.1 | 1.9 |
| CLBAW653-CN | 15.9 | 65 | 11.7 | 47.9 | 115 r/min | 4.3 | 2 |
| CLBAW653-EU | 15.9 | 65 | 11.7 | 47.9 | 115 r/min | 4.3 | 2 |
| CLBAW653-NA | 15.9 | 65 | 11.7 | 47.9 | 115 r/min | 4.3 | 2 |
Looking for more information about Cleco Nutrunner? Click here to view the Catalog
Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
