Cleco CLBAW123-NA CellClutch Right Angle Cordless Electric Nutrunner | 650 RPM | 2.4 - 8.8 (ft-lbs) Torque Range | 3/8" Square Drive

For controlled fastening in compact assembly areas, the Cleco CLBAW123-NA CellClutch Right Angle Cordless Electric Nutrunner gives production teams a connected, low-torque fastening tool with a 2.4 - 8.8 ft-lbs torque range, 650 RPM maximum speed, and 3/8" square drive. This model sits one step above the 8 Nm angle tool, offering greater torque capacity while maintaining the same compact right-angle format for brackets, access covers, appliance hardware, light equipment panels, and smaller bolted joints. The right angle head helps reach fasteners inside housings, frames, and fixtures where straight or pistol tools can be difficult to position.

The CLBAW123-NA is part of Cleco’s connected CellClutch lineup. CellClutch uses a preset clutch shut-off system that stops tightening rotation when the selected torque is reached, helping reduce over-torque damage and fastening variation. The “W” connected configuration adds WiFi and Bluetooth communication for setting adjustments, live reporting, traceability, and batch counting through the mPro controller platform. As a North America model, the CLBAW123-NA should be ordered for use in the NA region to avoid wireless connectivity or compliance issues.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included and must be purchased separately.

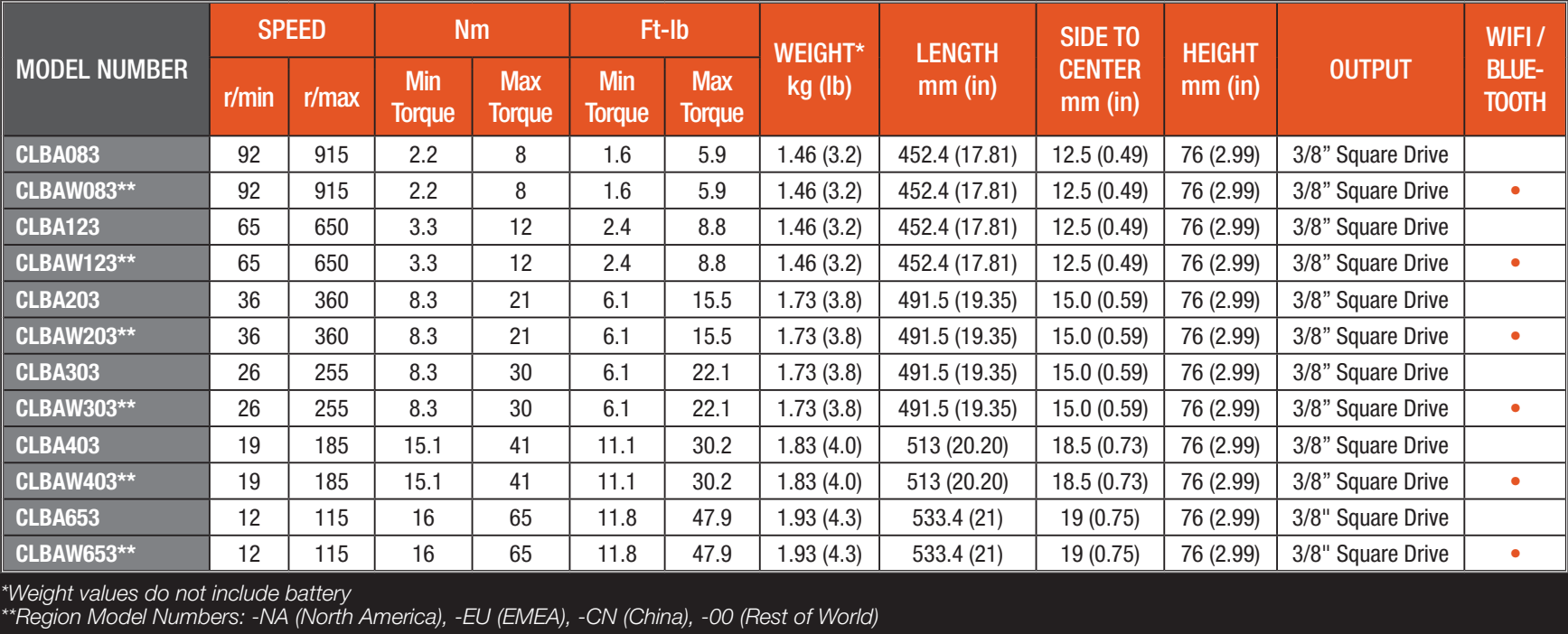

Type: Cordless Electric Right Angle Nutrunner | Series: CellClutch Right Angle Series | Model: CLBAW123-NA | Torque Range: 3.3 - 12 Nm / 2.4 - 8.8 ft-lbs | Speed Range: 65 - 650 RPM | Output Drive: 3/8" Square Drive | Weight Without Battery: 1.46 kg / 3.2 lb | Length: 453 mm / 17.8" | Side to Center: 12.5 mm / 0.5" | Height: 76 mm / 3.0" | Wireless Communication: WiFi 2.4 GHz / 5 GHz and Bluetooth v4.2

Features:

• Preset torque control helps operators complete controlled fastening work with reduced risk of over-torque damage.
• Programmable speed settings allow rundown behavior to be matched to the joint, fastener size, and assembly strategy.
• WiFi 2.4 GHz / 5 GHz and Bluetooth v4.2 wireless communication support live reporting, traceability, batch counting, and setting changes through the mPro controller platform.
• Operator feedback lights provide OK / NOK fastening status so operators can quickly identify completed or rejected rundowns.
• Built-in LED worklight improves visibility at the fastener location, especially inside fixtures, equipment frames, and recessed assemblies.
• Right angle output head improves access where pistol-style tools may not align with the fastener.
• Single battery platform across the Cleco cordless range helps reduce battery management complexity in plants running multiple CellClutch tools.
• CellClutch software is included with tool purchase to help support tool setup and programming without a separate software charge.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive assembly lines fastening brackets, covers, trim supports, light structural hardware, and secondary bolted joints that require traceable torque control.
• Large appliance manufacturing for panels, frames, motor mounts, hinge hardware, and internal components where repeatable low-torque fastening is required.
• Heavy truck and trailer production completing controlled rundown on access panels, wire harness supports, light brackets, and small chassis-related components.
• Agriculture and lawn equipment assembly where the right angle head helps reach bolts tucked inside guards, housings, and frame-mounted subassemblies.
• Industrial production cells replacing pneumatic clutch tools with a cordless connected nutrunner for batch counting, OK / NOK feedback, and cleaner workstations.

FAQs:

• Q: What type of fasteners is the CLBAW123-NA best suited for?
  A: This model is intended for light-torque production fastening from 3.3 - 12 Nm, or 2.4 - 8.8 ft-lbs. It is suited to small bolts and controlled assembly joints, not high-torque structural fastening or wheel service.
• Q: What does the “W” in CLBAW123-NA mean?
  A: The “W” identifies the connected version of the CellClutch tool. Connected models include WiFi and Bluetooth communication for traceability, live reporting, batch counting, and tool setting adjustments through the mPro controller platform.
• Q: Is the mPro controller included with this nutrunner?
  A: No. Cleco notes that the mPro controller platform is sold separately for connected CellClutch tool communication and reporting.
• Q: How is this model different from the CLBAW083-NA?
  A: The CLBAW123-NA provides a higher torque range, 3.3 - 12 Nm versus 2.2 - 8 Nm on the CLBAW083-NA, but runs at a lower maximum speed of 650 RPM. Choose this model when the application needs more torque capacity and does not require the faster 915 RPM speed of the lower-torque version.
• Q: Are batteries and chargers included?
  A: The available source data confirms cordless battery platform compatibility but does not confirm that a battery or charger is included with this SKU. Verify kit contents before ordering or publishing the final product page.
