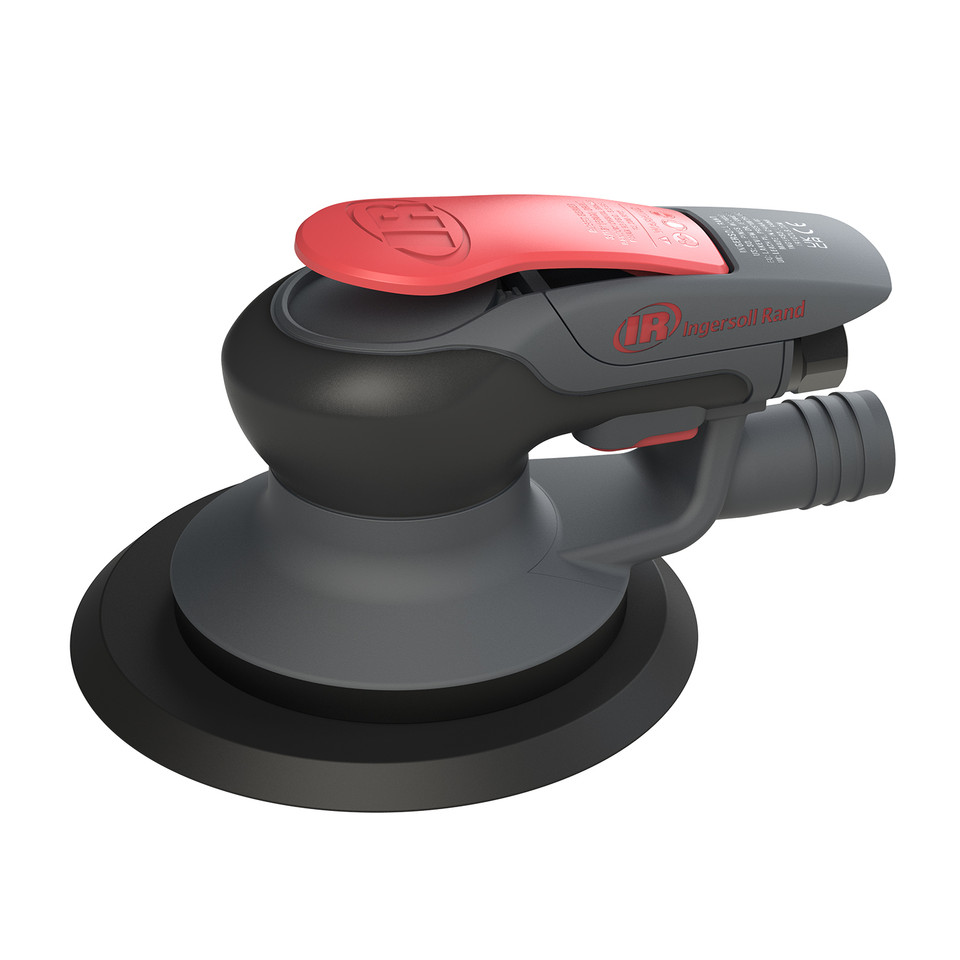

Built for fine sanding on larger surfaces where quick abrasive changes and dust-control configuration matter, the Ingersoll Rand R036C-S2-HL Premium Random Orbital Sander combines a 6" hook-and-loop pad with a 3/32" orbit for controlled surface preparation. Random orbital sanding action the pad moves in small overlapping motions instead of one fixed circular path helps reduce visible swirl patterns, while the fine 3/32" orbit supports finish-sensitive work on wood, composites, fiberglass, sheet metal, and similar shop materials.
The R036C-S2-HL runs at 13,000 RPM and uses a 0.3 HP motor to support productive sanding during primer prep, refinishing, woodworking, composite finishing, and light fabrication work. Its 6" pad size covers more area per pass than 5" models, making it useful for panels, doors, hoods, tabletops, and broader workpieces. This Premium Random Orbital Sander is supplied in a self-generating vacuum configuration and uses a hook-and-loop pad for compatible abrasive discs that can be changed quickly during multi-step sanding.
Type: Random Orbital Sander | Series: Premium Random Orbital Sander | Model: R036C-S2-HL | Pad Size: 6" / 152 mm | Pad Style: Hook & Loop | Orbit Diameter: 3/32" / 2.5 mm | Max Free Speed: 13,000 RPM | Rated Power: 0.3 HP / 0.22 kW | Vacuum Configuration: Self-Generating | Weight: 1.8 lb / 0.82 kg | Length: 6.69" / 170 mm | Vibration: 3.0 m/s² | Vibration Uncertainty K: 1.0 m/s² | Sound Pressure: 82.3 dB(A) | Sound Power: 93.3 dB(A)
Features:
- 0.3 HP motor provides sanding power for finish preparation, repair work, and general surface conditioning.
- 13,000 RPM free speed supports fast sanding action across wood, composites, fiberglass, sheet metal, and similar materials.
- 3/32" orbit helps produce a fine, swirl-free finish when surface quality is more important than aggressive stock removal.
- 6" hook-and-loop pad accepts compatible hook-and-loop abrasive discs and provides broader coverage per pass than 5" models.
- Self-generating vacuum configuration supports dust-collection setups for particle removal during sanding.
- Extended handle provides additional support and hinges up for access to the air inlet.
- Recessed paddle helps avoid pinch points, while the tucked-away regulator allows quick changes during use.
- Contoured housing and ultimate comfort grip help the tool fit the user’s hands comfortably during extended sanding periods.
Applications:
- Autobody and refinishing: Sanding larger panels, smoothing primer, feathering repaired areas, and preparing surfaces before paint.
- Woodworking and cabinet shops: Fine sanding on doors, cabinet panels, tabletops, furniture parts, and broad wood surfaces using a 6" hook-and-loop abrasive format.
- Composite and fiberglass work: Preparing molded parts, refining fiberglass panels, and finishing composite surfaces before coating.
- Metalworking and fabrication: Light surface cleanup, sheet metal finishing, and preparation of parts before paint, primer, or protective coating.
- Industrial maintenance and MRO: Repair, refurbishment, and surface-prep tasks where 6" coverage, quick abrasive changes, and self-generating vacuum operation are useful.
FAQs:
- Q: What is the R036C-S2-HL best used for?
A: The R036C-S2-HL is suited for fine sanding and finish preparation on larger work areas. Its 6" pad covers more surface per pass than a 5" model, while the 3/32" orbit helps produce a finer scratch pattern. - Q: What is the difference between the R036C-S2-HL and R036C-S2?
A: Both models use a 6" pad diameter, 3/32" orbit, 13,000 RPM free speed, 0.3 HP motor, self-generating vacuum configuration, 1.8 lb weight, 6.69" length, and 3.0 m/s² vibration rating. The R036C-S2-HL uses a hook-and-loop pad, while the R036C-S2 uses a vinyl pad. - Q: What does self-generating mean on this sander?
A: The manufacturer identifies this model as the self-generating version in the Premium Random Orbital Sander family. Confirm required dust-collection accessories before publishing or ordering, since the flyer does not list included hose, bag, or collection components. - Q: When should I choose a 3/32" orbit?
A: Choose a 3/32" orbit when finish quality is the priority. The smaller sanding motion helps minimize visible swirl marks and supports fine finishing, primer prep, and finish-sensitive surface work. - Q: What abrasive discs fit this model?
A: Use compatible 6" hook-and-loop abrasive discs matched to the material and sanding step. Confirm the abrasive backing style, grit, and speed rating before use.
| SKU | Rated Power hp W (kW) |
Max Free Speed (rpm) |
Orbit Diameter in(mm) |
Pad Diameter or Size in(mm) |
Pad Style |
Vacuum Ready |
Weight lbs (kg) |
Length in(mm) |
Vibration m/s2 (uncertainty K) |
Sound Level dB(A) (EN ISO 15744) † Pressure (LP) |
Sound Level dB(A) (EN ISO 15744) ‡ Power (LW) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R035C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-C3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-S3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-C3-HL | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
| R035C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-S3-HL | 0.3 (0.22) | 13000 | 5/16(8) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
Looking for more information about the Ingersoll Rand Premium Random Orbital Sander? For help choosing the correct Ingersoll Rand Premium Random Orbital Sanders for your application, please call (800) 608-5210 or email info@intlairtool.com
