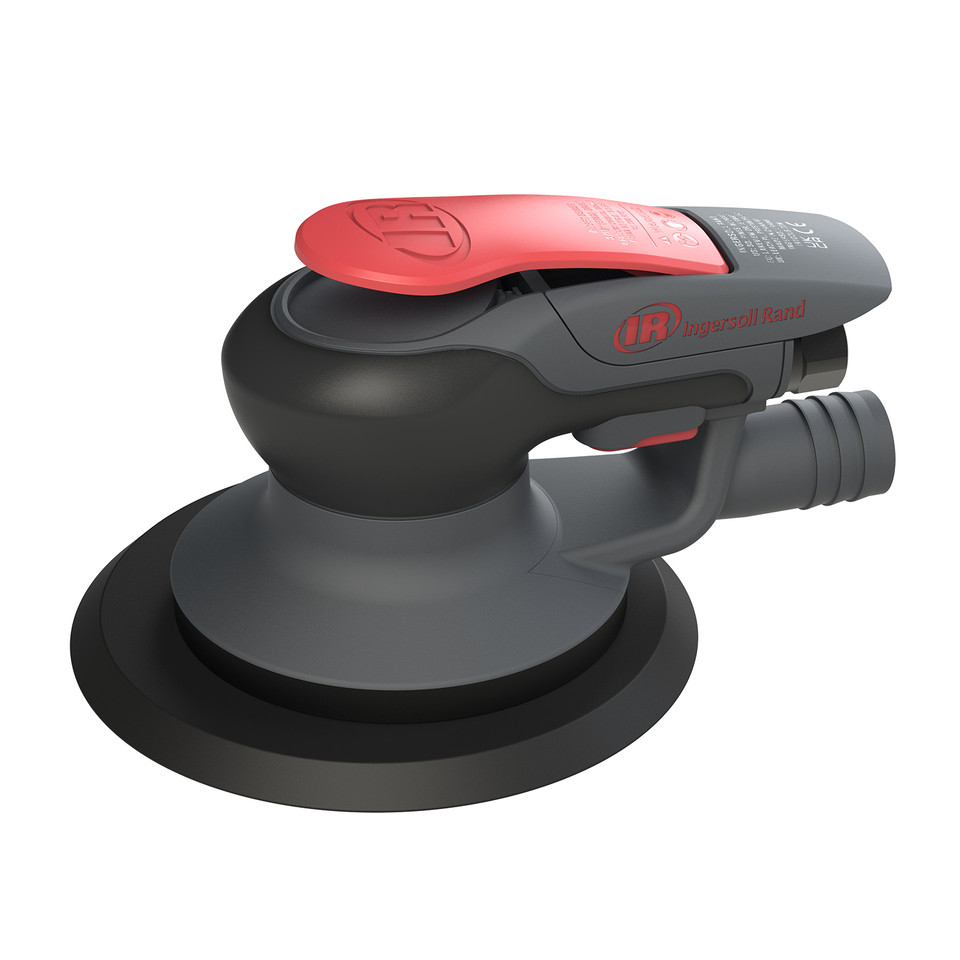

Built for larger sanding surfaces where faster coverage and dust control matter, the Ingersoll Rand R036C-S1 Premium Random Orbital Sander pairs a 6" vinyl pad with a 3/16" orbit for surface preparation, sanding, and finishing work. Random orbital sanding action the pad moves in small overlapping motions instead of one fixed circular path helps reduce visible swirl patterns, while the 3/16" orbit provides a useful balance between material removal and finish control.
The R036C-S1 uses a 0.3 HP motor and 13,000 RPM free speed to support productive sanding across broad panels and shop workpieces. Its 6" pad size covers more area per pass than 5" models, making it useful when speed and surface coverage are priorities. This model is supplied in a self-generating vacuum configuration, identifying it as a dust-control version within the Premium Random Orbital Sander family. Manufacturer-listed 3.9 m/s² vibration and 80.9 dB(A) sound pressure give buyers useful comparison data when evaluating tool handling and workplace exposure.
Type: Random Orbital Sander | Series: Premium Random Orbital Sander | Model: R036C-S1 | Pad Size: 6" / 152 mm | Pad Style: Vinyl | Orbit Diameter: 3/16" / 5 mm | Max Free Speed: 13,000 RPM | Rated Power: 0.3 HP / 0.22 kW | Vacuum Configuration: Self-Generating | Weight: 1.9 lb / 0.86 kg | Length: 6.69" / 170 mm | Vibration: 3.9 m/s² | Vibration Uncertainty K: 1.5 m/s² | Sound Pressure: 80.9 dB(A) | Sound Power: 91.9 dB(A)
Features:
- 0.3 HP motor provides the power needed for sanding and finishing jobs.
- 13,000 RPM free speed supports fast sanding action during surface preparation work.
- 3/16" orbit delivers a balanced sanding pattern for material removal, primer prep, feathering, and general surface conditioning.
- 6" vinyl pad provides broader coverage per pass than 5" pad models for larger panels and flat surfaces.
- Self-generating vacuum configuration supports dust-collection setups for particle removal during sanding.
- Extended handle provides additional support and hinges up for access to the air inlet.
- Recessed paddle helps avoid pinch points, while the tucked-away regulator allows quick changes during use.
- Contoured housing and ultimate comfort grip help the tool fit the user’s hands comfortably during extended sanding periods.
Applications:
- Autobody and refinishing: Feathering repaired areas, sanding primer, preparing larger panels, and working surfaces before paint.
- Woodworking and cabinet shops: Sanding doors, cabinet panels, furniture parts, tabletops, and other broad workpieces using a 6" abrasive format.
- Composite and fiberglass work: Preparing molded parts, smoothing repaired surfaces, and sanding components before coating or finishing.
- Metalworking and fabrication: Light surface cleanup, sheet metal finishing, and preparation of parts before primer, paint, or protective coating.
- Industrial maintenance and MRO: Refurbishment, repair, and coating-prep tasks where 6" pad coverage and self-generating vacuum operation help manage repeated sanding work.
FAQs:
- Q: What is the R036C-S1 best used for?
A: The R036C-S1 is suited for general-purpose sanding, surface preparation, primer prep, feathering, and finishing on larger work areas. Its 6" pad covers more surface per pass than a 5" model, while the 3/16" orbit provides a balanced removal and finishing pattern. - Q: What is the difference between the R036C-S1 and R036C-C1?
A: Both models use a 6" vinyl pad, 3/16" orbit, 13,000 RPM free speed, 0.3 HP motor, 1.9 lb listed weight, 6.69" length, 3.9 m/s² vibration, and 80.9 dB(A) sound pressure. The R036C-S1 is the self-generating version, while the R036C-C1 is listed as vacuum ready. - Q: What does self-generating mean on this sander?
A: The manufacturer identifies this model as the self-generating version in the Premium Random Orbital Sander family. Confirm required dust-collection accessories before publishing or ordering, since the flyer does not list included hose, bag, or collection components. - Q: When should I choose a 3/16" orbit instead of a 3/32" orbit?
A: Choose a 3/16" orbit when you want a stronger balance of material removal and finish prep. A 3/32" orbit is better when the finest scratch pattern is the priority. - Q: Does this model use hook-and-loop abrasive discs?
A: No. The R036C-S1 is listed with a vinyl pad. For a 6", 3/16" orbit Premium model with a hook-and-loop pad and self-generating vacuum configuration, review the R036C-S1-HL version.
| SKU | Rated Power hp W (kW) |
Max Free Speed (rpm) |
Orbit Diameter in(mm) |
Pad Diameter or Size in(mm) |
Pad Style |
Vacuum Ready |
Weight lbs (kg) |
Length in(mm) |
Vibration m/s2 (uncertainty K) |
Sound Level dB(A) (EN ISO 15744) † Pressure (LP) |
Sound Level dB(A) (EN ISO 15744) ‡ Power (LW) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R035C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-C3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-S3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-C3-HL | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
| R035C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-S3-HL | 0.3 (0.22) | 13000 | 5/16(8) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
Looking for more information about the Ingersoll Rand Premium Random Orbital Sander? For help choosing the correct Ingersoll Rand Premium Random Orbital Sanders for your application, please call (800) 608-5210 or email info@intlairtool.com
