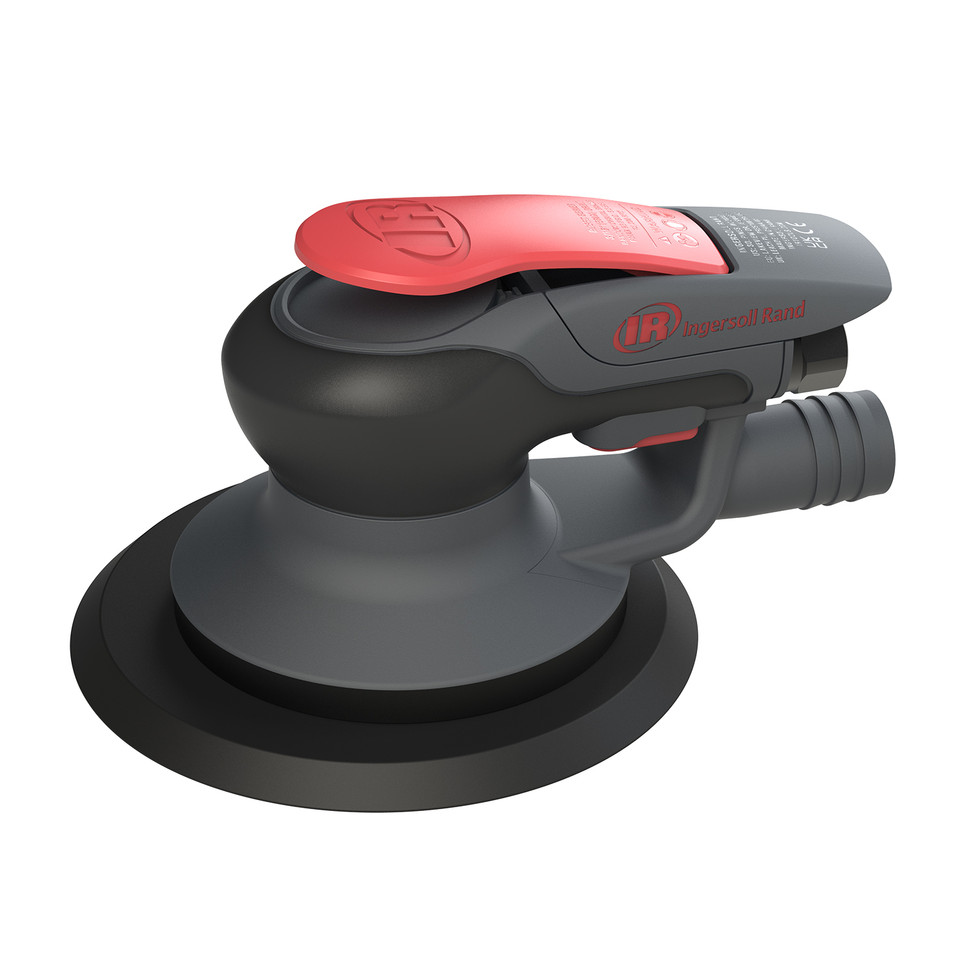

Built for aggressive sanding on larger panels where quick abrasive changes and external dust extraction are useful, the Ingersoll Rand R036C-C3-HL Premium Random Orbital Sander combines a 6" hook-and-loop pad with a 5/16" orbit for surface preparation on wood, composites, fiberglass, sheet metal, and similar shop materials. Random orbital sanding action the pad moves in overlapping orbits instead of one fixed circular path helps reduce directional sanding marks, while the larger 5/16" orbit removes material faster than 3/32" and 3/16" orbit models.
Powered by a 0.3 HP motor with 13,000 RPM free speed, the R036C-C3-HL supports productive sanding during primer leveling, coating prep, panel work, and general stock removal. Its 6" pad size covers broad surfaces efficiently, while the hook-and-loop pad supports faster abrasive disc changes during multi-step sanding. This Premium Random Orbital Sander is listed as vacuum ready, meaning it is intended to connect to a compatible external dust extraction system for particle removal during sanding.
Type: Random Orbital Sander | Series: Premium Random Orbital Sander | Model: R036C-C3-HL | Pad Size: 6" / 152 mm | Pad Style: Hook & Loop | Orbit Diameter: 5/16" / 8 mm | Max Free Speed: 13,000 RPM | Rated Power: 0.3 HP / 0.22 kW | Vacuum Configuration: Vacuum Ready | Weight: 1.9 lb / 0.86 kg | Length: 6.69" / 170 mm | Vibration: 4.6 m/s² | Vibration Uncertainty K: 1.5 m/s² | Sound Pressure: 82.3 dB(A) | Sound Power: 93.3 dB(A)
Features:
- 0.3 HP motor provides sanding power for coating prep, primer leveling, surface conditioning, and general material removal tasks.
- 13,000 RPM free speed supports fast sanding action across wood, composites, fiberglass, sheet metal, and similar materials.
- 5/16" orbit delivers the most aggressive orbit option in this Premium Random Orbital Sander family for faster removal and surface leveling.
- 6" hook-and-loop pad accepts compatible hook-and-loop abrasive discs and provides broad coverage per pass on larger work surfaces.
- Vacuum-ready configuration supports connection to compatible dust extraction systems for particle removal during sanding.
- Extended handle provides additional support and hinges up for access to the air inlet.
- Recessed paddle helps avoid pinch points, while the tucked-away regulator allows quick changes during use.
- Contoured housing and ultimate comfort grip help the tool fit the user’s hands comfortably during extended sanding periods.
Applications:
- Autobody and refinishing: Sanding larger panels, leveling primer, preparing repaired areas, and removing material before finer finishing steps.
- Woodworking and cabinet shops: Sanding doors, tabletops, cabinet panels, furniture parts, and broad wood surfaces using a 6" hook-and-loop abrasive format.
- Composite and fiberglass work: Leveling molded parts, smoothing fiberglass panels, and preparing composite surfaces before coating or paint.
- Metalworking and fabrication: Surface cleanup, sheet metal prep, and sanding parts before primer, coating, or protective finish.
- Industrial maintenance and MRO: Refurbishment, coating-prep, and surface conditioning tasks where larger orbit action, quick disc changes, and vacuum-ready operation help manage repeated sanding work.
FAQs:
- Q: What is the R036C-C3-HL best used for?
A: The R036C-C3-HL is suited for faster sanding and material removal on larger surfaces. Its 6" pad covers broad areas efficiently, while the 5/16" orbit provides a more aggressive sanding pattern than smaller-orbit models. - Q: What does a 5/16" orbit mean?
A: Orbit diameter is the size of the pad’s sanding motion. A 5/16" orbit creates a larger sanding pattern, which helps remove material faster but may leave a coarser scratch pattern than 3/32" or 3/16" orbit sanders. - Q: What is the difference between the R036C-C3-HL and R036C-C3?
A: Both models use a 6" pad diameter, 5/16" orbit, 13,000 RPM free speed, 0.3 HP motor, vacuum-ready configuration, 1.9 lb weight, 6.69" length, 4.6 m/s² vibration, and the same listed sound levels. The R036C-C3-HL uses a hook-and-loop pad, while the R036C-C3 uses a vinyl pad. - Q: Is the R036C-C3-HL self-generating vacuum?
A: No. This model is listed as vacuum ready, meaning it is intended to connect to a compatible external dust extraction system. For a 6", 5/16" orbit hook-and-loop model with self-generating configuration, review the R036C-S3-HL version. - Q: What abrasive discs fit this model?
A: Use compatible 6" hook-and-loop abrasive discs matched to the material, removal rate, and finishing step. Confirm the abrasive backing style, grit, and speed rating before use.
| SKU | Rated Power hp W (kW) |
Max Free Speed (rpm) |
Orbit Diameter in(mm) |
Pad Diameter or Size in(mm) |
Pad Style |
Vacuum Ready |
Weight lbs (kg) |
Length in(mm) |
Vibration m/s2 (uncertainty K) |
Sound Level dB(A) (EN ISO 15744) † Pressure (LP) |
Sound Level dB(A) (EN ISO 15744) ‡ Power (LW) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R035C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-C3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-S3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-C3-HL | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
| R035C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-S3-HL | 0.3 (0.22) | 13000 | 5/16(8) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
Looking for more information about the Ingersoll Rand Premium Random Orbital Sander? For help choosing the correct Ingersoll Rand Premium Random Orbital Sanders for your application, please call (800) 608-5210 or email info@intlairtool.com
