Built for surface preparation where a compact pad and balanced removal rate are required, the Ingersoll Rand R035C-C1 Premium Random Orbital Sander pairs a 5" vinyl pad with a 3/16" orbit for sanding wood, composites, fiberglass, sheet metal, and similar shop materials. Random orbital sanding actionthe pad moves in small overlapping motions instead of one fixed circular path helps reduce visible swirl patterns, while the 3/16" orbit removes material faster than finer 3/32" models when preparing surfaces for primer, paint, coatings, or repair work.
The R035C-C1 uses a 0.3 HP motor and 13,000 RPM free speed to deliver productive sanding speed in a compact pneumatic tool. Its 5" pad size gives users a smaller sanding footprint than 6" models, which can help with curved surfaces, smaller panels, edges, and detailed repair areas. This Premium Random Orbital Sander is listed as vacuum ready, allowing connection to compatible dust extraction systems for particle removal during sanding. Manufacturer-listed 2.0 m/s² vibration and 80.9 dB(A) sound pressure provide useful comparison points for shops evaluating tool handling and workplace exposure data.
Type: Random Orbital Sander | Series: Premium Random Orbital Sander | Model: R035C-C1 | Pad Size: 5" / 127 mm | Pad Style: Vinyl | Orbit Diameter: 3/16" / 5 mm | Max Free Speed: 13,000 RPM | Rated Power: 0.3 HP / 0.22 kW | Vacuum Ready: Vacuum Ready | Weight: 1.6 lb / 0.73 kg | Length: 6.69" / 170 mm | Vibration: 2.0 m/s² | Vibration Uncertainty K: 0.7 m/s² | Sound Pressure: 80.9 dB(A) | Sound Power: 91.9 dB(A)
Features:
- 0.3 HP motor provides sanding power for surface preparation, finishing, and general material removal tasks.
- 13,000 RPM free speed supports fast sanding action across common shop materials.
- 3/16" orbit delivers a balanced sanding pattern for stock removal, primer prep, feathering, and general surface conditioning.
- 5" vinyl pad gives the sander a compact working footprint for smaller panels, shaped parts, and controlled finishing passes.
- Vacuum-ready configuration supports connection to compatible dust extraction systems for particle removal during sanding.

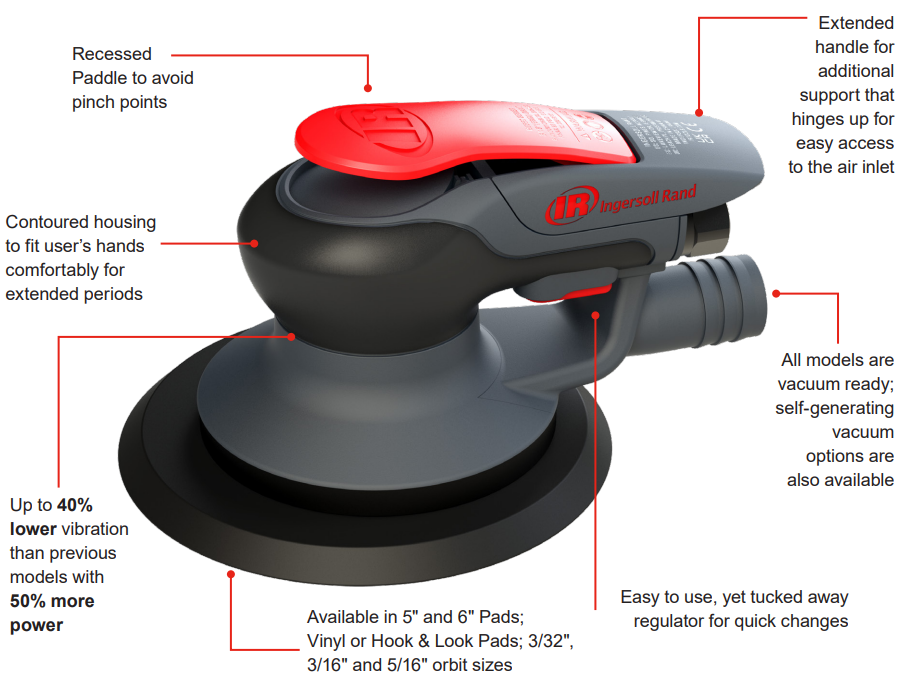

- Extended handle provides additional support and hinges up for access to the air inlet.
- Recessed paddle helps avoid pinch points, while the tucked-away regulator allows quick changes during use.
- Contoured housing and ultimate comfort grip support controlled handling during extended sanding sessions.
Applications:
- Autobody and refinishing: Feathering repaired areas, sanding primer, preparing edges, and working smaller panels before paint.
- Woodworking and cabinet shops: Sanding trim, furniture parts, cabinet components, doors, and smaller wood surfaces using a 5" abrasive format.
- Composite and fiberglass work: Preparing molded parts, smoothing fiberglass panels, and sanding composite surfaces before coating or finishing.
- Metalworking and fabrication: Light surface cleanup, sheet metal finishing, and preparation of parts before paint or protective coating.
- Industrial maintenance and MRO: Repair, refurbishment, and surface-prep tasks where compact pad size and vacuum-ready operation help manage detailed sanding work.
FAQs:
- Q: What is the R035C-C1 best used for?
A: The R035C-C1 is well suited for general-purpose sanding, primer prep, feathering, and surface conditioning on smaller work areas. Its 5" pad provides control on compact or contoured surfaces, while the 3/16" orbit removes material faster than finer-orbit models. - Q: What is the difference between the R035C-C1 and R035C-C2?
A: Both models use a 5" vinyl pad, 13,000 RPM free speed, 0.3 HP motor, and vacuum-ready configuration. The R035C-C1 has a 3/16" orbit for more general-purpose removal, while the R035C-C2 has a finer 3/32" orbit for finish-focused sanding. - Q: Is the R035C-C1 self-generating vacuum?
A: No. The R035C-C1 is listed as vacuum ready, meaning it is intended to connect to a compatible external dust extraction or vacuum system. For a 5", 3/16" orbit vinyl-pad model with self-generating vacuum, review the R035C-S1. - Q: Does this model use hook-and-loop abrasive discs?
A: No. The R035C-C1 is listed with a vinyl pad. For a 5", 3/16" orbit Premium model with a hook-and-loop pad, review the R035C-C1-HL version. - Q: When should I choose a 3/16" orbit instead of a 3/32" orbit?
A: Choose a 3/16" orbit when you want a stronger balance of material removal and finish prep. A 3/32" orbit is better when the finest scratch pattern is the priority.

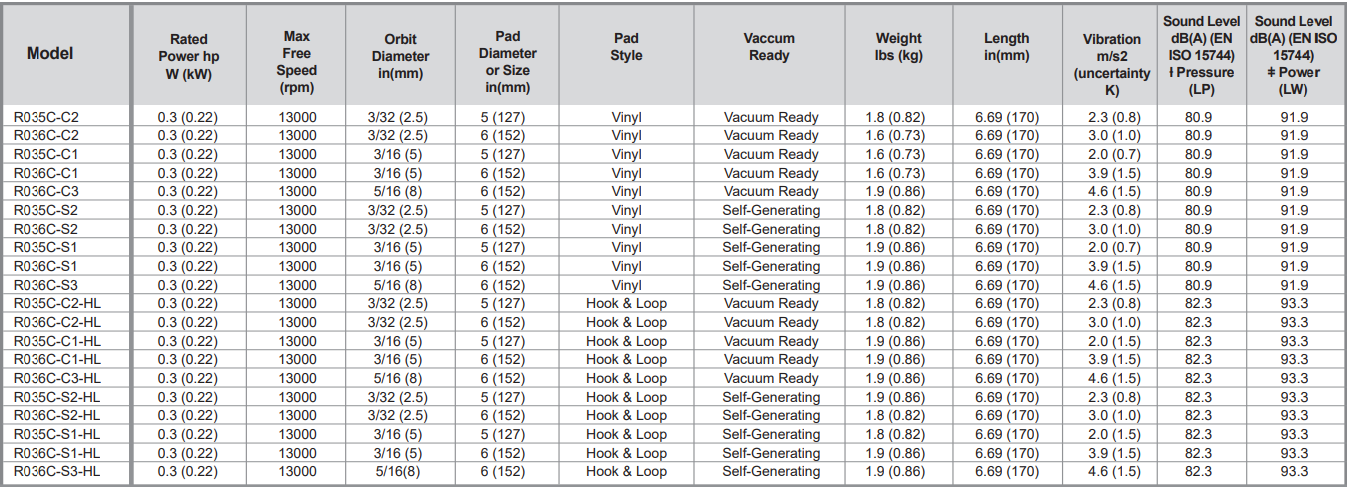

| SKU | Rated Power hp W (kW) |
Max Free Speed (rpm) |
Orbit Diameter in(mm) |
Pad Diameter or Size in(mm) |
Pad Style |
Vacuum Ready |
Weight lbs (kg) |
Length in(mm) |
Vibration m/s2 (uncertainty K) |
Sound Level dB(A) (EN ISO 15744) † Pressure (LP) |
Sound Level dB(A) (EN ISO 15744) ‡ Power (LW) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R035C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-C2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-C1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Vacuum Ready | 1.6 (0.73) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-C3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 80.9 | 91.9 |
| R036C-S2 | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Vinyl | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 80.9 | 91.9 |
| R035C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.0 (0.7) | 80.9 | 91.9 |
| R036C-S1 | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 80.9 | 91.9 |
| R036C-S3 | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Vinyl | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 80.9 | 91.9 |
| R035C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-C2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-C1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-C3-HL | 0.3 (0.22) | 13000 | 5/16 (8) | 6 (152) | Hook & Loop | Vacuum Ready | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
| R035C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 5 (127) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 2.3 (0.8) | 82.3 | 93.3 |
| R036C-S2-HL | 0.3 (0.22) | 13000 | 3/32 (2.5) | 6 (152) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 3.0 (1.0) | 82.3 | 93.3 |
| R035C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 5 (127) | Hook & Loop | Self-Generating | 1.8 (0.82) | 6.69 (170) | 2.0 (1.5) | 82.3 | 93.3 |
| R036C-S1-HL | 0.3 (0.22) | 13000 | 3/16 (5) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 3.9 (1.5) | 82.3 | 93.3 |
| R036C-S3-HL | 0.3 (0.22) | 13000 | 5/16(8) | 6 (152) | Hook & Loop | Self-Generating | 1.9 (0.86) | 6.69 (170) | 4.6 (1.5) | 82.3 | 93.3 |
Looking for more information about the Ingersoll Rand Premium Random Orbital Sander? For help choosing the correct Ingersoll Rand Premium Random Orbital Sanders for your application, please call (800) 608-5210 or email info@intlairtool.com
