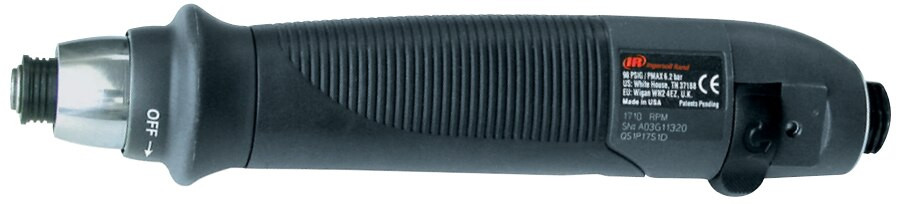

Designed for precision fastening in demanding assembly operations, the Ingersoll Rand QS1L05C1D Inline Air Screwdriver delivers a 3–47.8 in-lb (0.3–5.4 Nm) torque range, 500 RPM free speed, and features an Adjustable Cushion Clutch for smooth, repeatable fastening performance. Its ergonomic inline configuration provides exceptional control for applications requiring higher fastening torque while maintaining excellent accuracy and operator comfort.
Part of the dependable QS Series, this pneumatic screwdriver incorporates a durable lube-free motor and lightweight composite housing to reduce maintenance while supporting continuous-duty industrial production. The externally adjustable cushion clutch helps minimize fastener damage and provides consistent torque for repetitive assembly applications.
Type: Inline Air Screwdriver | Series: QS Series | Model: QS1L05C1D | SKU: QS1L05C1D | Drive Type: 1/4 in. Hex Quick Change | Clutch Type: Adjustable Cushion Clutch | Start Type: Lever Start | Torque Range: 3–47.8 in-lb (0.3–5.4 Nm) | Free Speed: 500 RPM | Weight: 1.90 lb (0.86 kg) | Length: 9.3 in. (236 mm) | Air Inlet: 1/4 in. NPT | Minimum Hose I.D.: 1/4 in. | Air Consumption: 16 CFM (453 L/min) | Sound Level: 73 dBA
|
Features:
Made in USA: |
 |
Applications:
- Electronics manufacturing.
- Appliance assembly.
- Automotive component assembly.
- General industrial production.
- Precision mechanical assembly.
- Continuous assembly line fastening.
FAQs:
- Q: What is the torque range of this screwdriver?
A: This model provides an adjustable torque range of 3–47.8 in-lb (0.3–5.4 Nm). - Q: What clutch system does this tool use?
A: It features an externally adjustable cushion clutch for smooth, repeatable fastening. - Q: What type of bits does this screwdriver accept?
A: The tool uses a standard 1/4 in. hex quick-change chuck. - Q: Does this tool require inline lubrication?
A: No. The QS Series utilizes a lube-free motor that helps reduce routine maintenance. - Q: Is this tool suitable for repetitive production work?
A: Yes. Its lightweight ergonomic design and adjustable clutch make it ideal for continuous industrial assembly operations.
| SKU | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | CFM (L/MIN) | |
| LEVER START | |||||||||
| QS1L28C1D | 3.0 – 9.7 (0.3 – 1.1) | – | – | 2,800 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L20C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L15C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 1,500 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L10C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 40 (1.5 – 4.5) | 1,000 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L10C3D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 40 (1.5 – 4.5) | 1,000 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L05C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| PUSH-TO-START | |||||||||
| QS1P28C1D | 3.0 – 9.7 (0.3 – 1.1) | – | – | 2,800 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P20C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 2,000 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P15C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | – | 1,500 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P10C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 22.1 (0.9 – 2.5) | 13.3 – 40.0 (1.5 – 4.5) | 1,000 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P05C1D | 3.0 – 9.7 (0.3 – 1.1) | 8.0 – 28.3 (0.9 – 3.2) | 13.3 – 47.8 (1.5 – 5.4) | 500 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Actuation
- Lever Start
- Torque Range (in-lbs)
- 3 - 47.8
- RPM
- 500
- Length (in.)
- 9.5
- Side to Center (in.)
- 0.9
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 75
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 16
- Hose Size (in.)
- 1/4
