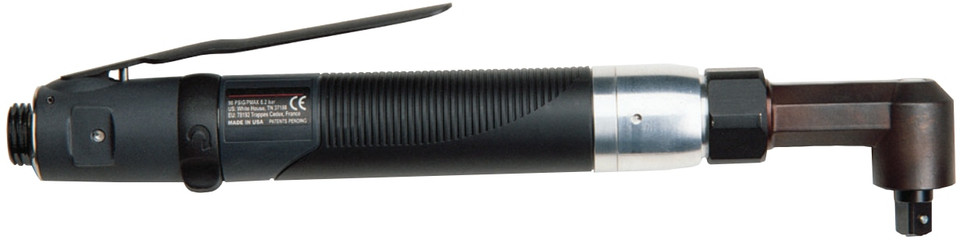

Ingersoll Rand QA1L08D6LD Angle Air Nutrunner | 3/8" Drive | 60.2 (In-lbs) Torque | 850 RPM | Lever Start

For production fastening that requires higher turning force, controlled run-down speed, and a larger socket interface, the Ingersoll Rand QA1L08D6LD Angle Air Nutrunner combines a 3/8-inch drive with 60.2 in-lbs torque and 850 RPM free speed. The angle-head configuration helps operators reach fasteners near adjoining surfaces, inside housings, and around components that restrict straight-line tool access, while the lever-start control provides direct activation during repetitive assembly cycles.

The Ingersoll Rand QA1L08D6LD provides a slower-speed, higher-torque configuration for assembly processes using compatible 3/8-inch drive accessories. Compared with faster QA1 angle nutrunners, its 850 RPM output trades run-down speed for additional available torque, making it useful for joints that require more turning force within the tool's rated capability. The 3/8-inch drive distinguishes this model from the corresponding QA1L08D4LD configuration and allows buyers to match the nutrunner to the socket interface already used at the production station.

Type: Angle Air Nutrunner | Model: QA1L08D6LD | Configuration: Angle | Drive Size: 3/8" | Torque: 60.2 in-lbs | Free Speed: 850 RPM | Start Type: Lever Start

Made in USA:

Applications:

• Production assembly — running and tightening compatible fasteners where controlled speed and increased torque match the joint requirements.
• Equipment manufacturing — fastening brackets, guards, housings, and internal components where straight-line tool access is limited.
• Automotive and transportation production — installing compatible fasteners on fixtures, interior components, brackets, and subassemblies.
• Appliance manufacturing — completing repetitive fastening operations inside cabinets, frames, panels, and enclosed assemblies.
• Industrial assembly stations — using 3/8-inch drive accessories on joints where a compact angle-head pneumatic tool improves access around adjacent components.

FAQs:

• Q: What type of fastening work suits the Ingersoll Rand QA1L08D6LD?
  A: The QA1L08D6LD is suited to repetitive pneumatic assembly work where a 3/8-inch drive, 60.2 in-lbs torque rating, 850 RPM speed, and angle-head configuration match the fastener and joint requirements.
• Q: How does the QA1L08D6LD differ from the QA1L08D4LD?
  A: The QA1L08D6LD uses a 3/8-inch drive, while the QA1L08D4LD uses a 1/4-inch drive. Both supplied models have the same listed 60.2 in-lbs torque, 850 RPM speed, and lever-start operation.
• Q: How does this model compare with the faster QA1L12D6LD?
  A: The QA1L08D6LD operates at 850 RPM with 60.2 in-lbs torque, while the QA1L12D6LD operates at 1,270 RPM with 35.4 in-lbs torque. The QA1L08D6LD provides more turning force at a lower run-down speed.
• Q: Does the 60.2 in-lbs torque rating guarantee final joint torque?
  A: No. Final fastener torque can vary with air pressure, joint characteristics, fastener condition, accessory selection, and operating technique. Critical assemblies should be checked using an approved torque-verification method.
• Q: What sockets should be used with the QA1L08D6LD?
  A: Use compatible 3/8-inch drive accessories that match the tool's exact anvil and retention configuration. Confirm the retention style in the manufacturer catalog before selecting sockets or adapters.

Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
