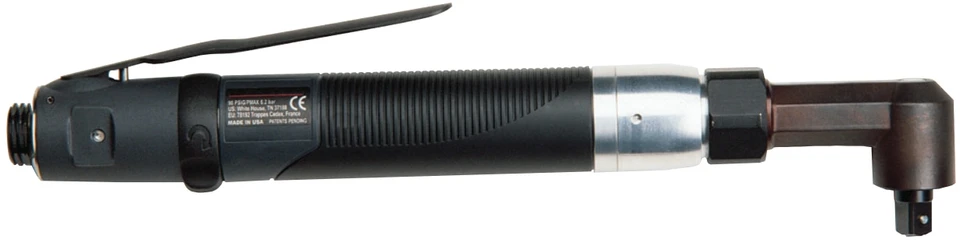

Ingersoll Rand QA1L05D6LD Angle Air Nutrunner | 3/8" Drive | 102.3 (In-lbs) Torque | 500 RPM | Lever Start

Designed for production joints that require higher turning force and side-entry access, the Ingersoll Rand QA1L05D6LD Angle Air Nutrunner combines a 3/8-inch drive with 102.3 in-lbs torque and 500 RPM free speed. The low-speed configuration supports controlled fastener run-down where torque is prioritized over rapid rotation, while the angle-head layout helps operators reach joints positioned near brackets, housings, fixtures, and neighboring components that can limit straight-line tool access.

The Ingersoll Rand QA1L05D6LD uses a lever-start control so the operator can seat the compatible drive accessory on the fastener before activating the pneumatic motor. Its 3/8-inch drive configuration provides a larger socket interface than the corresponding 1/4-inch QA1L05D4LD model while retaining the same listed torque and speed. This combination makes the tool a practical option for repetitive equipment, appliance, transportation, and general manufacturing assembly processes where controlled output, accessory compatibility, and restricted joint access influence tool selection.

Type: Angle Air Nutrunner | Model: QA1L05D6LD | Configuration: Angle | Drive Size: 3/8" | Torque: 102.3 in-lbs | Free Speed: 500 RPM | Start Type: Lever Start

Made in USA:

Applications:

• Production assembly — running and tightening compatible fasteners where slower run-down speed and increased torque match the joint requirements.
• Equipment manufacturing — fastening brackets, guards, housings, and internal components where surrounding parts restrict straight-line tool access.
• Appliance manufacturing — completing repeated fastening operations inside frames, cabinets, panels, and enclosed assemblies.
• Automotive and transportation production — installing compatible fasteners on fixtures, brackets, interior components, and subassemblies.
• Industrial assembly stations — using 3/8-inch drive accessories on joints where right-angle access improves tool positioning around adjacent components.

FAQs:

• Q: What type of fastening work suits the Ingersoll Rand QA1L05D6LD?
  A: The QA1L05D6LD is suited to repetitive pneumatic assembly operations where its 3/8-inch drive, 102.3 in-lbs torque rating, 500 RPM speed, and angle-head configuration match the fastener, joint requirements, and available tool clearance.
• Q: How does the QA1L05D6LD differ from the QA1L05D4LD?
  A: The QA1L05D6LD uses a 3/8-inch drive, while the QA1L05D4LD uses a 1/4-inch drive. Both supplied models have the same listed 102.3 in-lbs torque, 500 RPM speed, and lever-start operation.
• Q: How does this model compare with the QA1L08D6LD?
  A: The QA1L05D6LD operates at 500 RPM with 102.3 in-lbs torque, while the QA1L08D6LD operates at 850 RPM with 60.2 in-lbs torque. The QA1L05D6LD provides greater turning force at a slower run-down speed.
• Q: Does the 102.3 in-lbs torque rating guarantee final joint torque?
  A: No. Final fastener torque can vary with air pressure, joint characteristics, fastener condition, accessory selection, and operating technique. Critical assemblies should be checked using an approved torque-verification method.
• Q: What accessories should be used with the QA1L05D6LD?
  A: Use compatible 3/8-inch drive fastening accessories that match the tool's exact output-drive and retention configuration. Confirm the drive style and accessory requirements in the manufacturer catalog before ordering.

Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
