When a production joint requires more turning force and the fastener sits close to surrounding components, the Ingersoll Rand QA1L05D4LD Angle Air Nutrunner provides a controlled fastening setup with a 1/4-inch drive, 102.3 in-lbs torque, and 500 RPM free speed. The slower run-down speed supports applications where torque is more important than rapid fastener cycling, while the angle-head configuration helps operators reach joints inside housings, beside brackets, and in assemblies where a straight pneumatic tool may be difficult to position.
The Ingersoll Rand QA1L05D4LD uses a lever-start control, allowing the operator to place the drive accessory on the fastener before activating the pneumatic motor. Within the supplied QA1 angle nutrunner group, this model offers a lower-speed, higher-torque configuration for compatible assembly processes using 1/4-inch drive accessories. It is suited to repetitive fastening in equipment, appliance, automotive, and general manufacturing operations where joint access and controlled output influence tool selection.
Type: Angle Air Nutrunner | Model: QA1L05D4LD | Configuration: Angle | Drive Size: 1/4" | Torque: 102.3 in-lbs | Free Speed: 500 RPM | Start Type: Lever Start
|
Features:
|
|
Made in USA:
Applications:
- Production assembly — running and tightening compatible fasteners where lower speed and increased torque match the joint requirements.
- Equipment manufacturing — fastening brackets, guards, housings, and internal components where straight-line access is restricted.
- Appliance manufacturing — completing repetitive fastening inside cabinets, frames, panels, and enclosed assemblies.
- Automotive and transportation production — installing compatible fasteners on fixtures, brackets, interior components, and subassemblies.
- Industrial assembly stations — handling 1/4-inch drive fastening work where right-angle access improves tool alignment around neighboring parts.
FAQs:
- Q: What type of fastening work suits the Ingersoll Rand QA1L05D4LD?
A: The QA1L05D4LD is suited to repetitive pneumatic assembly where its 1/4-inch drive, 102.3 in-lbs torque rating, 500 RPM speed, and angle-head configuration match the fastener, joint, and available clearance. - Q: How does this model compare with the QA1L08D4LD?
A: The QA1L05D4LD operates at 500 RPM with 102.3 in-lbs torque, while the QA1L08D4LD operates at 850 RPM with 60.2 in-lbs torque. The QA1L05D4LD provides more turning force at a slower run-down speed. - Q: Why use an angle nutrunner instead of a straight pneumatic tool?
A: The angle head helps the drive reach fasteners positioned near adjoining surfaces, inside housings, or around components that prevent straight-line tool access. - Q: Does the 102.3 in-lbs rating guarantee final joint torque?
A: Final fastener torque may vary with air pressure, joint characteristics, fastener condition, accessory fit, and operating technique. Use an approved torque-verification method when the assembly requires a specified final torque. - Q: What accessories should be used with the QA1L05D4LD?
A: Use compatible 1/4-inch drive accessories that match the tool's exact output-drive and retention configuration. Confirm the drive style in the manufacturer catalog before selecting sockets or adapters.

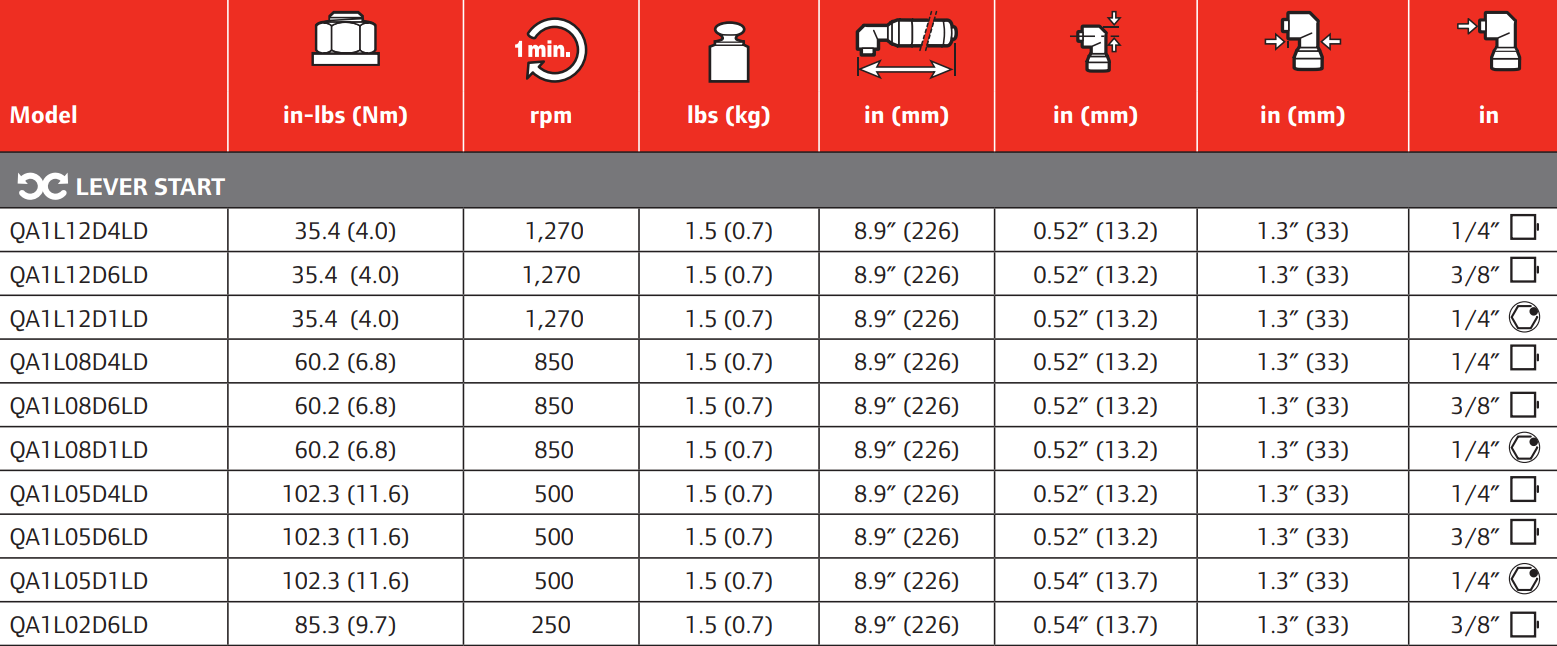

Available Variations and Specifications
| Model | Torque in-lbs (Nm) |
RPM | Weight lbs (kg) |
Length in (mm) |
Side-to-Center in (mm) |
Head Width in (mm) |
Drive |
|---|---|---|---|---|---|---|---|
| Lever Start | |||||||
| QA1L12D4LD | 35.4 (4.0) | 1,270 | 1.5 (0.7) | 8.9" (226) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L12D6LD | 35.4 (4.0) | 1,270 | 1.5 (0.7) | 8.9" (226) | 0.52" (13.2) | 1.3" (33) | 3/8" Square |
| QA1L08D4LD | 60.2 (6.8) | 850 | 1.5 (0.7) | 8.9" (226) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L08D6LD | 60.2 (6.8) | 850 | 1.5 (0.7) | 8.9" (226) | 0.52" (13.2) | 1.3" (33) | 3/8" Square |
| QA1L08D1LD | 60.2 (6.8) | 850 | 1.5 (0.7) | 8.9" (226) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L05D4LD | 102.3 (11.6) | 500 | 1.5 (0.7) | 8.9" (226) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L05D6LD | 102.3 (11.6) | 500 | 1.5 (0.7) | 8.9" (226) | 0.52" (13.2) | 1.3" (33) | 3/8" Square |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
