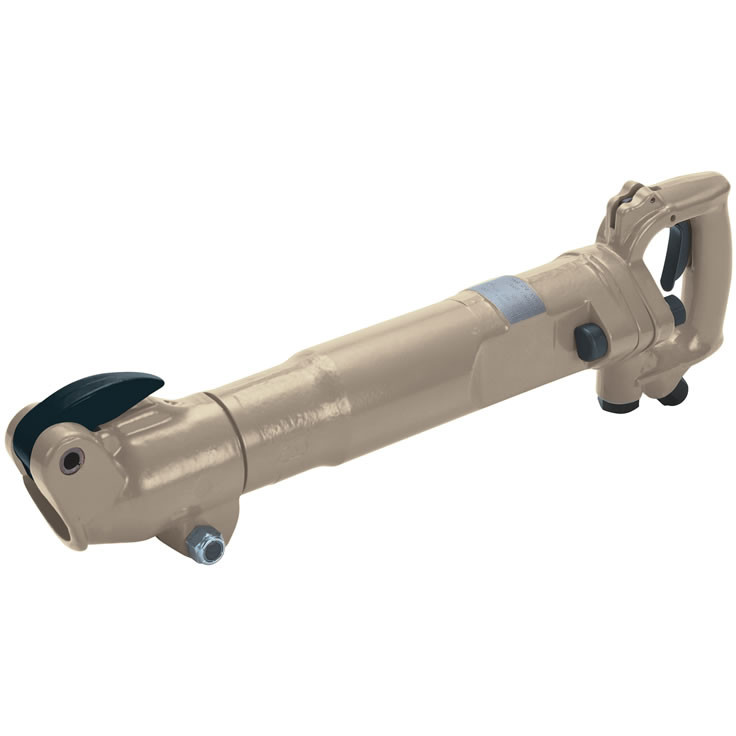

Ingersoll Rand 95LA3 D-Handle Medium-Weight Air Digger is designed for medium-duty excavation, demolition, foundry cleanup, and industrial material-removal applications that demand dependable pneumatic impact and operator control. Delivering 1,850 blows per minute with a 4" piston stroke, this air digger provides consistent percussion for breaking compacted soil, removing castings, and chipping concrete or masonry. Its D-handle configuration offers a secure, ergonomic grip, while the latch retainer allows compatible digging steels and chisels to be installed and removed quickly without compromising tool retention.
Built for repetitive industrial service, the 95LA3 balances the increased impact capability of a medium-weight pneumatic digger with the maneuverability needed for maintenance, utility, and construction work. The latch retainer simplifies accessory changes between applications, helping minimize downtime while maintaining secure retention throughout demanding digging and chipping operations.
Type: Medium-Weight Air Digger | Model: 95LA3 | Handle Style: D-Handle | Retainer Type: Latch Retainer | Stroke: 4" | Blows Per Minute: 1,850 BPM
Features:
- Medium-weight construction delivers increased impact capability for demanding material-removal applications.
- D-handle design provides a comfortable, secure grip for improved control during extended operation.
- Latch retainer enables fast installation and secure retention of compatible digging steels and chisels.
- 4-inch piston stroke produces consistent pneumatic impact for medium-duty digging and chipping tasks.
- 1,850 blows per minute supports productive material removal across a wide range of industrial applications.
- Designed for repetitive pneumatic service in maintenance, construction, and utility environments.
- Compatible with application-specific digging tools designed for latch retainer systems.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Medium-duty excavation of clay and compacted soil.
- Foundry sand removal and casting cleanup.
- Concrete, masonry, and asphalt chipping.
- Industrial maintenance and plant repair operations.
- Utility, construction, and general material-removal work.
FAQs:
- Q: What type of retainer does the Ingersoll Rand 95LA3 use?
A: The 95LA3 is equipped with a latch retainer that securely holds compatible digging steels and chisels while allowing quick accessory changes. - Q: How does the 95LA3 compare to the 95A1?
A: Based on the provided source information, the primary difference is the retainer style. The 95LA3 uses a latch retainer, while the 95A1 uses a sleeve retainer. - Q: What applications is the 95LA3 intended for?
A: It is designed for medium-duty digging, chipping, foundry cleanup, concrete removal, and other industrial material-removal applications. - Q: What impact rate does this air digger provide?
A: The 95LA3 delivers 1,850 blows per minute with a 4-inch piston stroke for consistent pneumatic performance. - Q: What benefit does the D-handle provide?
A: The D-handle offers a comfortable gripping position that helps improve operator control during repetitive digging, demolition, and chipping work.
| SKU | Retainer Type | Hex Shank Size | Stroke in (mm) |
Bore in (mm) |
Length Without Accessory in (mm) |
Weight Without Accessory lb (kg) |
bpm | cfm | Inlet Size NPT in |
Recommended Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 93 SERIES LIGHTWEIGHT DIGGERS | ||||||||||
| 93A1 | Sleeve | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 22 (10) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93A4 | Hitch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 17.88" (454) | 21 (9.5) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93LA1 | Latch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 23 (10.4) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 95 SERIES MEDIUM-WEIGHT DIGGERS | ||||||||||
| 95A1 | Sleeve | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 27 (12.3) | 1,850 | 47 | 3/8" | 1/2" (13) |
| 95LA1 | Latch | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 28 (12.7) | 1,850 | 47 | 3/8" | 1/2" (13) |
| 95LA3 | Latch | 1" x 4-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 30 (13.6) | 1,850 | 47 | 3/8" | 1/2" (13) |
Looking for more information about Ingersoll Rand Digger? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Diggers, please call (800) 608-5210 or email info@intlairtool.com
