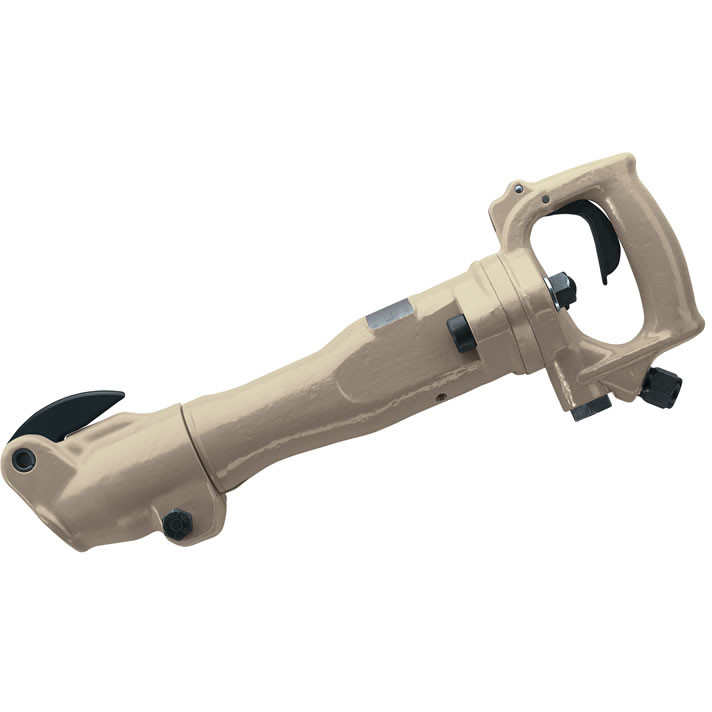

Designed for light demolition, clay digging, foundry work, and general material removal, the Ingersoll Rand 93A1 D-Handle Lightweight Air Digger delivers 2,350 blows per minute with a 2.5" piston stroke. Its ergonomic D-handle configuration provides a comfortable grip for controlled operation, while the sleeve retainer allows fast installation and secure retention of compatible digging steels and chisels. The lightweight design makes the tool well suited for applications requiring maneuverability without sacrificing consistent pneumatic impact performance.
The 93A1 is engineered for repetitive chipping and digging tasks where precision and operator control are important. Operating at the manufacturer's rated air pressure, it provides reliable percussion for breaking compacted soil, removing foundry sand, cleaning castings, and light concrete or masonry removal. Its compact construction makes it a practical choice for confined work areas while maintaining dependable impact performance throughout extended operating periods.
Type: Lightweight Air Digger | Model: 93A1 | Handle Style: D-Handle | Retainer Type: Sleeve Retainer | Stroke: 2.5" | Blows Per Minute: 2,350 BPM
Features:
- Lightweight construction helps reduce operator fatigue during extended use.
- D-handle design provides a secure grip and improved control during digging and chipping applications.
- Sleeve retainer enables quick installation and secure retention of compatible tool steels.
- 2.5-inch piston stroke delivers consistent impact energy for material removal tasks.
- 2,350 blows per minute provides rapid percussion for efficient productivity.
- Compact design allows operation in confined or difficult-to-access work areas.
- Suitable for a variety of compatible chisels and digging tools based on the selected application.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Clay and compacted soil excavation.
- Foundry sand removal and casting cleanup.
- Light concrete and masonry breaking.
- General chipping and surface preparation.
- Utility, maintenance, and industrial material-removal work.
FAQs:
- Q: What type of retainer does the 93A1 use?
A: The 93A1 is equipped with a sleeve retainer that securely holds compatible digging steels and chisels while allowing quick tool changes. - Q: What applications is the 93A1 designed for?
A: It is intended for light digging, chipping, foundry cleanup, compacted soil removal, and similar material-removal applications. - Q: What advantage does the D-handle provide?
A: The D-handle offers a comfortable gripping position and improved control, particularly during prolonged operation. - Q: How fast does this air digger operate?
A: The 93A1 delivers 2,350 blows per minute with a 2.5-inch stroke for rapid pneumatic percussion. - Q: Can this tool be used in confined work areas?
A: Yes. Its lightweight, compact design makes it suitable for work in restricted spaces where larger demolition tools may be difficult to maneuver.
| SKU | Retainer Type | Hex Shank Size | Stroke in (mm) |
Bore in (mm) |
Length Without Accessory in (mm) |
Weight Without Accessory lb (kg) |
bpm | cfm | Inlet Size NPT in |
Recommended Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 93 SERIES LIGHTWEIGHT DIGGERS | ||||||||||
| 93A1 | Sleeve | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 22 (10) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93A4 | Hitch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 17.88" (454) | 21 (9.5) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93LA1 | Latch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 23 (10.4) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 95 SERIES MEDIUM-WEIGHT DIGGERS | ||||||||||
| 95A1 | Sleeve | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 27 (12.3) | 1,850 | 47 | 3/8" | 1/2" (13) |
| 95LA1 | Latch | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 28 (12.7) | 1,850 | 47 | 3/8" | 1/2" (13) |
| 95LA3 | Latch | 1" x 4-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 30 (13.6) | 1,850 | 47 | 3/8" | 1/2" (13) |
Looking for more information about Ingersoll Rand Digger? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Diggers, please call (800) 608-5210 or email info@intlairtool.com
