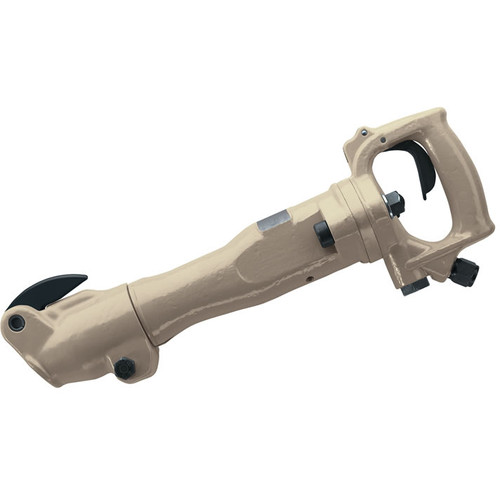

Ingersoll Rand 93LA1 D-Handle Lightweight Air Digger is engineered for light demolition, clay excavation, foundry cleanup, and general material-removal applications where ease of handling and precise control are important. Delivering 2,350 blows per minute with a 2.5" piston stroke, this pneumatic digger provides rapid impact action for breaking compacted material and removing debris. Its D-handle design offers a comfortable, secure grip, while the latch retainer allows compatible digging steels and chisels to be installed and secured quickly for efficient operation.
Designed for repetitive industrial use, the 93LA1 combines lightweight construction with dependable pneumatic performance for applications requiring maneuverability in confined or difficult-to-access work areas. The latch retainer simplifies accessory changes while maintaining secure tool retention throughout demanding digging and chipping operations.
Type: Lightweight Air Digger | Model: 93LA1 | Handle Style: D-Handle | Retainer Type: Latch Retainer | Stroke: 2.5" | Blows Per Minute: 2,350 BPM
Features:
- Lightweight construction helps reduce operator fatigue during repetitive digging and chipping tasks.
- D-handle configuration provides a comfortable grip and improved control during operation.
- Latch retainer allows quick installation and secure retention of compatible digging tools.
- 2.5-inch piston stroke delivers consistent pneumatic impact performance.
- 2,350 blows per minute supports efficient material removal across a variety of light-duty applications.
- Compact design allows the tool to be used in confined or restricted work spaces.
- Compatible with application-specific digging steels and chisels designed for the latch retainer system.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Clay and compacted soil excavation.
- Foundry sand removal and casting cleanup.
- Light concrete, masonry, and asphalt removal.
- General chipping, scraping, and surface preparation.
- Industrial maintenance, utility, and construction material-removal work.
FAQs:
- Q: What type of retainer does the Ingersoll Rand 93LA1 use?
A: The 93LA1 is equipped with a latch retainer that securely holds compatible digging steels and chisels while allowing quick accessory changes. - Q: How does the 93LA1 differ from the 93A1 and 93A4?
A: Based on the provided source information, the distinguishing feature is the retainer style. The 93LA1 uses a latch retainer, while the 93A1 uses a sleeve retainer and the 93A4 uses a hitch retainer. - Q: What applications is this air digger designed for?
A: It is intended for light digging, chipping, foundry cleanup, compacted soil removal, and similar industrial material-removal applications. - Q: What impact rate does the 93LA1 provide?
A: The tool delivers 2,350 blows per minute with a 2.5-inch stroke for rapid pneumatic percussion. - Q: Is the D-handle beneficial for prolonged use?
A: Yes. The D-handle provides a comfortable gripping position that helps improve operator control during repetitive digging and chipping work.
| SKU | Retainer Type | Hex Shank Size | Stroke in (mm) |
Bore in (mm) |
Length Without Accessory in (mm) |
Weight Without Accessory lb (kg) |
bpm | cfm | Inlet Size NPT in |
Recommended Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 93 SERIES LIGHTWEIGHT DIGGERS | ||||||||||
| 93A1 | Sleeve | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 22 (10) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93A4 | Hitch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 17.88" (454) | 21 (9.5) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93LA1 | Latch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 23 (10.4) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 95 SERIES MEDIUM-WEIGHT DIGGERS | ||||||||||
| 95A1 | Sleeve | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 27 (12.3) | 1,850 | 47 | 3/8" | 1/2" (13) |

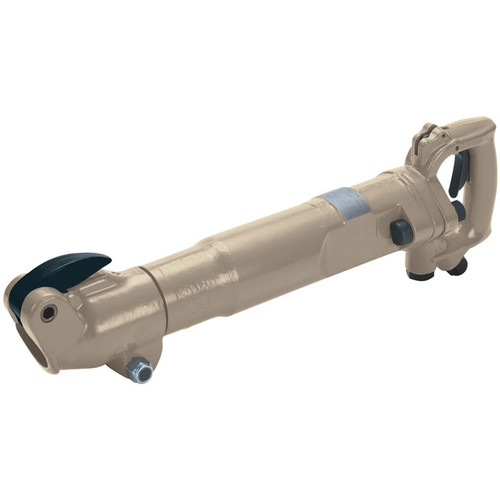

| 95LA1 | Latch | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 28 (12.7) | 1,850 | 47 | 3/8" | 1/2" (13) |
| 95LA3 | Latch | 1" x 4-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 30 (13.6) | 1,850 | 47 | 3/8" | 1/2" (13) |
Looking for more information about Ingersoll Rand Digger? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Diggers, please call (800) 608-5210 or email info@intlairtool.com
