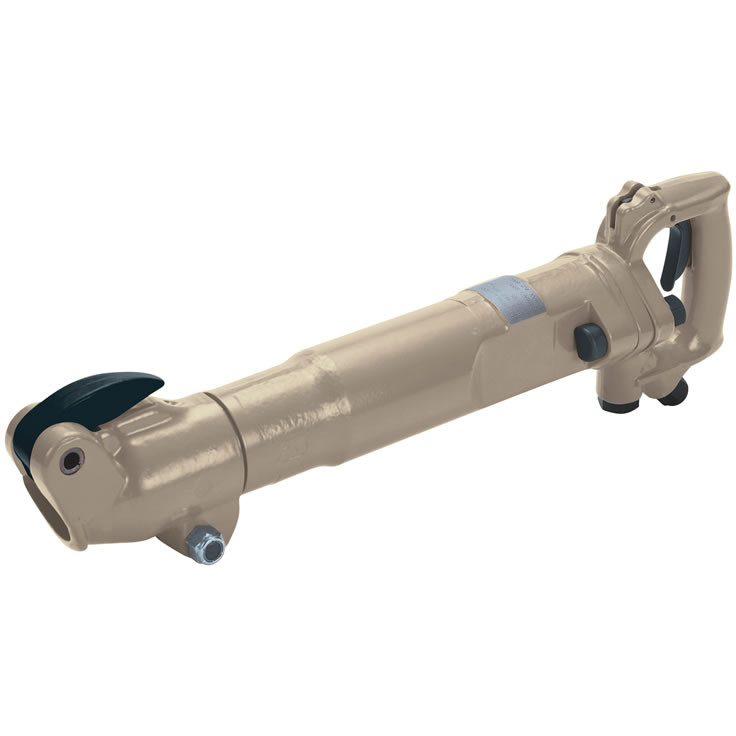

Ingersoll Rand 95A1 D-Handle Medium-Weight Air Digger is designed for medium-duty excavation, demolition, foundry cleanup, and industrial material-removal applications requiring greater impact energy than lightweight diggers. Delivering 1,850 blows per minute with a 4" piston stroke, this pneumatic tool provides powerful, controlled percussion for breaking compacted soil, removing castings, and chipping concrete or masonry. Its D-handle configuration offers a secure, comfortable grip, while the sleeve retainer enables quick installation and dependable retention of compatible digging steels and chisels.
Built for demanding industrial environments, the 95A1 combines a medium-weight design with reliable pneumatic performance to balance impact force and operator control. The sleeve retainer simplifies accessory changes while securely holding tooling during operation, making the air digger well suited for repetitive maintenance, utility, and construction work.
Type: Medium-Weight Air Digger | Model: 95A1 | Handle Style: D-Handle | Retainer Type: Sleeve Retainer | Stroke: 4" | Blows Per Minute: 1,850 BPM
Features:
- Medium-weight construction provides increased impact capability while maintaining good operator control.
- D-handle design offers a comfortable, secure grip during extended digging and chipping operations.
- Sleeve retainer allows quick installation and secure retention of compatible digging steels and chisels.
- 4-inch piston stroke delivers strong pneumatic impact for medium-duty material removal.
- 1,850 blows per minute provides consistent percussion for efficient productivity.
- Designed for repetitive industrial applications requiring dependable pneumatic performance.
- Compatible with application-specific digging tools designed for sleeve retainer systems.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Medium-duty clay and compacted soil excavation.
- Foundry sand removal and casting cleanup.
- Concrete, masonry, and asphalt chipping.
- Industrial maintenance and plant repair work.
- Utility, construction, and general material-removal applications.
FAQs:
- Q: What type of retainer does the Ingersoll Rand 95A1 use?
A: The 95A1 is equipped with a sleeve retainer that securely holds compatible digging steels and chisels while allowing efficient tool changes. - Q: What applications is the 95A1 designed for?
A: It is intended for medium-duty digging, chipping, foundry cleanup, concrete removal, and general industrial material-removal work. - Q: Why does the 95A1 use a 4-inch stroke?
A: The longer 4-inch stroke provides greater impact energy than shorter-stroke models, making it suitable for more demanding medium-duty applications. - Q: What is the operating impact rate?
A: The 95A1 delivers 1,850 blows per minute with a 4-inch piston stroke. - Q: What advantage does the D-handle provide?
A: The D-handle offers a comfortable gripping position that helps improve control during repetitive digging and chipping tasks.
| SKU | Retainer Type | Hex Shank Size | Stroke in (mm) |
Bore in (mm) |
Length Without Accessory in (mm) |
Weight Without Accessory lb (kg) |
bpm | cfm | Inlet Size NPT in |
Recommended Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 93 SERIES LIGHTWEIGHT DIGGERS | ||||||||||
| 93A1 | Sleeve | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 22 (10) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93A4 | Hitch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 17.88" (454) | 21 (9.5) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 93LA1 | Latch | 7/8" x 3-1/4" | 2.5" (64) | 1.69" (43) | 18.88" (479) | 23 (10.4) | 2,350 | 45 | 3/8" | 1/2" (13) |
| 95 SERIES MEDIUM-WEIGHT DIGGERS | ||||||||||
| 95A1 | Sleeve | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 27 (12.3) | 1,850 | 47 | 3/8" | 1/2" (13) |
| 95LA1 | Latch | 7/8" x 3-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 28 (12.7) | 1,850 | 47 | 3/8" | 1/2" (13) |
| 95LA3 | Latch | 1" x 4-1/4" | 4" (102) | 1.69" (43) | 21.88" (556) | 30 (13.6) | 1,850 | 47 | 3/8" | 1/2" (13) |
Looking for more information about Ingersoll Rand Digger? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Diggers, please call (800) 608-5210 or email info@intlairtool.com
