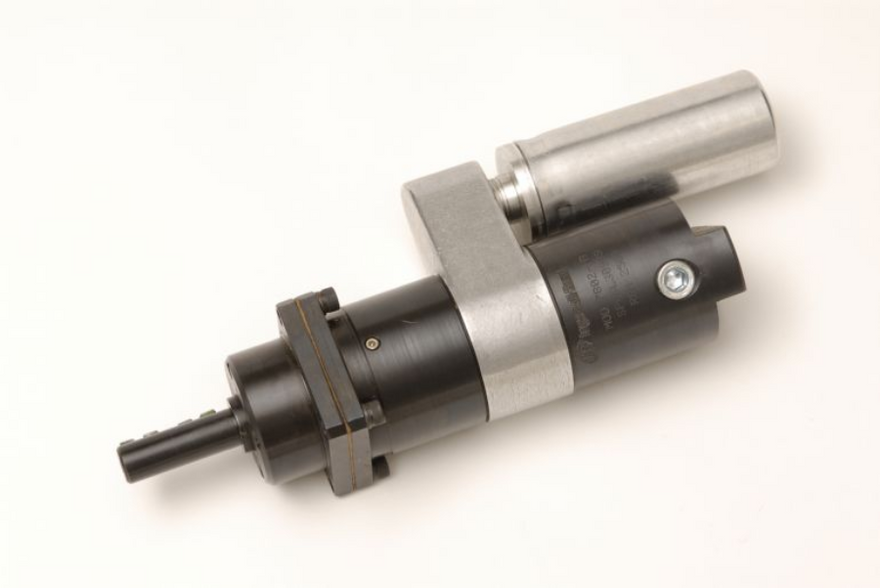

Ingersoll Rand 8230-1A Non-Reversible Air Power Motor | Planetary Gear | 0.60 HP | 19,000 RPM | 0.70 (ft-lbs) Stall Torque | Single Gear Reduction

Ingersoll Rand 8230-1A Non-Reversible Air Power Motor provides high-speed pneumatic rotary output for machinery designed to operate in one direction. Rated at 0.60 HP and 19,000 RPM, this model uses a planetary gear configuration with single gear reduction to transfer motor output through a compact geared arrangement. It is suited to compatible OEM equipment and replacement applications where the required speed, power, rotation, and gear configuration match the motor’s published specifications.

The 8230-1A develops 0.70 lb-ft stall torque, which is the torque produced when the applied load prevents the output from rotating. Stall torque is a limiting condition rather than a normal continuous operating value. Because this is a non-reversible motor, the required direction of rotation and the complete mechanical interface should be confirmed before installation.

Type: Air Power Motor | Model: 8230-1A | Rotation: Non-Reversible | Gear Type: Planetary Gear | Gear Reduction: Single | Power: 0.60 HP | Speed: 19,000 RPM | Stall Torque: 0.70 lb-ft

Features:

• Air-powered motor supplies rotary output from a compatible compressed-air system.
• Non-reversible configuration is intended for equipment operating in one rotational direction.
• Planetary gearing transfers power through a compact arrangement of gears rotating around a central gear.
• Single gear reduction provides one geared reduction stage between the motor and output.
• 0.60 HP rating provides a defined power reference for equipment and replacement matching.
• 19,000 RPM rating supports compatible high-speed drive requirements.
• 0.70 lb-ft stall torque identifies the torque condition reached when the output is prevented from rotating.

Made in USA:

Applications:

• OEM machinery requiring high-speed, one-direction pneumatic rotary power.
• Automated equipment compatible with a 19,000 RPM air motor.
• Machine assemblies designed around a planetary gear motor with single gear reduction.
• Compressed-air-powered mechanisms matched to the stated horsepower and stall torque.
• Replacement installations where the 8230-1A model, rotation, gearing, and mechanical interfaces correspond to the existing motor.

FAQs:

• Q: Is the Ingersoll Rand 8230-1A reversible?
  A: No. This model is specified as a non-reversible air power motor for applications operating in one direction.
• Q: What type of gearing does this motor use?
  A: The 8230-1A uses a planetary gear arrangement with single gear reduction.
• Q: What does single gear reduction mean?
  A: It means the motor uses one geared reduction stage to transfer rotary output through the gear assembly.
• Q: What does the 0.70 lb-ft stall torque rating indicate?
  A: Stall torque is the torque produced when the connected load prevents the output from rotating. It should not be treated as a normal continuous operating value.
• Q: What should be checked before installing this motor?
  A: Verify horsepower, speed, rotation direction, gear configuration, output interface, mounting arrangement, dimensions, and compressed-air requirements using the manufacturer catalog.
