Ingersoll Rand 8230-8A Non-Reversible Air Power Motor is engineered to provide dependable low-speed, high-torque pneumatic performance for demanding industrial applications. Featuring a planetary gear drive with double gear reduction, this air power motor is rated at 0.60 HP and delivers a free speed of 600 RPM. Its non-reversible configuration is designed for equipment requiring continuous rotation in a single direction, making it well suited for OEM machinery, processing equipment, conveyors, material handling systems, and industrial automation requiring substantial output torque.
The 8230-8A develops 19.60 lb-ft of stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. The combination of planetary gearing and double gear reduction provides increased torque multiplication compared to higher-speed models, making this motor an excellent choice for applications where higher rotational force is more important than maximum operating speed.
Type: Air Power Motor | Model: 8230-8A | Rotation: Non-Reversible | Gear Type: Planetary Gear | Gear Reduction: Double | Power: 0.60 HP | Speed: 600 RPM | Stall Torque: 19.60 lb-ft
Features:
- Air-powered motor converts compressed air into dependable rotary power for industrial equipment.
- Non-reversible configuration supports continuous operation in a single rotational direction.
- Planetary gear assembly provides efficient power transmission within a compact design.
- Double gear reduction increases available output torque for demanding industrial applications.
- 0.60 HP output delivers reliable pneumatic performance for compatible machinery.
- 600 RPM free speed is well suited for controlled, low-speed applications requiring increased rotational force.
- 19.60 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum loading conditions.
Made in USA:
Applications:
- OEM machinery requiring high-torque pneumatic rotary power.
- Industrial automation and manufacturing systems.
- Material handling, conveying, and transfer equipment.
- Processing machinery utilizing planetary geared pneumatic drives.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 8230-8A reversible?
A: No. This model is manufactured as a non-reversible air power motor for applications requiring continuous operation in one rotational direction. - Q: What type of gear system does this motor use?
A: The 8230-8A features a planetary gear design with double gear reduction. - Q: Why is double gear reduction used?
A: Double gear reduction provides greater torque multiplication than a single-stage reduction, making the motor suitable for applications requiring high output torque at lower operating speeds. - Q: What does the 19.60 lb-ft stall torque specification indicate?
A: Stall torque is the maximum torque generated when the output shaft is prevented from rotating. It is a published performance reference and should not be considered a continuous operating torque. - Q: What should be verified before installing this motor?
A: Confirm horsepower, operating speed, rotation direction, gear configuration, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

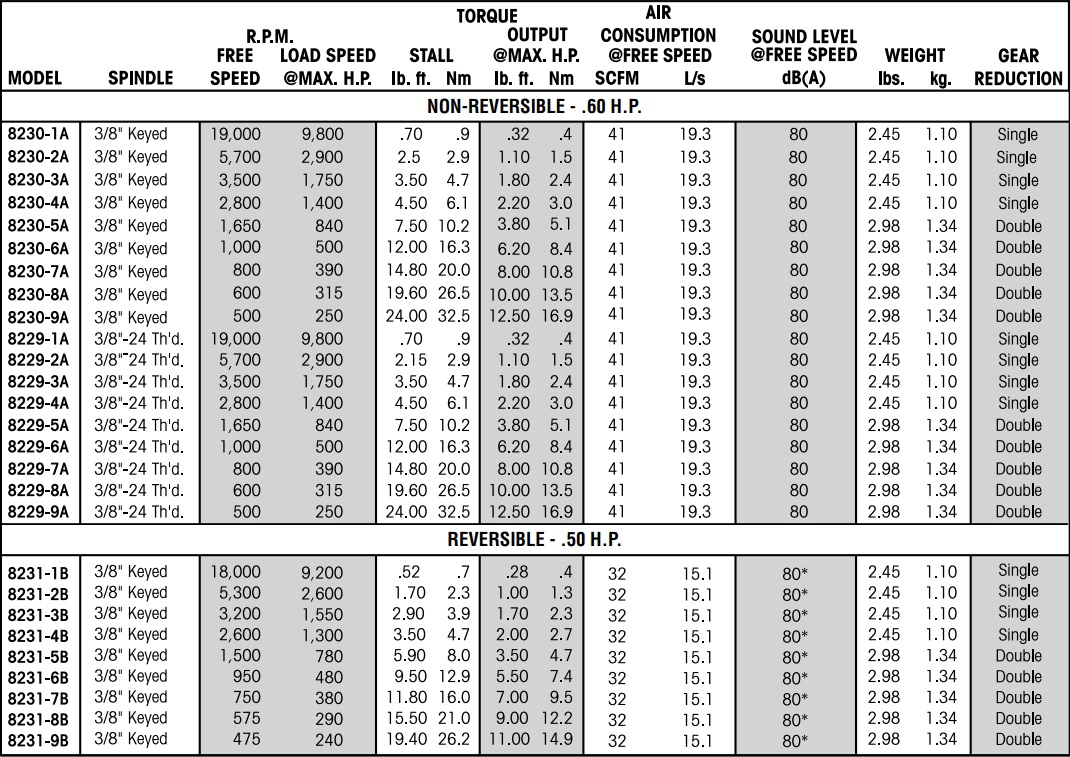

| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output at Max. Hp | ||||||||||
| lb-ft | Nm | lb-ft | Nm | SCFM | L/s | dB(A) | lbs | kg | |||||
| NON-REVERSIBLE - 0.60 HP | |||||||||||||
| 8230-1A | 3/8" Keyed | 19,000 | 9,800 | 0.70 | 0.9 | 0.32 | 0.4 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8230-2A | 3/8" Keyed | 5,700 | 2,900 | 2.5 | 2.9 | 1.10 | 1.5 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8230-3A | 3/8" Keyed | 3,500 | 1,750 | 3.50 | 4.7 | 1.80 | 2.4 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8230-4A | 3/8" Keyed | 2,800 | 1,400 | 4.50 | 6.1 | 2.20 | 3.0 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8230-5A | 3/8" Keyed | 1,650 | 840 | 7.50 | 10.2 | 3.80 | 5.1 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8230-6A | 3/8" Keyed | 1,000 | 500 | 12.00 | 16.3 | 6.20 | 8.4 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8230-7A | 3/8" Keyed | 800 | 390 | 14.80 | 20.0 | 8.00 | 10.8 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8230-8A | 3/8" Keyed | 600 | 315 | 19.60 | 26.5 | 10.00 | 13.5 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8230-9A | 3/8" Keyed | 500 | 250 | 24.00 | 32.5 | 12.50 | 16.9 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8229-1A | 3/8"-24 Th’d. | 19,000 | 9,800 | .70 | 0.9 | 0.32 | 0.4 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8229-2A | 3/8"-24 Th’d. | 5,700 | 2,900 | 2.15 | 2.9 | 1.10 | 1.5 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8229-3A | 3/8"-24 Th’d. | 3,500 | 1,750 | 3.50 | 4.7 | 1.80 | 2.4 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8229-4A | 3/8"-24 Th’d. | 2,800 | 1,400 | 4.50 | 6.1 | 2.20 | 3.0 | 41 | 19.3 | 80 | 2.45 | 1.10 | Single |
| 8229-5A | 3/8"-24 Th’d. | 1,650 | 840 | 7.50 | 10.2 | 3.80 | 5.1 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8229-6A | 3/8"-24 Th’d. | 1,000 | 500 | 12.00 | 16.3 | 6.20 | 8.4 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8229-7A | 3/8"-24 Th’d. | 800 | 390 | 14.80 | 20.0 | 8.00 | 10.8 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8229-8A | 3/8"-24 Th’d. | 600 | 315 | 19.60 | 26.5 | 10.00 | 13.5 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| 8229-9A | 3/8"-24 Th’d. | 500 | 250 | 24.00 | 32.5 | 12.50 | 16.9 | 41 | 19.3 | 80 | 2.98 | 1.34 | Double |
| REVERSIBLE - 0.50 HP | |||||||||||||
| 8231-1B | 3/8" Keyed | 18,000 | 9,200 | 0.52 | 0.7 | 0.28 | 0.4 | 32 | 15.1 | 80* | 2.45 | 1.10 | Single |
| 8231-2B | 3/8" Keyed | 5,300 | 2,600 | 1.70 | 2.3 | 1.00 | 1.3 | 32 | 15.1 | 80* | 2.45 | 1.10 | Single |
| 8231-3B | 3/8" Keyed | 3,200 | 1,550 | 2.90 | 3.9 | 1.70 | 2.3 | 32 | 15.1 | 80* | 2.45 | 1.10 | Single |
| 8231-4B | 3/8" Keyed | 2,600 | 1,300 | 3.50 | 4.7 | 2.00 | 2.7 | 32 | 15.1 | 80* | 2.45 | 1.10 | Single |
| 8231-5B | 3/8" Keyed | 1,500 | 780 | 5.90 | 8.0 | 3.50 | 4.7 | 32 | 15.1 | 80* | 2.98 | 1.34 | Double |
| 8231-6B | 3/8" Keyed | 950 | 480 | 9.50 | 12.9 | 5.50 | 7.4 | 32 | 15.1 | 80* | 2.98 | 1.34 | Double |
| 8231-7B | 3/8" Keyed | 750 | 380 | 11.80 | 16.0 | 7.00 | 9.5 | 32 | 15.1 | 80* | 2.98 | 1.34 | Double |
| 8231-8B | 3/8" Keyed | 575 | 290 | 15.50 | 21.0 | 9.00 | 12.2 | 32 | 15.1 | 80* | 2.98 | 1.34 | Double |
| 8231-9B | 3/8" Keyed | 475 | 240 | 19.40 | 26.2 | 11.00 | 14.9 | 32 | 15.1 | 80* | 2.98 | 1.34 | Double |
Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
