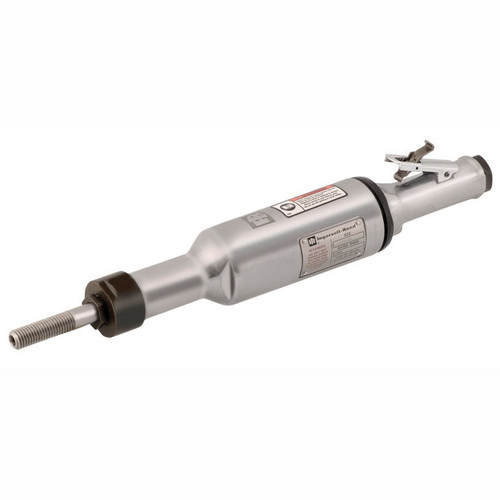

Ingersoll Rand 77H120L10 Straight Cone and Plug Grinder is a pneumatic grinding tool configured for material removal using compatible cone and plug abrasive accessories. Powered by a 1.5 HP motor and operating at 12,000 RPM, this model features a 5/8"-11 threaded spindle for matching compatible grinding accessories and mounting configurations.
Ingersoll Rand 77H120L10 combines a straight tool configuration with its 12,000 RPM operating speed for direct positioning during localized grinding and surface preparation work. Its side exhaust routes discharged air through the side of the tool, while buyers should verify that the intended cone or plug grinding accessory is compatible with the 5/8"-11 spindle connection and rated for the tool's operating speed.
Type: Straight Cone and Plug Grinder | Power: 1.5 HP | Speed: 12,000 RPM | Spindle Thread: 5/8"-11 | Exhaust: Side Exhaust
Features:
- 1.5 HP pneumatic motor provides the specified power output for compatible cone and plug grinding applications.
- 12,000 RPM operating speed supports grinding accessories designed and rated for the tool's rotational speed.
- 5/8"-11 threaded spindle provides the specified mounting interface for compatible accessory configurations.
- Straight tool layout supports direct positioning during localized grinding and material removal operations.
- Cone and plug grinder configuration accommodates compatible abrasive shapes for targeted grinding work.
- Side exhaust routes discharged air through the side of the tool.
Applications:
- Material removal using compatible cone and plug grinding accessories matched to the 5/8"-11 spindle configuration.
- Localized grinding and surface cleanup on fabricated metal components and assemblies.
- Grinding tasks where compatible cone or plug abrasive shapes provide suitable contact with the work area.
- Production and repair operations requiring a 1.5 HP pneumatic cone and plug grinder operating at 12,000 RPM.
FAQs:
- Q: What is the operating speed of the Ingersoll Rand 77H120L10?
A: The 77H120L10 is specified to operate at 12,000 RPM. - Q: What spindle thread does this cone and plug grinder use?
A: This model uses a 5/8"-11 threaded spindle. Compatible accessories and mounting arrangements should match this thread specification. - Q: How much power does the 77H120L10 provide?
A: This straight cone and plug grinder has a specified power rating of 1.5 HP. - Q: What does the side exhaust configuration mean?
A: Side exhaust means discharged air exits through an exhaust location on the side of the tool rather than through the front or rear. - Q: What should be verified before selecting a grinding accessory?
A: Confirm that the cone or plug accessory and its mounting arrangement are compatible with the 5/8"-11 spindle and are rated for operation at 12,000 RPM.
| SKU | hp | rpm | Exhaust | Output | lb (kg) | L | Spindle Housing Diameter | cfm |
|---|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | |||||||
| 61H120L6 | 1.25 | 12,000 | Side | 3/8" - 24 Thread | 4.3 (1.9) | 14.8" (376) | 1.4" (36) | 37 |
| 61H150L6 | 1.33 | 15,000 | Side | 3/8" - 24 Thread | 4.3 (1.9) | 14.8" (376) | 1.4" (36) | 40 |
| 77H90L10 | 1.5 | 9,000 | Side | 5/8" - 11 Thread | 6.0 (2.7) | 16.4" (417) | 1.9" (48) | 37 |
| 77H120L10 | 1.5 | 12,000 | Side | 5/8" - 11 Thread | 6.0 (2.7) | 16.4" (417) | 1.9" (48) | 39 |
| 88HL90L10 | 2.2 | 9,000 | Side | 5/8" - 11 Thread | 8.4 (3.8) | 18.3" (465) | 2.3" (58) | 66 |
Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
