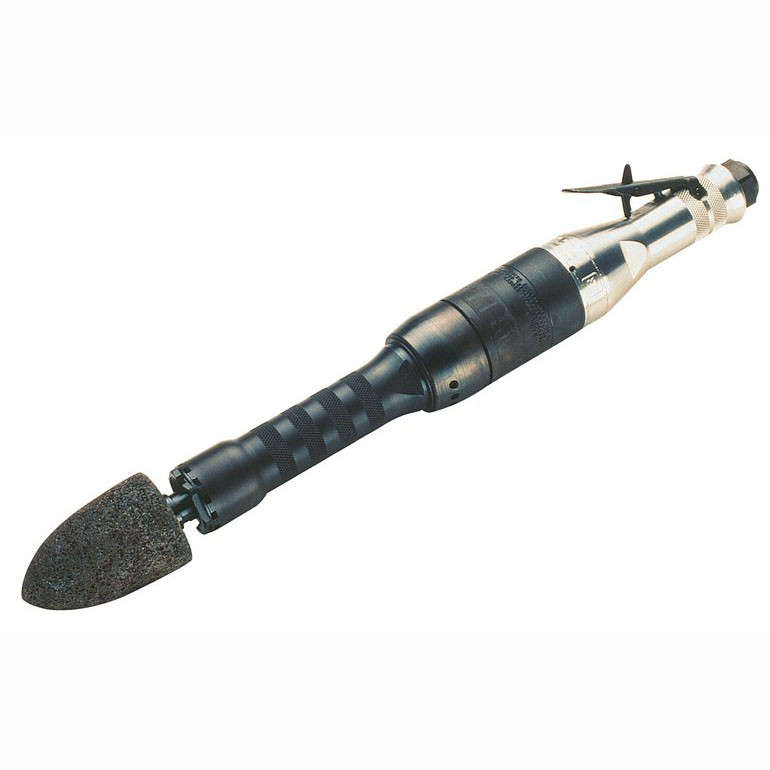

Ingersoll Rand 61H150L6 Straight Cone and Plug Grinder is a pneumatic grinding tool designed for material removal, compatible with cone and plug abrasive accessories. Powered by a 1.33 HP motor and operating at 15,000 RPM, this model features a 3/8"-24 threaded spindle, providing the specified mounting interface for compatible grinding accessory configurations.
Ingersoll Rand 61H150L6 combines a straight tool layout with its 15,000 RPM operating speed for direct positioning during localized grinding and surface preparation work. Its side exhaust routes discharged air through the side of the tool, while accessory selection should account for the 3/8"-24 spindle connection and the grinder's rated operating speed.
Type: Straight Cone and Plug Grinder | Power: 1.33 HP | Speed: 15,000 RPM | Spindle Thread: 3/8"-24 | Exhaust: Side Exhaust
Features:
- 1.33 HP pneumatic motor provides the specified power output for compatible cone and plug grinding applications.
- 15,000 RPM operating speed supports grinding accessories designed and rated for the tool's rotational speed.
- 3/8"-24 threaded spindle provides the specified mounting interface for compatible accessory configurations.
- Straight tool configuration supports direct positioning during localized grinding and material removal tasks.
- Cone and plug grinder design accommodates compatible abrasive configurations suited to targeted grinding work.
- Side exhaust routes discharged air through the side of the tool.
Applications:
- Localized material removal using compatible cone and plug grinding accessories.
- Surface cleanup and grinding on fabricated metal components and assemblies.
- Grinding tasks where compatible cone or plug abrasive shapes provide suitable contact with the work area.
- Production and repair operations requiring a 1.33 HP pneumatic grinder with a 15,000 RPM operating speed.
FAQs:
- Q: What is the operating speed of the Ingersoll Rand 61H150L6?
A: The 61H150L6 is specified to operate at 15,000 RPM. - Q: How much power does this cone and plug grinder provide?
A: This model has a specified power rating of 1.33 HP. - Q: What spindle thread does the 61H150L6 use?
A: The grinder uses a 3/8"-24 threaded spindle. Compatible accessories and mounting arrangements should match this thread specification. - Q: What does the side exhaust configuration mean?
A: Side exhaust means the tool's discharged air is routed through an exhaust location on the side of the grinder rather than through the front or rear. - Q: What should be verified before selecting a cone or plug grinding accessory?
A: Confirm that the accessory and mounting arrangement are compatible with the 3/8"-24 spindle and are rated for operation at 15,000 RPM.
| SKU | hp | rpm | Exhaust | Output | lb (kg) | L | Spindle Housing Diameter | cfm |
|---|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | |||||||
| 61H120L6 | 1.25 | 12,000 | Side | 3/8" - 24 Thread | 4.3 (1.9) | 14.8" (376) | 1.4" (36) | 37 |
| 61H150L6 | 1.33 | 15,000 | Side | 3/8" - 24 Thread | 4.3 (1.9) | 14.8" (376) | 1.4" (36) | 40 |
| 77H90L10 | 1.5 | 9,000 | Side | 5/8" - 11 Thread | 6.0 (2.7) | 16.4" (417) | 1.9" (48) | 37 |
| 77H120L10 | 1.5 | 12,000 | Side | 5/8" - 11 Thread | 6.0 (2.7) | 16.4" (417) | 1.9" (48) | 39 |
| 88HL90L10 | 2.2 | 9,000 | Side | 5/8" - 11 Thread | 8.4 (3.8) | 18.3" (465) | 2.3" (58) | 66 |
Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
