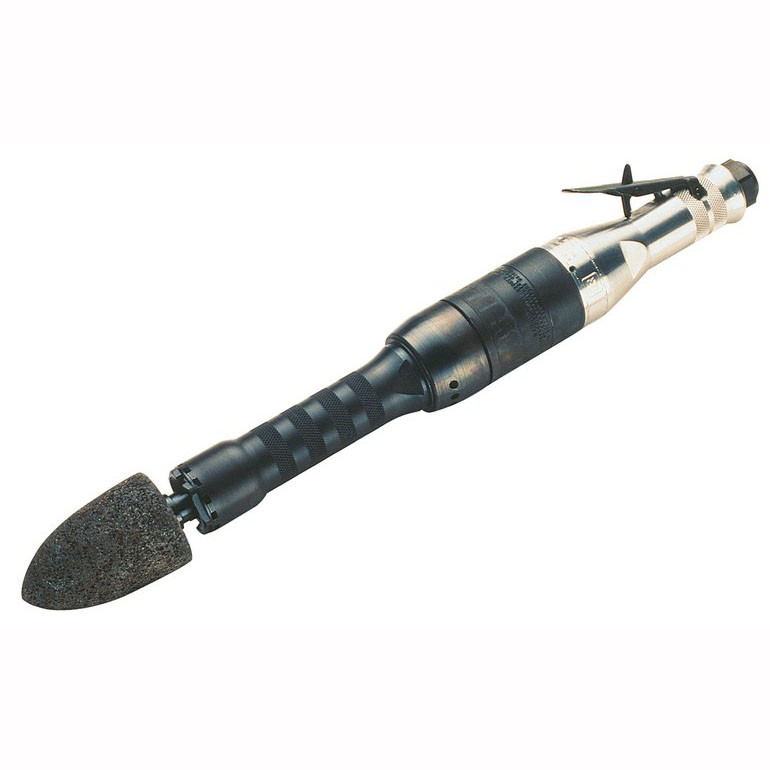

Ingersoll Rand 61H120L6 Straight Cone and Plug Grinder is a pneumatic grinding tool designed for material removal, compatible with cone and plug grinding accessories. Powered by a 1.25 HP motor and operating at 12,000 RPM, this model features a 3/8"-24 threaded spindle for matching compatible threaded grinding accessories and mounting arrangements.
Ingersoll Rand 61H120L6 uses a straight tool configuration for direct positioning during grinding and surface preparation work. Its side exhaust routes discharged air through the side of the tool, while the combination of 1.25 HP power and 12,000 RPM speed should be considered when selecting compatible cone or plug grinding accessories for the application.
Type: Straight Cone and Plug Grinder | Power: 1.25 HP | Speed: 12,000 RPM | Spindle Thread: 3/8"-24 | Exhaust: Side Exhaust
Features:
- 1.25 HP pneumatic motor provides the specified power output for compatible cone and plug grinding applications.
- 12,000 RPM operating speed supports grinding accessories designed and rated for the tool's rotational speed.
- 3/8"-24 threaded spindle provides the specified mounting interface for compatible accessory configurations.
- Straight tool layout supports direct positioning during material removal and surface preparation tasks.
- Cone and plug grinder configuration supports compatible abrasive shapes suited to localized grinding work.
- Side exhaust routes discharged air through the side of the tool.
Applications:
- Material removal using compatible cone and plug grinding accessories matched to the 3/8"-24 spindle configuration.
- Localized grinding and surface cleanup on fabricated and metal components.
- Grinding operations where the shape of a compatible cone or plug abrasive provides suitable access to the work area.
- Production and repair tasks requiring a 1.25 HP pneumatic grinder operating at 12,000 RPM.
FAQs:
- Q: What type of grinder is the Ingersoll Rand 61H120L6?
A: The 61H120L6 is a straight cone and plug grinder designed for use with compatible grinding accessory configurations. - Q: What is the operating speed of the 61H120L6?
A: This model is specified to operate at 12,000 RPM. - Q: What spindle thread does this grinder use?
A: The 61H120L6 uses a 3/8"-24 threaded spindle. The selected accessory and mounting arrangement should be compatible with this thread specification. - Q: Where does this grinder exhaust air?
A: This model uses a side exhaust configuration. - Q: What should be checked before selecting a cone or plug grinding accessory?
A: Verify that the accessory and mounting arrangement are compatible with the 3/8"-24 spindle configuration and are rated for operation at 12,000 RPM.

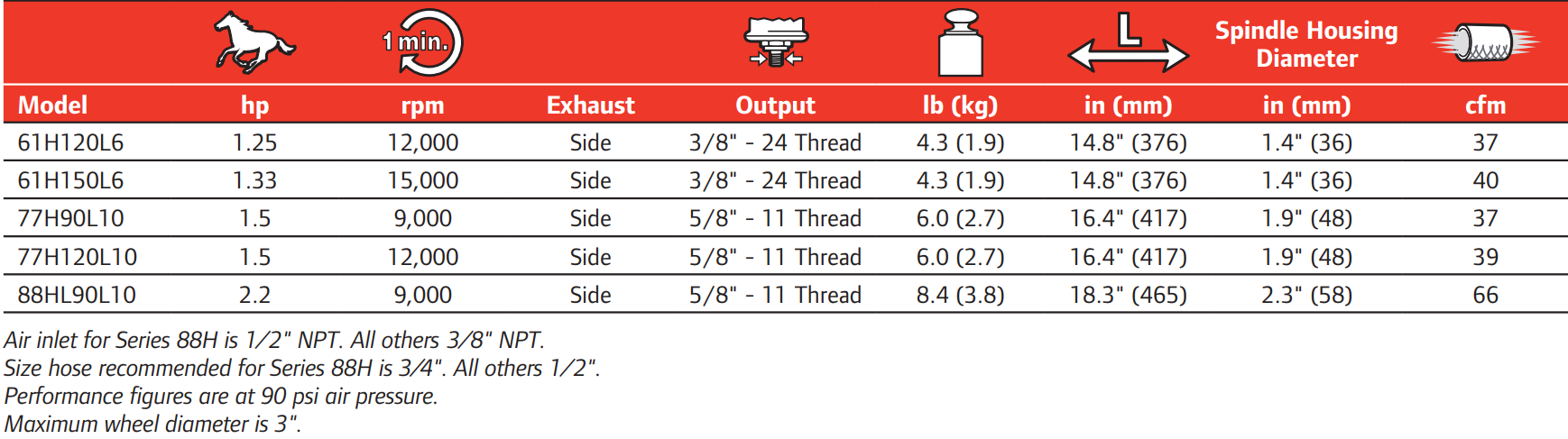

| SKU | hp | rpm | Exhaust | Output | lb (kg) | L | Spindle Housing Diameter | cfm |
|---|---|---|---|---|---|---|---|---|
| in (mm) | in (mm) | |||||||
| 61H120L6 | 1.25 | 12,000 | Side | 3/8" - 24 Thread | 4.3 (1.9) | 14.8" (376) | 1.4" (36) | 37 |
| 61H150L6 | 1.33 | 15,000 | Side | 3/8" - 24 Thread | 4.3 (1.9) | 14.8" (376) | 1.4" (36) | 40 |
| 77H90L10 | 1.5 | 9,000 | Side | 5/8" - 11 Thread | 6.0 (2.7) | 16.4" (417) | 1.9" (48) | 37 |
| 77H120L10 | 1.5 | 12,000 | Side | 5/8" - 11 Thread | 6.0 (2.7) | 16.4" (417) | 1.9" (48) | 39 |
| 88HL90L10 | 2.2 | 9,000 | Side | 5/8" - 11 Thread | 8.4 (3.8) | 18.3" (465) | 2.3" (58) | 66 |
Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
