Designed for controlled fastening in production and assembly environments, the Ingersoll Rand 41SA8PSQ4 Inline Pneumatic Screwdriver combines an 800 RPM free speed with a 15–100 in-lbs torque range for repetitive screwdriving applications requiring adjustable torque control. Its adjustable shut-off clutch helps control fastening torque within the tool's specified range, while the push-to-start mechanism allows the screwdriver to begin operation when pressure is applied to the fastener.
The inline configuration provides a straight, compact tool profile for assembly stations where direct alignment with the fastener is appropriate. The adjustable clutch and push-to-start actuation make the 41SA8PSQ4 well suited to repetitive fastening operations where consistent starting and controlled shut-off are important.
Type: Pneumatic Screwdriver | Model: 41SA8PSQ4 | Configuration: Inline | Free Speed: 800 RPM | Torque Range: 15–100 in-lbs | Clutch: Adjustable Shut-Off Clutch | Start Mechanism: Push-to-Start
|
Features:
|
|
Made in USA:
Applications:
- Production assembly operations requiring controlled screwdriving.
- Industrial assembly involving fasteners within the specified 15–100 in-lbs torque range.
- Repetitive fastening workstations where push-to-start operation is preferred.
- Component assembly applications where an inline screwdriver provides suitable access.
- Maintenance and repair tasks requiring adjustable torque control within the tool's rated range.
FAQs:
- Q: What does the 15–100 in-lbs torque range mean?
A: It identifies the specified fastening torque range of the 41SA8PSQ4. The adjustable shut-off clutch can be set for applications that fall within this range. - Q: How does the push-to-start mechanism work?
A: The screwdriver starts when it is pressed against the fastener, providing actuation without a separate trigger. - Q: What is an adjustable shut-off clutch?
A: An adjustable shut-off clutch allows the user to set the desired fastening torque and stops the screwdriver when the clutch reaches its set point. - Q: What is the benefit of the 800 RPM speed?
A: The 800 RPM free speed provides controlled screwdriving operation for assembly tasks where the specified torque range and application call for this speed.

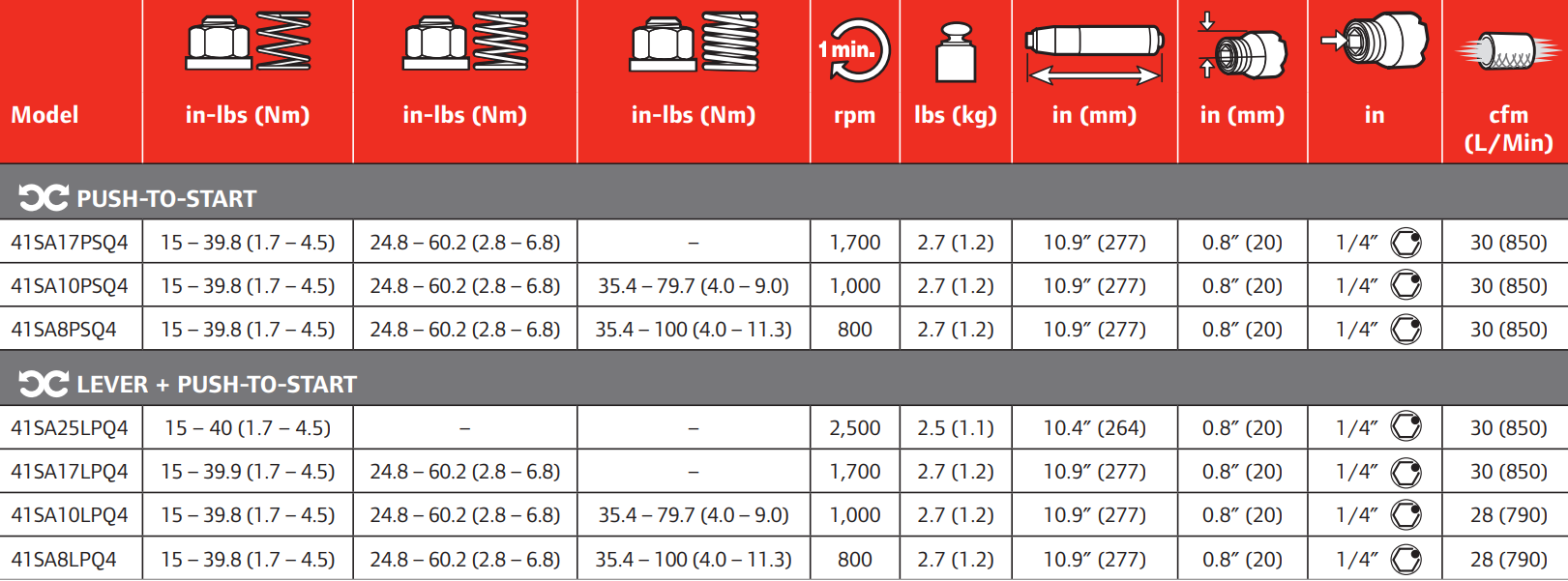

| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/Min) | |
| Push-to-Start | |||||||||
| 41SA17PSQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | – | 1,700 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA10PSQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 79.7 (4.0 – 9.0) | 1,000 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA8PSQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 100 (4.0 – 11.3) | 800 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| Lever + Push-to-Start | |||||||||
| 41SA25LPQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,500 | 2.5 (1.1) | 10.4" (264) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA17LPQ4 | 15 – 39.9 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | – | 1,700 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA10LPQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 79.7 (4.0 – 9.0) | 1,000 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 28 (790) |
| 41SA8LPQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 100 (4.0 – 11.3) | 800 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 28 (790) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application, please email info@intlairtool.com or call (800) 608-5210
