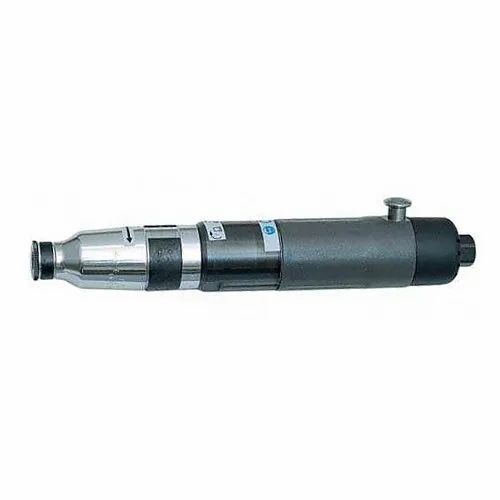

Designed for controlled fastening in production and assembly environments, the Ingersoll Rand 41SA8LPQ4 Inline Pneumatic Screwdriver combines an 800 RPM free speed with a 15–100 in-lbs torque range for repetitive screwdriving applications requiring adjustable torque control. Its adjustable shut-off clutch helps control fastening torque within the specified range, while the lever and push-to-start configuration provides two methods of tool actuation for different assembly workflows.
The inline configuration provides a direct tool profile for compatible assembly positions, while the adjustable shut-off clutch is designed to stop the screwdriver when the preset torque is reached. Lever and push-to-start operation gives the operator flexibility when positioning and actuating the tool during repetitive fastening tasks.
Type: Pneumatic Screwdriver | Model: 41SA8LPQ4 | Configuration: Inline | Free Speed: 800 RPM | Torque Range: 15–100 in-lbs | Clutch: Adjustable Shut-Off Clutch | Start Mechanism: Lever and Push-to-Start
|
Features:
|
|
Made in USA:
Applications:
- Production assembly operations requiring controlled screwdriving.
- Industrial assembly involving fasteners within the specified torque range.
- Repetitive fastening workstations where lever or push-to-start actuation is useful.
- Component assembly where an inline screwdriver provides suitable access to the fastener.
- Maintenance and repair applications requiring adjustable torque control within the tool's rated range.
FAQs:
- Q: What does the 15–100 in-lbs torque range mean?
A: It identifies the specified fastening torque range of the 41SA8LPQ4. The adjustable shut-off clutch can be set for applications that fall within this range. - Q: How does the lever and push-to-start configuration work?
A: The tool provides both lever-start and push-to-start methods of actuation, allowing the operator to select the starting method appropriate for the assembly operation. - Q: What is an adjustable shut-off clutch?

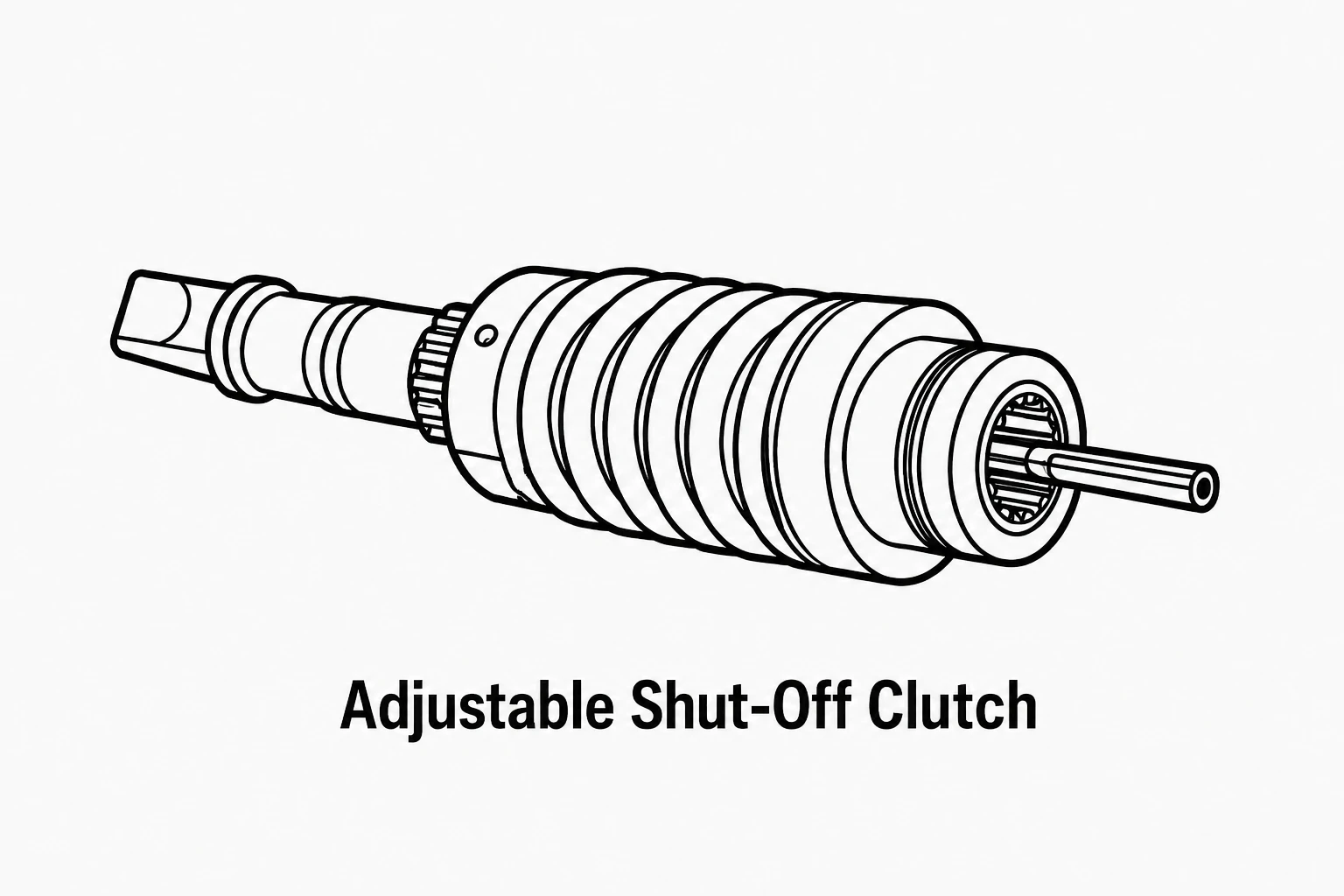

A: An adjustable shut-off clutch allows the user to set the desired fastening torque and stops the screwdriver when the clutch reaches its set point. - Q: What is the benefit of the 800 RPM speed?
A: The 800 RPM free speed supports controlled screwdriving for repetitive assembly applications while the clutch provides adjustable torque control within the specified range.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/Min) | |
| Push-to-Start | |||||||||
| 41SA17PSQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | – | 1,700 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA10PSQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 79.7 (4.0 – 9.0) | 1,000 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA8PSQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 100 (4.0 – 11.3) | 800 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| Lever + Push-to-Start | |||||||||
| 41SA25LPQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,500 | 2.5 (1.1) | 10.4" (264) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA17LPQ4 | 15 – 39.9 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | – | 1,700 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 30 (850) |
| 41SA10LPQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 79.7 (4.0 – 9.0) | 1,000 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 28 (790) |
| 41SA8LPQ4 | 15 – 39.8 (1.7 – 4.5) | 24.8 – 60.2 (2.8 – 6.8) | 35.4 – 100 (4.0 – 11.3) | 800 | 2.7 (1.2) | 10.9" (277) | 0.8" (20) | 1/4" | 28 (790) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application, please email info@intlairtool.com or call (800) 608-5210
