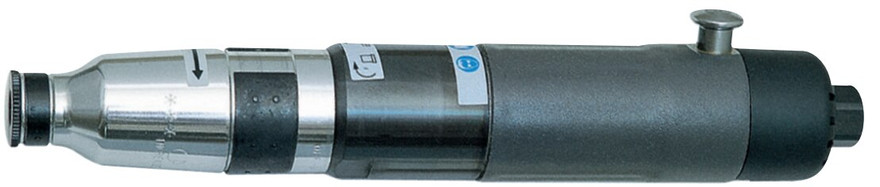

Ingersoll Rand 41SA17PSQ4 Inline Pneumatic Screwdriver | 1,700 RPM | 15 - 60.2 (in-lbs) Torque Range | Adjustable Shut-Off Clutch

Built for production fastening where consistent torque control matters, the Ingersoll Rand 41SA17PSQ4 Inline Adjustable Shut-Off Air Screwdriver combines a 15–60.2 in-lb (1.7–6.8 Nm) torque range with a 1,700 RPM free speed for controlled screw rundown in repetitive assembly work. Its adjustable shut-off clutch automatically stops the fastening cycle when the preset torque is reached, helping reduce the risk of over-tightening on joints where precise torque control is required. Push-to-start actuation lets the operator begin the cycle by applying the tool to the fastener, while the inline configuration supports straight-on fastening at production benches and assembly stations.

The 41SA17PSQ4 uses a 1/4" hex quick-change spindle for efficient bit changes and incorporates a simple push-button reverse for fastener removal and rework. Its Skinsulate housing provides a comfortable gripping surface that requires less gripping force during repeated operation. At 10.9" (277 mm) long and 2.7 lb (1.2 kg), the tool combines a well-balanced form with the performance required for repetitive production fastening. Air consumption is rated at 30 CFM (850 L/min), with a 1/4" NPT air inlet and 5/16" (8 mm) recommended hose size.

Type: Air Screwdriver | Series: 41 Series | Model: 41SA17PSQ4 | Grip Style: Inline | Clutch: Adjustable Shut-Off | Actuation: Push to Start | Torque Range: 15–60.2 in-lbs (1.7–6.8 Nm) | Free Speed: 1,700 RPM | Spindle: 1/4" Hex Quick Change | Length: 10.9" (277 mm) | Side to Center: 0.8" (20 mm) | Weight: 2.7 lb (1.2 kg) | Air Consumption: 30 CFM (850 L/min) | Air Inlet: 1/4" NPT | Recommended Hose Size: 5/16" (8 mm) | Sound Level: 78 dB(A)

Made in USA:

Applications:

• Production assembly lines — controlled installation of screws and threaded fasteners where repeatable shut-off torque is required.
• Automotive component assembly — fastening interior, electrical, trim, and other components within the tool's specified torque range.
• Appliance and equipment manufacturing — repetitive screw rundown on assembled housings, panels, brackets, and components.
• General manufacturing — bench assembly operations requiring an inline screwdriver with push-to-start activation.
• Assembly rework and repair stations — fastening and removal tasks where the push-button reverse simplifies direction changes.

FAQs:

• Q: How does the adjustable shut-off clutch on the 41SA17PSQ4 work?
  A: The clutch is adjusted to the required fastening torque and automatically shuts the tool off when that setting is reached. This makes the 41SA17PSQ4 suited to assembly joints where controlled, repeatable fastening is more important than simply running the fastener to maximum tightness.
• Q: What torque range does the 41SA17PSQ4 cover?
  A: Ingersoll Rand's assembly catalog specifies torque springs covering 15–39.8 in-lbs (1.7–4.5 Nm) and 24.8–60.2 in-lbs (2.8–6.8 Nm), giving the model an overall available range of 15–60.2 in-lbs (1.7–6.8 Nm).
• Q: What type of bits fit this Ingersoll Rand screwdriver?
  A: The 41SA17PSQ4 uses a 1/4" hex quick-change spindle. Select screwdriver bits with the appropriate compatible 1/4" hex shank and a tip profile that matches the fastener being installed.
• Q: What does push-to-start mean on the 41SA17PSQ4?
  A: Push-to-start means the fastening cycle is activated by pressing the screwdriver and bit against the fastener. This actuation style is useful for repetitive production work because the operator can position the bit and initiate the cycle through the same forward motion.
• Q: How much compressed air does the 41SA17PSQ4 require?
  A: The catalog specifies air consumption of 30 CFM (850 L/min), a 1/4" NPT air inlet, and a recommended 5/16" (8 mm) hose. The compressed-air system should be sized to maintain the required supply when the tool is operating, particularly when several assembly tools share the same air line.

Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application please email info@intlairtool.com or call (800) 608-5210
