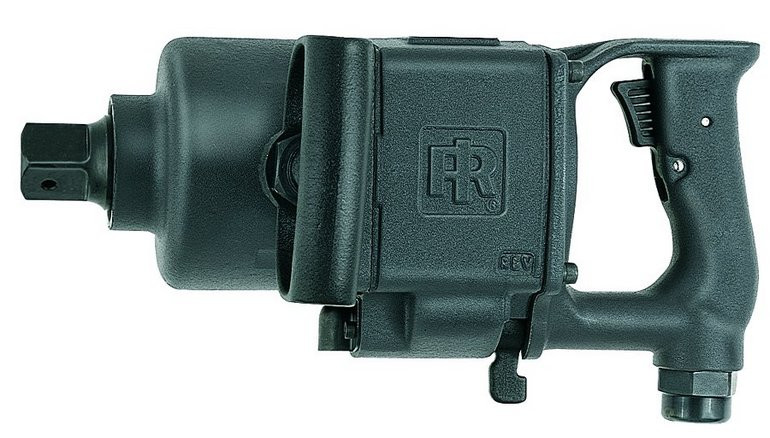

Ingersoll Rand 280 Super Duty Impact Wrench | 1" Drive | 6000 RPM | 1600 (ft-lbs) Max Torque | Inside Trigger

Ingersoll Rand 280 D-Handle Air Impact Wrench is built for heavy vehicle and equipment service where large fasteners require high pneumatic torque. Its 1" square drive delivers up to 1,600 ft-lbs (2,169 Nm) of maximum torque, while a 6,000 RPM free speed provides the rotational performance needed for demanding fastening and fastener-removal work.

The 280 combines a D-handle layout with an auxiliary side handle to provide additional control during high-torque operation. Its rocking-dog impact mechanism delivers repeated rotational impacts through the drive, while the built-in power regulator and convenient reverse control allow the operator to adapt the wrench to different service tasks.

Type: Air Impact Wrench | Model: 280 | Handle: D-Handle | Drive Size: 1" | Drive Type: Square | Maximum Torque: 1,600 ft-lbs (2,169 Nm) | Free Speed: 6,000 RPM | Impacts Per Minute: 700 | Impact Mechanism: Rocking Dog | Weight: 21.5 lb (9.75 kg) | Length: 16.2" (411 mm) | Air Inlet: 1/2" | Minimum Hose Size: 1/2" (13 mm) | Average Air Consumption: 10 CFM (283 L/min) | Air Consumption at Load: 40 CFM (1,133 L/min) | Operating Pressure: 90 PSI (6.2 bar)

Features:

• Rocking-dog impact mechanism transfers powerful repeated impacts to the square drive for demanding fastening and removal work.
• 1" square drive accepts compatible impact sockets commonly used with large vehicle and equipment fasteners.
• D-handle configuration provides a substantial gripping point for supporting the wrench during high-torque operation.
• Auxiliary side handle gives the operator an additional point of control when positioning and operating the tool.
• Built-in power regulator allows tool output to be adjusted for different fastening requirements.
• Convenient reverse control makes it easy to switch between tightening and fastener removal.
• 6,000 RPM free speed works with 700 impacts per minute to provide productive performance on large threaded fasteners.
• Pressure-feed lubrication system automatically greases the impact mechanism to support continued tool operation.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Heavy truck service involving large fasteners that require high-torque pneumatic impact capability.
• Commercial vehicle and fleet maintenance using compatible 1" drive impact sockets.
• Heavy equipment and machinery repair where substantial breakaway torque is required.
• Vehicle service operations where a D-handle wrench provides additional control for large fastening and removal tasks.

FAQs:

• Q: What is the maximum torque of the Ingersoll Rand 280?
  A: The 280 is rated for up to 1,600 ft-lbs (2,169 Nm) of maximum torque.
• Q: What drive size does the Ingersoll Rand 280 use?
  A: The model 280 uses a 1" square drive for compatible 1" drive impact sockets.
• Q: What is the free speed of the 280 impact wrench?
  A: The 280 has a 6,000 RPM free speed and delivers 700 impacts per minute.
• Q: What is the purpose of the D-handle and auxiliary handle?
  A: The two gripping points help the operator support and control the 21.5 lb wrench while positioning it on large fasteners and operating at high torque.
• Q: What air supply does the Ingersoll Rand 280 require?
  A: The catalog specifies a 1/2" air inlet, 1/2" (13 mm) minimum hose size, and 90 PSI (6.2 bar) operating pressure. Air consumption is listed at 10 CFM (283 L/min) average and 40 CFM (1,133 L/min) at load.
• Q: What type of impact mechanism is used in the 280?
  A: The 280 uses a rocking-dog impact mechanism to transfer repeated rotational impacts through the drive during fastening and removal.

Looking for more information about the Ingersoll Rand Air Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
