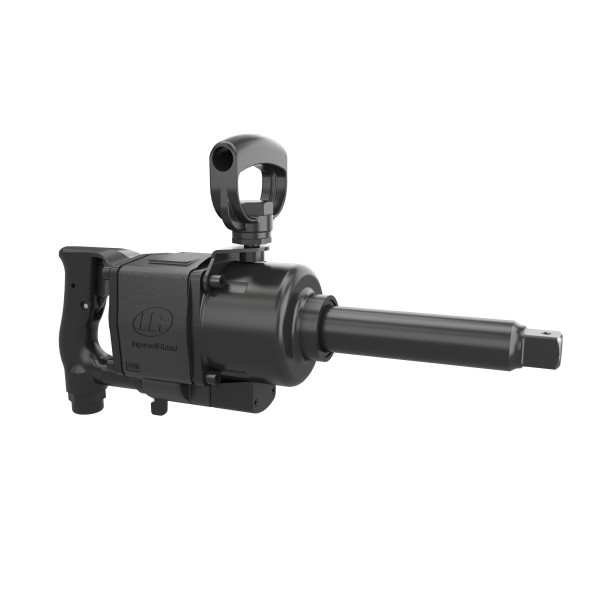

Ingersoll Rand 280-6 Inside Trigger Impact Wrench | D-Handle | 1" Square Drive | 6000 RPM

Ingersoll Rand 280-6 D-Handle Air Impact Wrench combines high pneumatic torque with an extended anvil for heavy vehicle and equipment service. Its 1" square drive with 6" extended anvil provides additional reach for recessed fasteners, while up to 1,600 ft-lbs (2,169 Nm) of maximum torque and a 6,000 RPM free speed support demanding fastening and fastener-removal work.

Designed for applications where a standard-length anvil may not provide sufficient access, the 280-6 pairs its extended reach with a D-handle and auxiliary side handle for improved tool control. A rocking-dog impact mechanism delivers repeated rotational impacts through the drive, while the power regulator and reverse control help the operator adapt the wrench to changing service requirements.

Type: Air Impact Wrench | Model: 280-6 | Handle: D-Handle | Drive Size: 1" | Drive Type: Square | Anvil: 6" Extended | Maximum Torque: 1,600 ft-lbs (2,169 Nm) | Free Speed: 6,000 RPM | Impacts Per Minute: 700 | Impact Mechanism: Rocking Dog | Weight: 24.5 lb (11.1 kg) | Length: 22.2" (564 mm) | Air Inlet: 1/2" | Minimum Hose Size: 1/2" (13 mm) | Average Air Consumption: 10 CFM (283 L/min) | Air Consumption at Load: 40 CFM (1,133 L/min) | Operating Pressure: 90 PSI (6.2 bar)

Features:

• 6" extended anvil provides additional reach when working with recessed or difficult-to-access fasteners.
• Rocking-dog impact mechanism delivers repeated impact power for demanding fastening and removal applications.
• 1" square drive accepts compatible large-drive impact sockets used in heavy vehicle and equipment service.
• D-handle configuration provides a substantial gripping point for supporting the wrench during high-torque operation.
• Auxiliary side handle gives the operator an additional point of control when positioning and operating the tool.
• Built-in power regulator allows tool output to be adjusted for different fastening requirements.
• Convenient reverse control supports quick changes between tightening and fastener removal.
• Pressure-feed lubrication system automatically greases the impact mechanism to support continued operation.

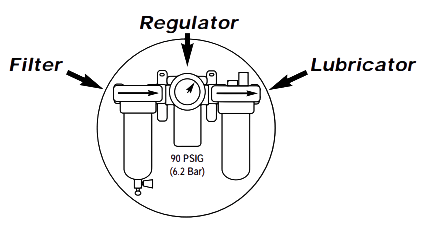

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Heavy truck service where an extended anvil is needed to reach recessed fasteners.
• Commercial vehicle and fleet maintenance involving large 1" drive fastening applications.
• Heavy equipment and machinery repair requiring substantial pneumatic torque and additional drive reach.
• Wheel and vehicle service tasks where the 6" extended anvil provides more access than a standard-anvil impact wrench.

FAQs:

• Q: What is the difference between the Ingersoll Rand 280-6 and the 280?
  A: The 280-6 uses a 6" extended anvil for additional reach. Both models are 1" drive D-handle impact wrenches rated for up to 1,600 ft-lbs of maximum torque and 6,000 RPM free speed.
• Q: How much maximum torque does the 280-6 provide?
  A: The 280-6 is rated for up to 1,600 ft-lbs (2,169 Nm) of maximum torque.
• Q: Why would I choose the 6" extended anvil version?
  A: The extended anvil provides additional reach between the tool body and socket, making the 280-6 useful when the fastener location is recessed or otherwise difficult to reach with a standard-length anvil.
• Q: What are the speed and impact rate of the 280-6?
  A: The wrench operates at a 6,000 RPM free speed and delivers 700 impacts per minute.
• Q: What air supply specifications should be considered for the 280-6?
  A: The catalog specifies a 1/2" air inlet, 1/2" (13 mm) minimum hose size, and 90 PSI (6.2 bar) operating pressure. Air consumption is listed at 10 CFM (283 L/min) average and 40 CFM (1,133 L/min) at load.
• Q: How large is the Ingersoll Rand 280-6?
  A: The extended-anvil model is 22.2" (564 mm) long and weighs 24.5 lb (11.1 kg).

Looking for more information about the Ingersoll Rand Air Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
