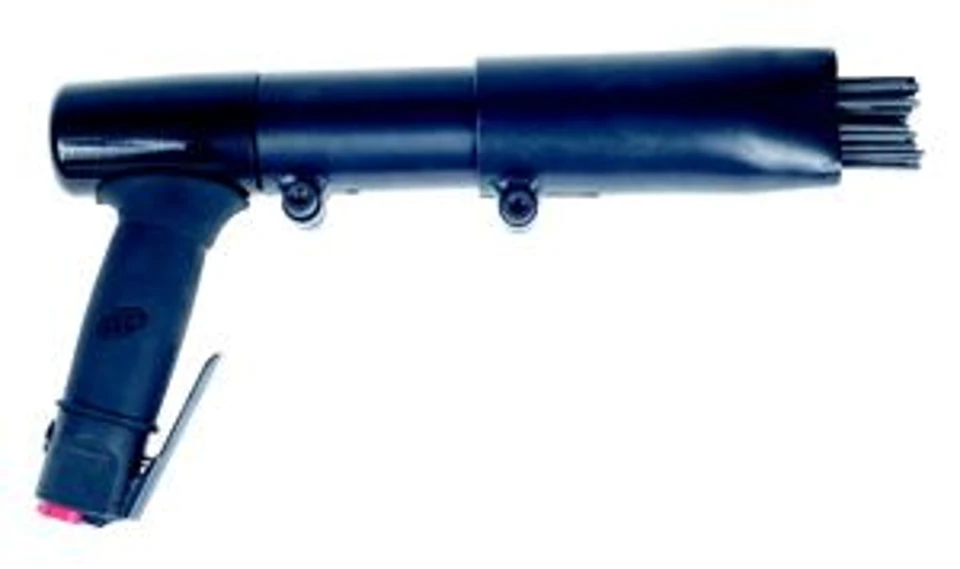

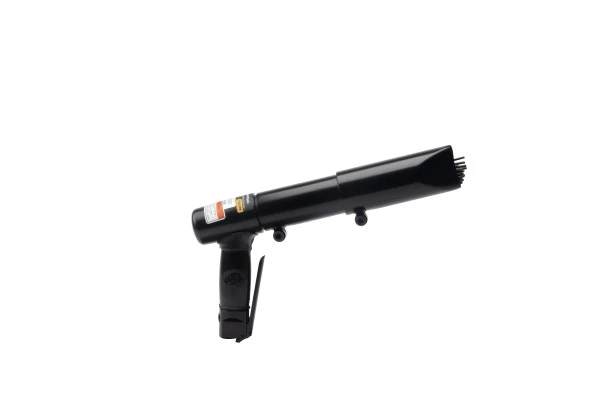

Ingersoll Rand 180PG Pneumatic Needle Scaler is designed for heavy-duty surface preparation applications where reliable impact performance is required to remove rust, scale, coatings, and other unwanted material from metal surfaces. Featuring 2,200 blows per minute, a 1.54" stroke length, and a 1.125" bore, this pistol-grip needle scaler provides controlled pneumatic impact action for industrial maintenance, repair, fabrication, and construction applications.
The pistol-grip design of the 180PG provides a comfortable operating configuration for extended surface preparation tasks. Its 1.54" stroke length allows extended needle movement during each impact cycle, while the 2,200 BPM impact rate delivers repeated striking action to help break away corrosion, scale, and surface buildup from metal components, weld areas, and equipment surfaces.
Type: Pneumatic Needle Scaler | Model: 180PG | Configuration: Pistol Grip | Blows Per Minute: 2,200 BPM | Stroke Length: 1.54" | Bore Size: 1.125"
Features:
- Pistol-grip configuration provides a controlled hand position for surface preparation and cleaning operations.
- 2,200 blows per minute deliver repeated impact action for removing rust, scale, coatings, and surface contaminants.
- 1.54" stroke length provides extended needle travel during each operating cycle.
- 1.125" bore supports the pneumatic operating mechanism of the tool.
- Needle-style cutters follow irregular surface profiles and help clean around edges, welds, and complex contours.
- Pneumatic operation provides consistent impact performance for industrial repair and maintenance environments.
Made in USA:
Applications:
- Industrial maintenance: removing corrosion, scale, and coatings from machinery, equipment, and metal assemblies.
- Weld cleaning: preparing weld areas and removing slag or surface residue from fabricated components.
- Construction equipment repair: cleaning and preparing metal surfaces on heavy equipment and structural components.
- Fabrication operations: assisting with surface conditioning before welding, coating, or repair procedures.
- General metal preparation: supporting maintenance tasks where pneumatic needle scaling is required.
FAQs:
- Q: What is the Ingersoll Rand 180PG used for?
A: The 180PG is a pneumatic needle scaler designed for removing rust, scale, coatings, and surface buildup from metal components. - Q: What is the impact rate of the 180PG?
A: The manufacturer specification lists the tool at 2,200 blows per minute. - Q: What does the 1.54" stroke length mean?
A: Stroke length refers to the distance the needles travel during each impact cycle. The 180PG has a listed stroke length of 1.54". - Q: What is the advantage of using a needle scaler?
A: A needle scaler uses repeated pneumatic impacts to help remove surface contaminants from metal areas that may be difficult to clean with manual methods. - Q: What should be considered before operating the 180PG?
A: Confirm that the compressed-air supply is suitable for the tool and select the appropriate surface preparation method for the material being cleaned.
| SKU | Handle Description | Stroke in (mm) | Bore in (mm) | Weight lb (kg) | Length in (mm) | bpm | cfm | Inlet Size NPT in | Recommended Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|
| NEEDLE SCALERS | |||||||||
| 172LNA1 | In-line | 0.56" (14) | 0.88" (24) | 5.25 (2.38) | 13.75" (349) | 5,500 | 12 | 1/4" | 5/16" (8) |
| 182LNA1 | In-line | 1.06" (27) | 0.88" (24) | 5.75 (2.61) | 15" (381) | 4,000 | 13 | 1/4" | 5/16" (8) |
| 170PG | Pistol grip | 1.4" (35.6) | 0.925" (23.5) | 6.62 (3.00) | 12.4" (315) | 3,000 | 5.5 | 1/4" | 5/16" (8) |
| 180PG | Pistol grip | 1.54" (39.1) | 1.125" (28.6) | 8.88 (4.03) | 13.5" (343) | 2,200 | 8 | 1/4" | 5/16" (8) |
| CHISEL SCALERS | |||||||||
| 172L | In-line | 0.56" (14) | 0.88" (24) | 3.69 (1.69) | 7.63" (194) | 5,500 | 12 | 1/4" | 5/16" (8) |
| 182G | Swan neck | 1.06" (27) | 0.88" (24) | 5.31 (2.41) | 12.81" (325) | 4,000 | 13 | 1/4" | 5/16" (8) |
| 182L | In-line | 1.06" (27) | 0.88" (24) | 4.06 (1.84) | 9" (229) | 4,000 | 13 | 1/4" | 5/16" (8) |
| 170PG-CS | Pistol grip | 1.4" (35) | 0.93" (23) | 5.32 (2.4) | 12.4" (314) | 3,000 | 5.5 | 1/4" | 5/16" (8) |
| 180PG-CS* | Pistol grip | 1.54" (39) | 1.13" (28) | 6.81 (3.1) | 12.4" (314) | 2,200 | 8 | 1/4" | 5/16" (8) |
