Coxreels 1275-4-50-E Dual Hose Electric DC Motor Rewind Reel is designed for large-capacity fluid handling applications where powered hose retrieval and dual-line service are required. Part of the 1275 Series, this motorized reel accommodates 1/2" hose with a 50' hose capacity and is rated for 3,000 PSI maximum pressure. Its electric DC motor provides powered rewind, while the dual-plumbing design uses two separate fluid paths to support two hose lines from a single reel location.
The 1275-4-50-E features two solid-brass 90° full-flow NPT swivel inlets, two low-profile outlet risers, and an open drum slot that helps provide a flat, smooth hose wrap without crimping. Its one-piece welded steel "A" frame, ribbed discs, permanently lubricated self-aligning pillow block bearings, and direct gear-drive rewind provide a robust reel platform for demanding service environments. This model is supplied less hose, so compatible hose must be selected and installed separately.

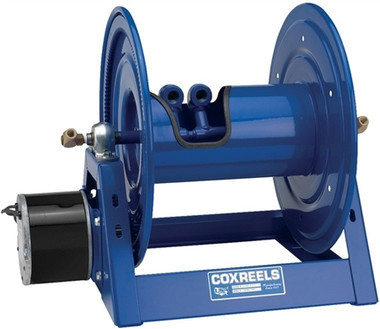

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hose Electric Motor Rewind Reel | Series: 1275 Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 50' | Max Pressure: 3,000 PSI | Rewind: Electric DC Motor | Swivel: Two 90° Full-Flow NPT Swivels | Dimensions: 22.63" W x 19.13" H x 17.63" L
Features:
- Electric DC motor rewind reduces the manual effort required to retrieve and store hose.
- Dual plumbing provides two separate fluid paths for applications requiring two hose lines.
- Two solid-brass 90° full-flow NPT swivel inlets support hose installation and fluid routing from each side of the reel.
- Two low-profile outlet risers and an open drum slot help create a flat, smooth hose wrap while reducing hose crimping.
- One-piece, all-welded 12-gauge steel "A" frame provides a rigid mounting structure.
- CNC-spun, ribbed discs with rolled edges provide added structural support and help protect the hose during storage.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation.
- Direct gear-drive rewind eliminates the need for a chain and provides smooth motorized retraction.
- CPC powder coat finish provides chip resistance and corrosion inhibition for demanding service environments.
Made in USA:
Applications:
- Dual-product delivery systems requiring two separately routed hose lines.
- Industrial fluid handling where powered hose retrieval is preferred.
- Service trucks and mobile maintenance equipment requiring organized dual-hose storage.
- Industrial maintenance stations and equipment service areas.
- Product delivery skids and other fluid-handling installations where the selected hose and fittings meet the 3,000 PSI reel rating.
- Hydraulic and other high-pressure fluid applications when hose, fittings, seals, and fluid compatibility are properly matched to the service.
FAQs:
- Q: What does "less hose" mean?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately and confirm the hose pressure rating, outside diameter, fittings, and fluid compatibility before installation. - Q: What does the dual-hose configuration provide?
A: The 1275-4-50-E has two separate fluid paths, with two swivel inlets and two low-profile outlets, allowing two hose lines to be routed from one reel assembly. - Q: Is the 1275-4-50-E suitable for 3,000 PSI service?
A: Yes. The reel has a maximum pressure rating of 3,000 PSI. The installed hose, fittings, connections, and other system components must also be properly rated for the intended service. - Q: How is the hose rewound?
A: This model uses an electric DC motor with direct gear-drive rewind, providing powered hose retrieval without a chain drive. - Q: What hose size is this reel designed for?
A: The 1275-4-50-E is listed for 1/2-inch hose with a 7/8-inch outside diameter and a 50-foot capacity. - Q: Does the reel include hose?
A: No. The 1275-4-50-E is supplied less hose, so compatible hose must be selected and installed separately.
| LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1275-4-50-A | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-C | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-E | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EA | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EB | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-ED | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EF | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EJ | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-H | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Motor Rewind Reel
- Series
- 1275 Series
- Hose Inside Diameter (in.)
- 1/2
- Hose Outside Diameter (in.)
- 7/8
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
- Width (in.)
- 22.63
- Height (in.)
- 19.13
- Length (in.)
- 17.63
- Mounting Pattern (in.)
- 11.44M
- Mounting Pattern (in.)
- 10N
- Base (in.)
- 13.38X
- Base (in.)
- 16Y
