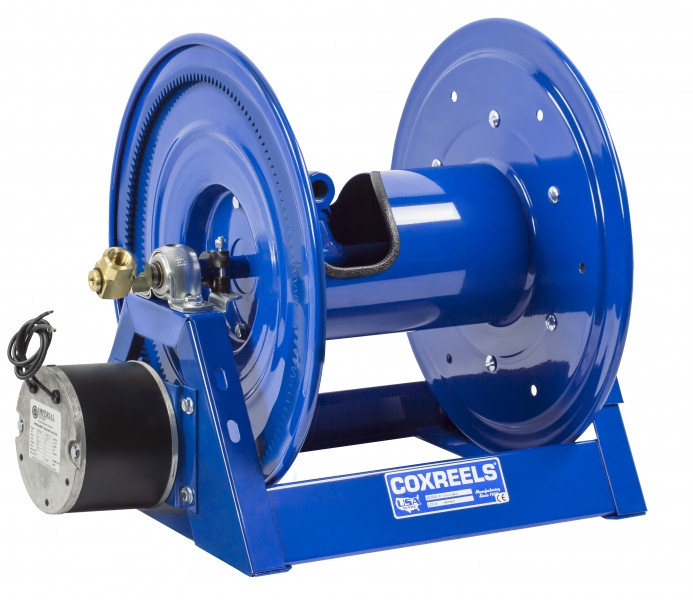

Built for dual-line hose management in medium-pressure hydraulic and product delivery applications, the Coxreels 1275-4-50-H gives maintenance teams a compact motor rewind reel platform for organizing two hose runs on one reel. The 1275 Series construction supports 1/2" I.D. hose with 50 ft capacity and a 3000 PSI maximum pressure rating, making it suited for service trucks, shop bays, hydraulic maintenance areas, and fixed equipment stations where paired lines need to stay routed, protected, and easier to rewind.
This model uses Coxreels dual hose layout with two external fluid paths, two swivel inlets, and two low profile outlets to help the hose wrap flat across the drum. The hydraulic motor rewind configuration is useful where hand-crank operation is not preferred and where powered rewind helps return hose to the reel after use. Its all-welded steel 'A' frame, ribbed discs, pillow block bearings, and direct gear drive are built for dependable reel rotation and stable mounting in demanding work areas.
Type: Dual Hose Hydraulic Motor Rewind Hose Reel | Series: 1275 Series | Configuration: Less Hose | Model: 1275-4-50-H | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 50 ft | Hose Included: No | Max Pressure: 3000 PSI | Ship Weight: 53 lb | Overall Dimensions: 19.88" W x 19.13" H x 17.63" L | Mounting Pattern: 11.44" M x 10" N | Base: 13.38" X x 16" Y | Swivel Seals: Nitrile
Features:
- Dual hose reel layout supports two hose runs on one reel for paired hydraulic lines or other compatible dual-line service applications.
- Two machined-from-solid brass 90° full-flow NPT swivel inlets provide separate external fluid paths, with one inlet positioned on each side of the reel.
- Two low profile outlet risers and an open drum slot help promote a flatter, smoother hose wrap while reducing the chance of hose crimping during rewind.
- All-welded steel 'A' frame construction provides a rigid mounting base and eliminates the looseness associated with bolted frame assemblies.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation with reduced routine bearing maintenance.
- Reliable direct gear drive on motor-driven models delivers smooth rewind operation without a chain drive.
- CNC robotically spun and ribbed discs with rolled edges add drum strength while helping protect hose edges during winding and storage.
- CPC powder coat finish is chip resistant and rust inhibiting for use in shop, fleet, and maintenance environments.
Made in USA:
Applications:
- Hydraulic maintenance areas where two medium-pressure hose lines need to be stored and rewound from a single reel station.
- Fleet service trucks and mobile maintenance setups requiring compact storage for paired hose assemblies.
- Industrial MRO work cells where organized hose routing helps reduce floor clutter around pumps, service equipment, and machinery.
- Equipment service bays handling hydraulic tools, cylinders, lubrication transfer, or compatible dual-line fluid delivery tasks within the reel's pressure rating.
- Manufacturing and repair facilities that need a powered rewind reel to help return longer hose runs after repeated service work.
FAQs:
- Q: What does 'less hose' mean on the 1275-4-50-H?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately and verify hose I.D., O.D., length, pressure rating, and fluid compatibility before installation. - Q: Is this a single hose reel or a dual hose reel?
A: This is a dual hose reel. It is built with two fluid paths, two swivel inlets, and two outlet risers so two compatible hose lines can be managed on the same reel. - Q: What hose size fits this model?
A: This model is listed for 1/2" I.D. hose with 7/8" O.D. and 50 ft hose capacity. Because the reel is sold without hose, the hose selected must match the reel capacity and the application requirements. - Q: Can this reel be used for hydraulic service?
A: Yes, when the hose, fittings, seals, and fluid are compatible with the system and the application stays within the 3000 PSI maximum pressure rating. Always confirm the complete hose assembly rating before use. - Q: What is the benefit of hydraulic motor rewind?
A: Hydraulic motor rewind helps return hose to the reel using powered rewind rather than manual cranking. This can be helpful on mobile service equipment, shop installations, and workstations where repeated hose payout and rewind are part of the job.
| LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1275-4-50-A | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-C | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-E | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EA | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EB | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-ED | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EF | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-EJ | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
| 1275-4-50-H | 1/2" | 7/8" | 2/50 | 3/8" | 3/4" | 2/70 | 1/2" F NPT | 3,000 | 40 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
