Coxreels 1175-6-150-EA Electric 115V AC Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 150' Hose Length | 3000 Max PSI | Less Hose

For stationary fluid-transfer systems that need powered retrieval of a long, large-diameter hose, the Coxreels 1175-6-150-EA combines a 115V AC explosion-proof electric motor with capacity for 150 feet of 1-inch I.D. hose. The reversible 1/2 HP motor eliminates manual cranking and operates from a compatible 115V AC electrical supply. Its 3,000 PSI maximum pressure rating supports properly matched lubrication, hydraulic, high-flow water, and chemical-fluid transfer systems where every wetted component is suitable for the pressure, temperature, and media involved.

The motor turns the drum through a chain-and-sprocket drive, providing reliable mechanical power for hose retrieval. Coxreels builds the 1175 Series on a one-piece, all-welded steel "A" frame with a low-profile outlet riser and open drum slot, helping the hose form smooth, even wraps instead of bunching near the connection. Permanently lubricated, self-aligning pillow block bearings support consistent drum rotation, while an adjustable tension brake limits unwanted free-wheeling during hose payout.

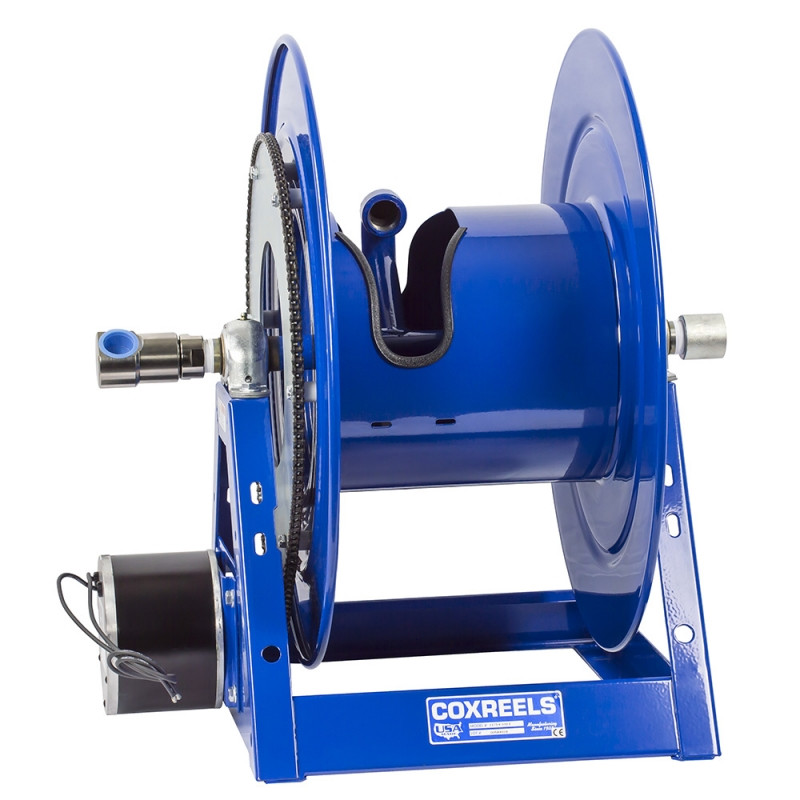

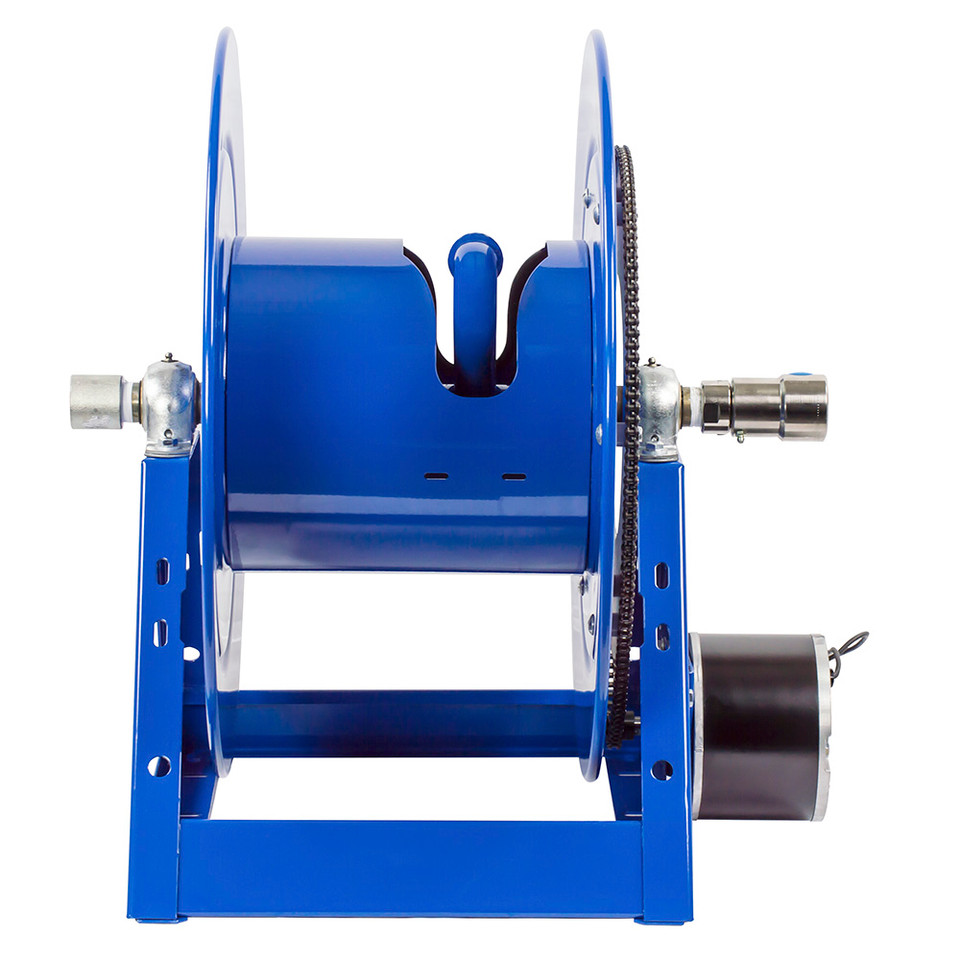

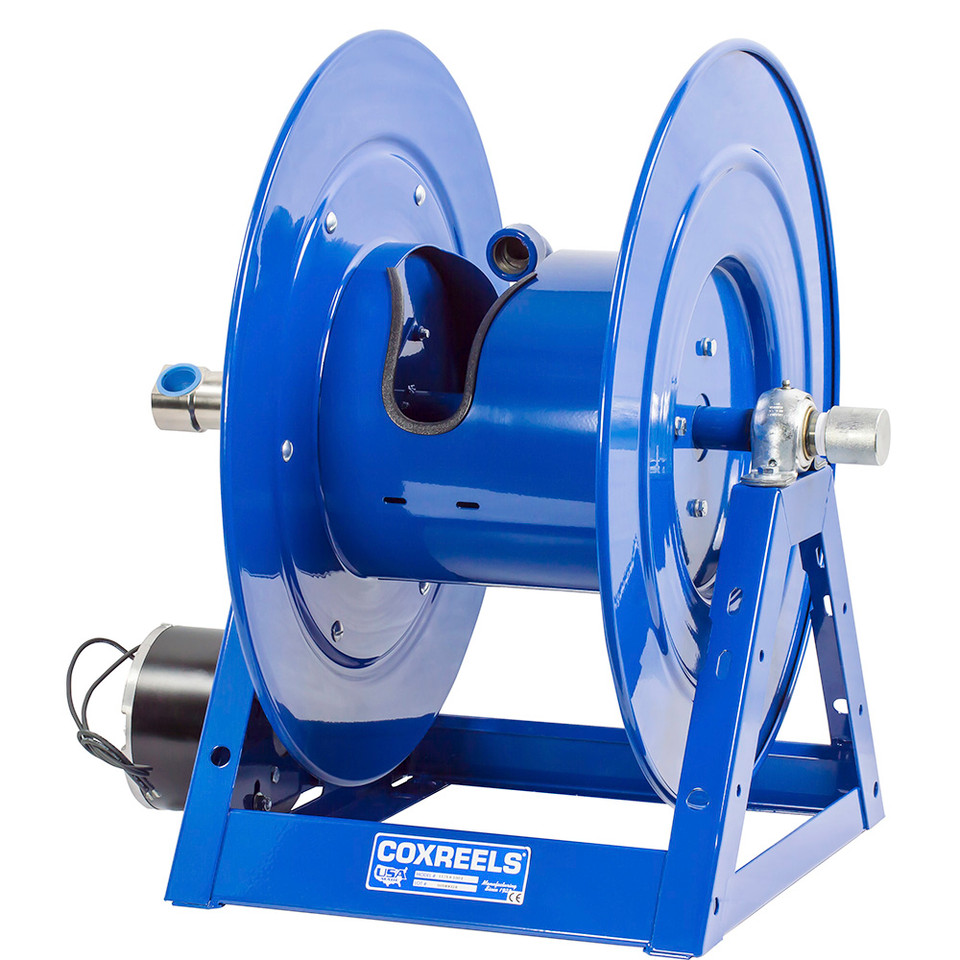

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric AC Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-150-EA | Configuration: Less Hose | Motor: Explosion-Proof 115V AC, 1/2 HP, Reversible | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 150 ft | Max Pressure: 3,000 PSI

Features:

• Explosion-proof 115V AC reversible electric motor provides powered hose retrieval from a compatible alternating-current electrical supply.
• 1/2 HP motor supplies the rewind power needed to manage the reel's large hose capacity.
• Reliable chain-and-sprocket drive transfers motor output to the reel drum.
• External fluid path incorporates a nickel-plated steel 90-degree full-flow NPT swivel inlet.
• AFLAS swivel seals support the reel's medium-pressure fluid path.
• One-piece, all-welded steel "A" frame provides a rigid base for stationary equipment or vehicle installation.
• Low-profile outlet riser and open drum slot encourage flat, even hose wraps around the drum.
• Permanently lubricated, self-aligning pillow block bearings promote smooth drum rotation.
• Adjustable tension brake helps prevent unwanted free-wheeling during hose deployment.
• Long-handled locking pin secures the drum against rotation during transport or storage.
• Rolled disc edges and ribbed steel discs add strength while reducing sharp-edge exposure around the hose.
• Chip-resistant CPC powder-coat finish helps protect the steel structure from corrosion and surface damage.

Made in USA:

2 Year Warranty

Applications:

• Industrial lubrication stations dispensing compatible oils, greases, and service fluids through properly rated hose.
• Chemical-fluid transfer systems where the hose, seals, fittings, and reel fluid path are verified for the transferred media.
• High-flow water delivery installations requiring organized storage for a long 1-inch hose run.
• Fire-suppression equipment using components selected for the system's operating pressure and service requirements.
• Construction and plant maintenance locations with access to a compatible 115V AC electrical supply.
• Fixed hydraulic and fluid-handling equipment where powered rewind reduces manual handling of large-diameter hose.

FAQs:

• Q: Does the Coxreels 1175-6-150-EA include hose?
  A: No. This model is supplied as a bare reel without hose. The selected hose must fit the reel's dimensional capacity and be compatible with the application pressure, temperature, fittings, and transferred fluid.
• Q: What does the "EA" motor suffix mean?
  A: The EA suffix identifies an explosion-proof, reversible 115V AC electric motor rated at 1/2 HP. It differs from the standard E option, which uses a 12V DC motor.
• Q: Can the reel hold a different hose size?
  A: The standard capacity is 150 feet of 1-inch I.D. hose with a 1-7/16-inch O.D. The catalog also lists an optional reduced-hose configuration accommodating up to 250 feet of 3/4-inch I.D. hose with a 1-1/4-inch O.D.
• Q: Is an explosion-proof motor suitable for every hazardous location?
  A: Not automatically. The motor's approval details, electrical classification, installation method, controls, and local code requirements must match the specific hazardous location. Have a qualified professional confirm suitability before installation.
• Q: How much installation space does the reel require?
  A: The reel measures 30 inches wide, 26-1/8 inches high, and 24 inches long. Allow additional room for hose travel, electrical connections, motor service access, and any roller brackets or controls used with the installation.
