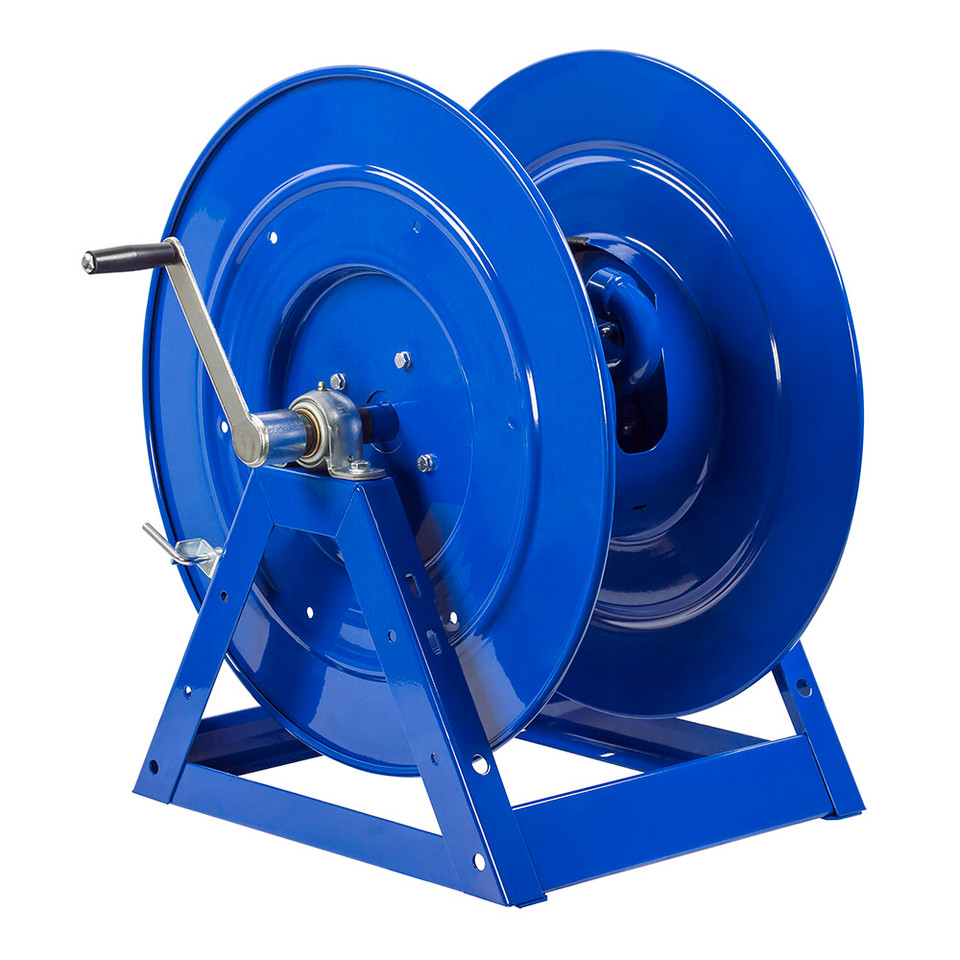

Coxreels 1175-6-150 Hand Crank Hose Reel | 1175 Series | 1" Hose Diameter | 150' Hose Length | 3000 Max PSI | Less Hose

Built for managing long runs of large-diameter hose, the Coxreels 1175-6-150 hand crank hose reel provides capacity for up to 150 feet of 1-inch I.D. hose. Its 3,000 PSI maximum pressure rating supports compatible medium-pressure fluid-transfer and hydraulic applications, while the enlarged 1175 Series chassis accommodates the hose diameter and drum width required for high-volume delivery systems. The direct hand crank provides controlled manual retrieval without requiring electrical, hydraulic, or pneumatic rewind power.

The reel uses a one-piece, all-welded 12-gauge steel "A" frame to maintain structural stability when mounted to a truck, service platform, shop floor, or stationary equipment base. A low-profile outlet riser and open drum slot help the hose form flat, even wraps without pinching at the connection point. Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation, while the adjustable tension brake helps prevent uncontrolled free-spooling during hose payout.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Hose Reel | Series: 1175 Series | Model: 1175-6-150 | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 150 ft | Max Pressure: 3,000 PSI

Features:

• Large-capacity 1175 Series chassis accommodates up to 150 feet of 1-inch I.D. hose.
• Solid steel direct hand crank with a smooth round handle provides controlled mechanical hose retrieval.
• Nickel-plated steel 90-degree full-flow NPT swivel inlet supports unrestricted flow through the reel and simplifies hose installation.
• AFLAS swivel seals support the reel's specified pressure capability and fluid path.
• Exclusive low-profile outlet riser and open drum slot promote flat, smooth hose wraps while reducing the chance of crimping near the outlet.
• One-piece, CNC robotically welded 12-gauge steel "A" frame provides a rigid mounting structure without bolted frame joints.
• Permanently lubricated, self-aligning pillow block bearings help the drum rotate smoothly under changing hose loads.
• Adjustable tension brake limits free-wheeling, while the long-handled locking pin secures the drum during transport or storage.
• Robotically spun, ribbed steel discs feature rolled edges for added strength, hose protection, and safer handling.
• Chip-resistant, rust-inhibiting CPC powder-coat finish helps protect exposed steel surfaces.

Made in USA:

2 Year Warranty

Applications:

• Service trucks and fleet maintenance vehicles requiring organized storage and manual retrieval of long 1-inch hose runs.
• Industrial maintenance and MRO stations handling compatible medium-pressure fluid-transfer or hydraulic lines.
• Agricultural equipment service setups where a large-capacity reel keeps hose contained between field maintenance tasks.
• Lubrication and bulk-fluid delivery systems requiring a stationary or vehicle-mounted reel rated up to 3,000 PSI.
• Construction and utility service equipment where electrical or pneumatic rewind power is unavailable or unnecessary.

FAQs:

• Q: Does the Coxreels 1175-6-150 include hose?
  A: No. This model is supplied as a bare reel without hose. The user must select and install a compatible hose that does not exceed the reel's 1-inch I.D., 1-7/16-inch O.D., 150-foot capacity, or 3,000 PSI rating.
• Q: How is the hose rewound onto the reel?
  A: The hose is retrieved with the solid steel direct hand crank. The front bevel-geared crank provides mechanical rewind, while the adjustable tension brake helps control drum movement.
• Q: What mounting space is required?
  A: The reel measures 32.13 inches wide, 26.13 inches high, and 24 inches long. Its mounting pattern is 18.81 inches by 13.75 inches, so the supporting surface should be checked against these dimensions before installation.
• Q: Can this reel be used above 3,000 PSI?
  A: No. The manufacturer lists 3,000 PSI as the maximum pressure. The installed hose, fittings, and system components must also be rated for the application's operating pressure and fluid.
• Q: What keeps the reel from rotating during transport?
  A: A long-handled locking pin secures the drum against rotation during transport or storage. The tension brake is used to manage free-spooling during normal hose payout.
