Coxreels 1175-6-150-E Electric DC Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 150' Hose Length | 3000 Max PSI | Less Hose

For mobile service equipment and fixed installations that need powered retrieval of long, large-diameter hose, the Coxreels 1175-6-150-E combines a 12V DC electric motor rewind with capacity for 150 feet of 1-inch I.D. hose. The 12V configuration allows the reel to operate from a compatible vehicle or equipment electrical system, eliminating manual cranking when returning hose to the drum. Its 3,000 PSI maximum pressure rating supports properly matched medium-pressure hydraulic, lubrication, and compatible fluid-transfer systems.

The reversible 1/3 HP motor drives the drum through a chain-and-sprocket mechanism, providing powered retrieval while allowing hose to be deployed as the job requires. Coxreels builds the enlarged 1175 Series chassis around a one-piece, all-welded steel "A" frame for stable mounting. A low-profile outlet riser and open drum slot encourage smooth, even hose wraps, while self-aligning pillow block bearings help maintain consistent drum rotation as the hose load changes.

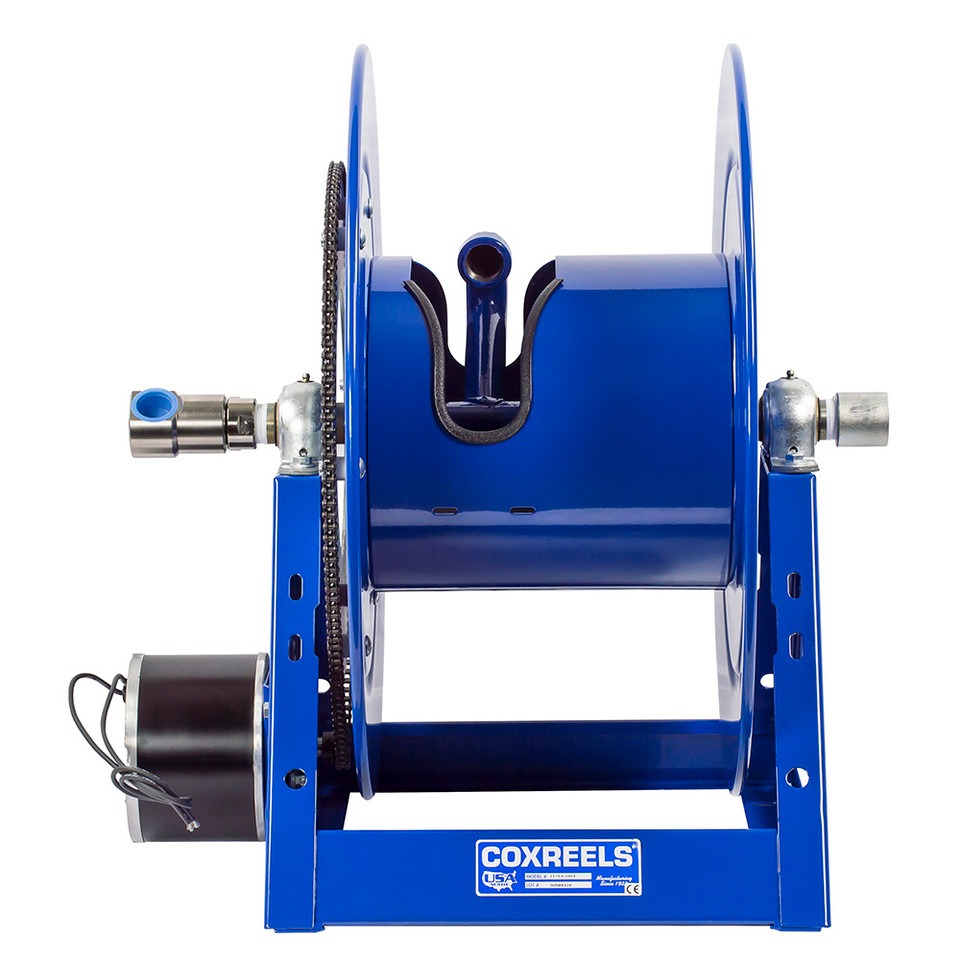

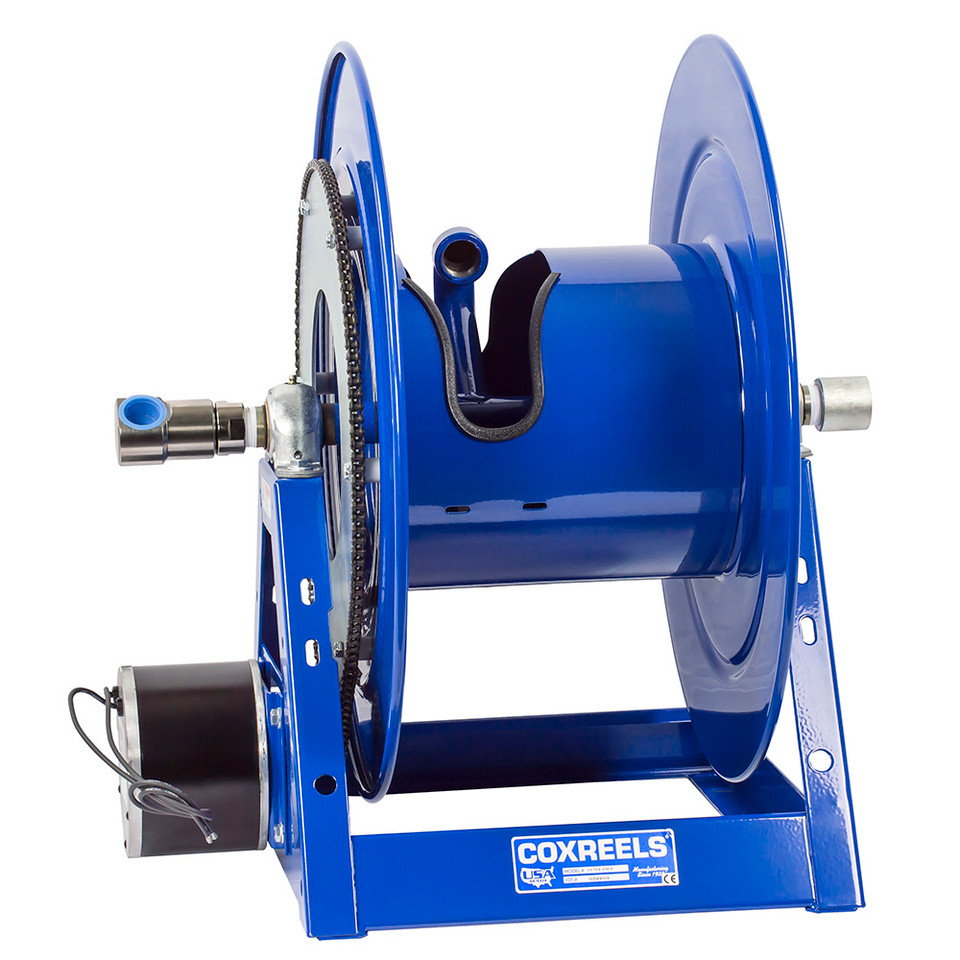

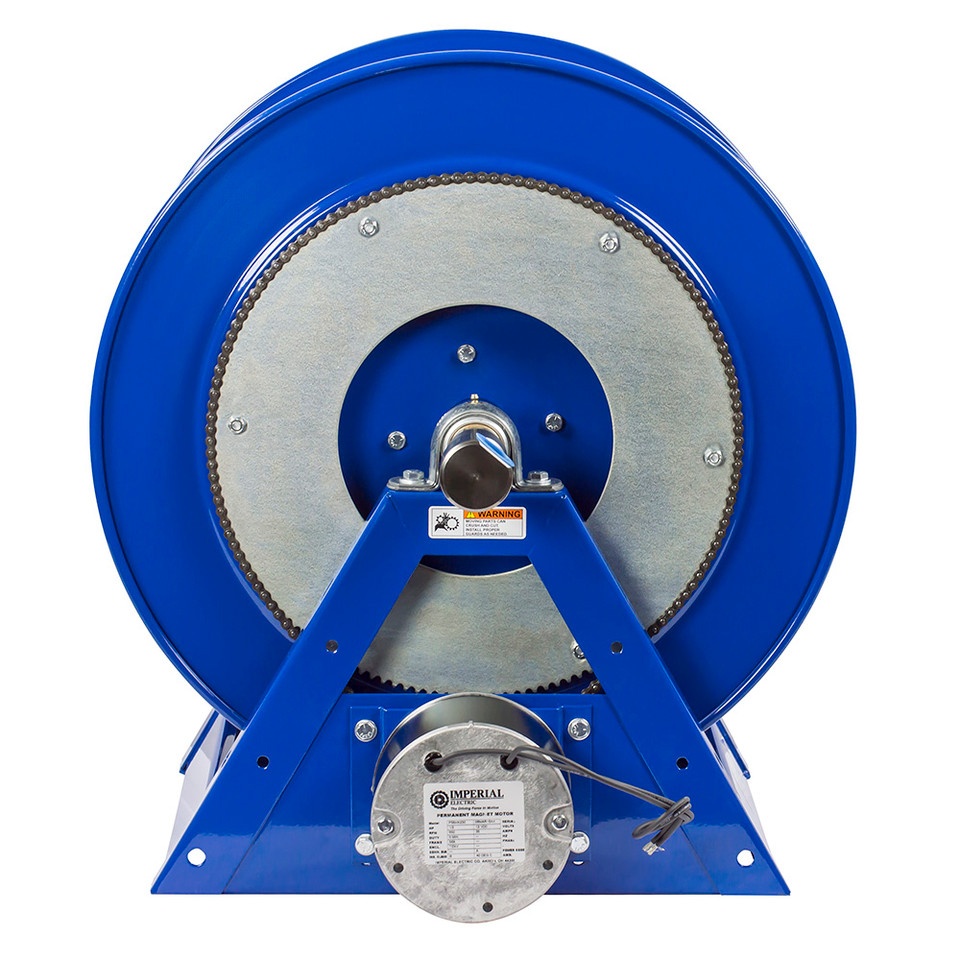

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric DC Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-150-E | Configuration: Less Hose | Motor: 12V DC, 1/3 HP, Reversible | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 150 ft | Max Pressure: 3,000 PSI

Features:

• 12V DC reversible electric motor supplies powered hose retrieval from a compatible direct-current electrical source.
• Reliable chain-and-sprocket drive transfers motor output to the reel drum.
• External fluid path uses a nickel-plated steel 90-degree full-flow NPT swivel inlet for an accessible hose connection and unrestricted flow path.
• AFLAS swivel seals support the reel's specified medium-pressure fluid path.
• One-piece, all-welded steel "A" frame construction provides a rigid base for vehicle-mounted or stationary installation.
• Low-profile outlet riser and open drum slot help the hose form flat, even wraps without bunching near the connection point.
• Permanently lubricated, self-aligning pillow block bearings promote smooth drum rotation with reduced routine bearing maintenance.
• Adjustable tension brake helps prevent excessive free-wheeling while the hose is being deployed.
• Long-handled locking pin secures the reel against rotation during transport or storage.
• Rolled disc edges and ribbed steel discs add strength while reducing sharp-edge exposure around the hose.
• Durable CPC powder-coat finish helps protect the steel structure from chips and corrosion.

Made in USA:

2 Year Warranty

Applications:

• Fleet and field-service trucks using a compatible 12V electrical system to power hose retrieval.
• Mobile lubrication equipment dispensing compatible oils, greases, or service fluids through properly rated hose.
• Construction and utility vehicles that require organized storage for long 1-inch hose runs.
• Agricultural service units supporting field maintenance, equipment lubrication, or compatible fluid transfer.
• Industrial maintenance stations where electric rewind reduces manual handling of large-diameter hose.
• High-flow water or chemical-fluid transfer systems when every wetted component is verified for media and pressure compatibility.

FAQs:

• Q: Does the Coxreels 1175-6-150-E include hose?
  A: No. This model is supplied less hose, so the hose must be selected and installed separately. The chosen hose should fit the reels' 1-inch I.D., 1-7/16-inch O.D., and 150-foot capacity limits and must be compatible with the application pressure and fluid.
• Q: What power source does the electric rewind motor require?
  A: The "E" motor option uses 12V DC power and is rated at 1/3 HP. The vehicle or equipment electrical system, wiring, switching, and circuit protection must be sized for the motor according to Coxreels installation requirements.
• Q: Is the 1175-6-150-E an explosion-proof hose reel?
  A: No. The standard "E" option is a 12V DC reversible motor and is not identified as explosion-proof. Coxreels lists separate explosion-proof motor suffixes for applications that require that configuration.
• Q: Can this reel operate above 3,000 PSI?
  A: No. The reel's maximum pressure is 3,000 PSI. The installed hose, fittings, swivel connection, and remaining system components must also carry suitable working-pressure ratings.
• Q: How much room should be allowed for installation?
  A: The reel measures 30 inches wide, 26-1/8 inches high, and 24 inches long, with a base footprint of approximately 21 inches by 20-1/8 inches. Additional clearance should be provided for hose travel, wiring, motor access, and any optional roller brackets or controls.
