When a long, large-diameter hose must be retrieved without manual cranking, the Coxreels 1175-6-150-A uses a compressed air motor rewind to bring the hose back onto the drum. The reel accommodates up to 150 feet of 1-inch I.D. hose, providing substantial reach for truck-mounted service systems, plant maintenance stations, and fluid-delivery equipment. Its 3,000 PSI maximum pressure rating supports compatible medium-pressure hydraulic and fluid-transfer applications when the installed hose, fittings, and system components carry matching ratings.
The enlarged 1175 Series chassis combines a one-piece, all-welded 12-gauge steel "A" frame with a chain-and-sprocket drive for powered hose retrieval. A low-profile outlet riser and open drum slot help the hose form flat, even wraps without pinching near the connection point. Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation, while the air-powered motor makes this configuration well suited to locations where compressed air is readily available and electrical rewind power is undesirable or unavailable.

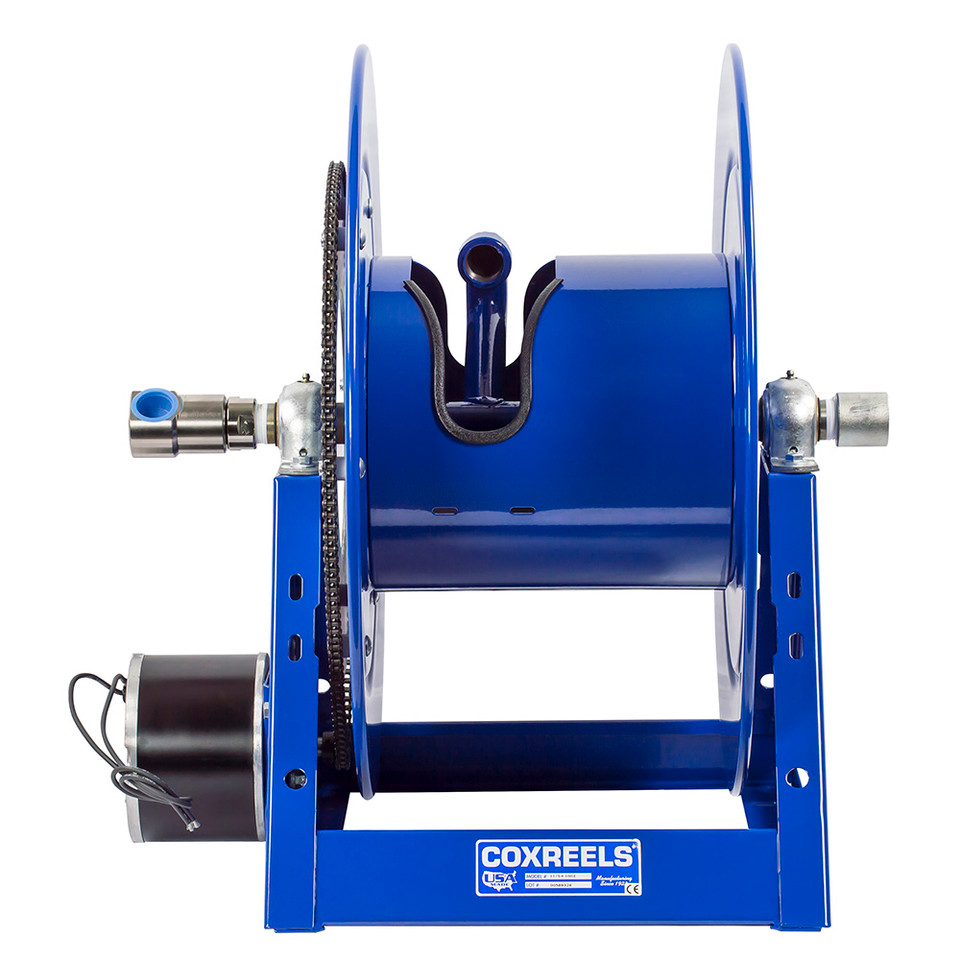

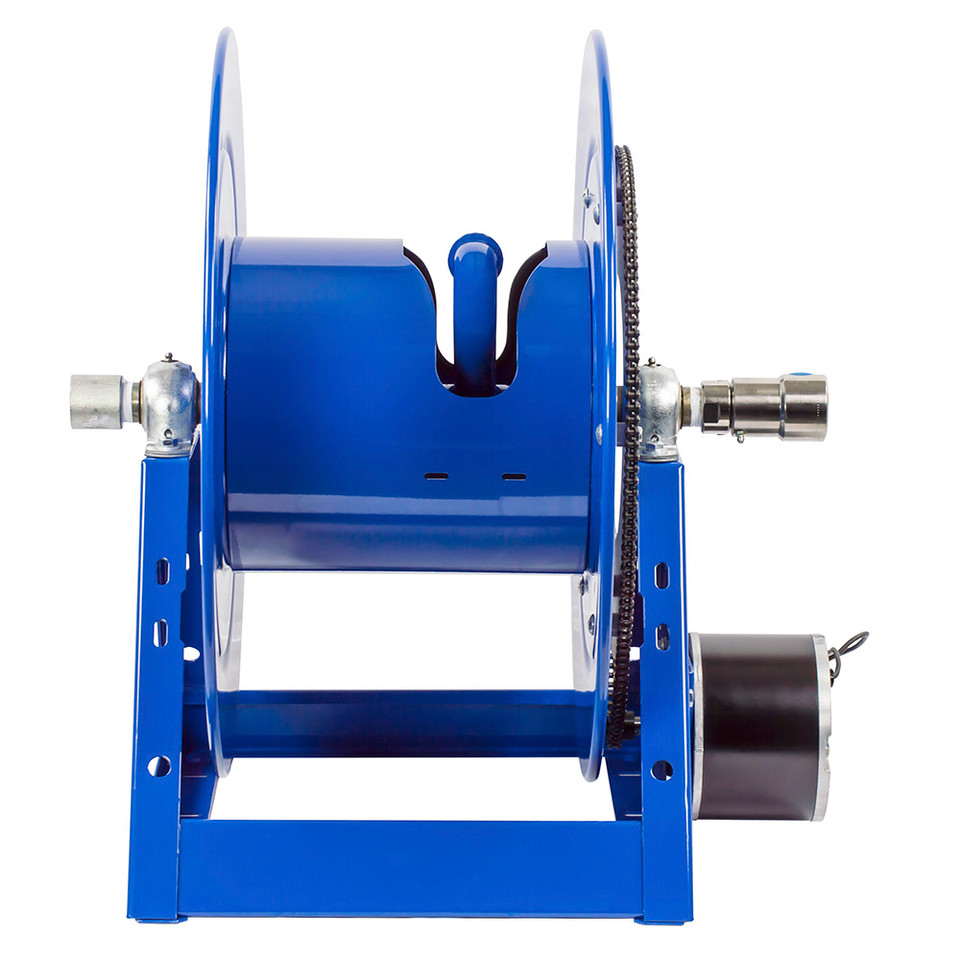

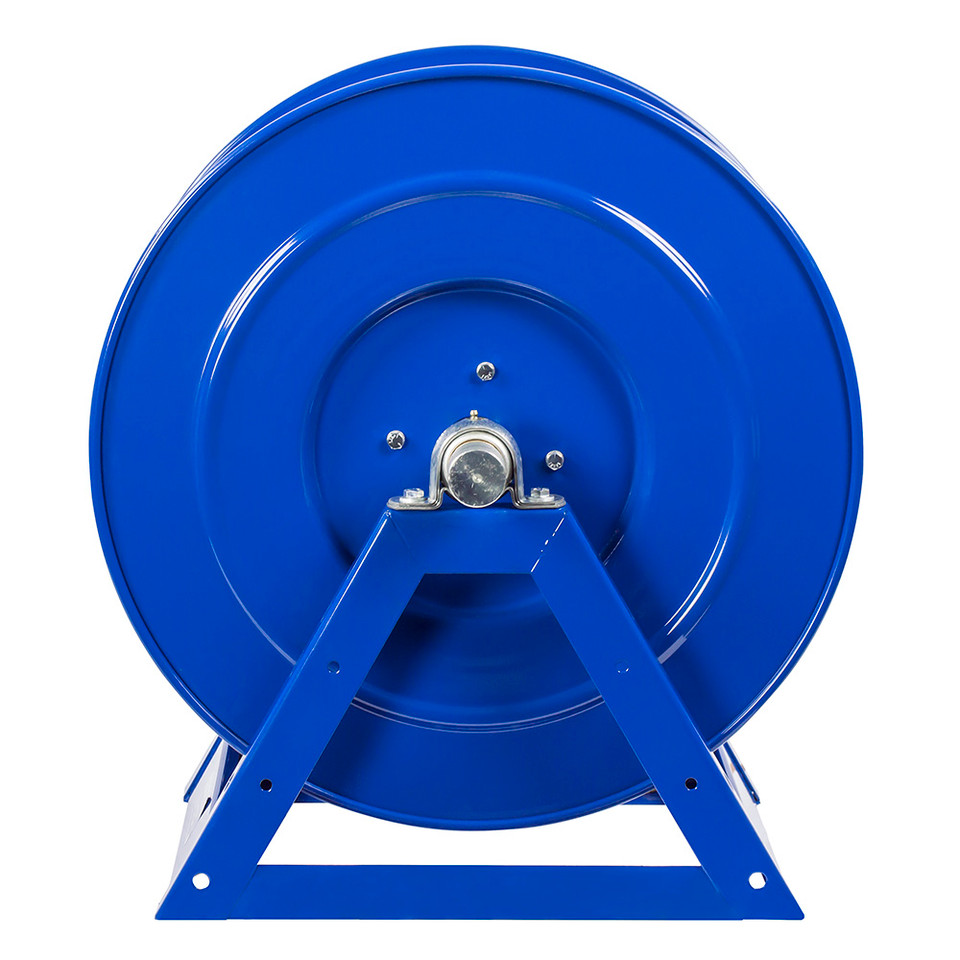

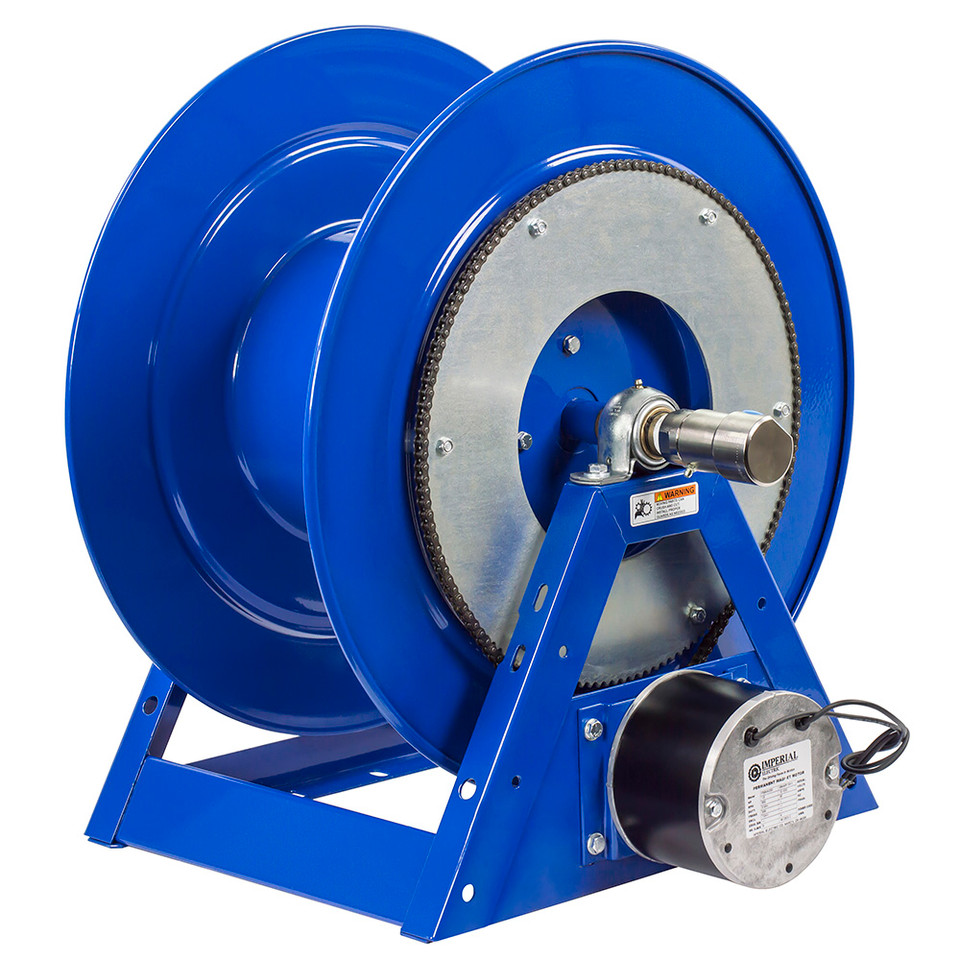

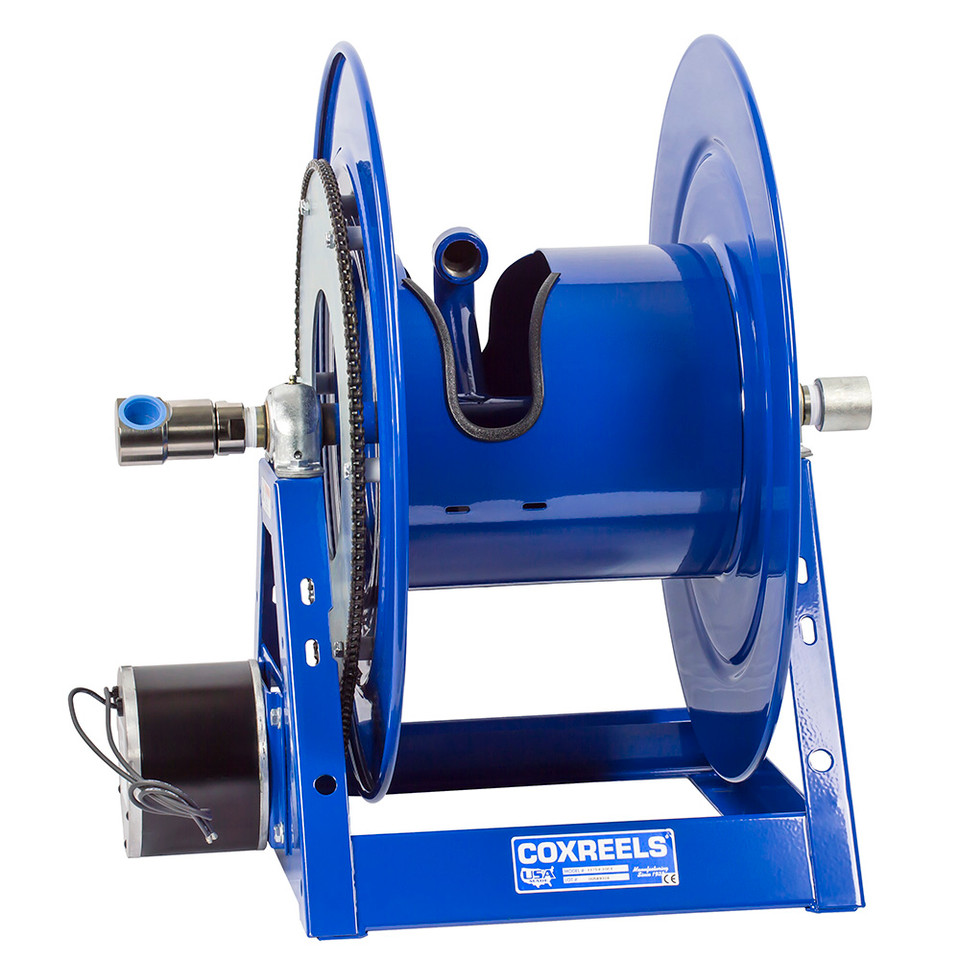

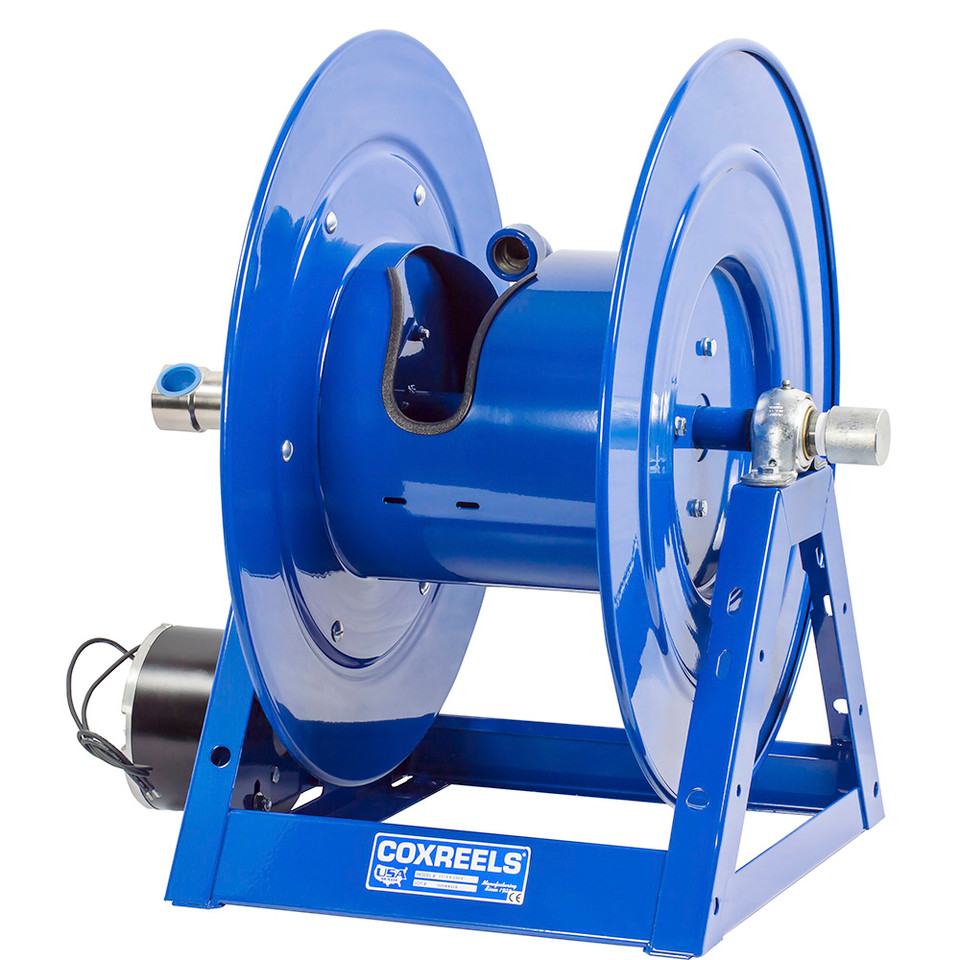

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Compressed Air Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-150-A | Configuration: Less Hose | Drive Type: Compressed Air Motor | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 150 ft | Max Pressure: 3,000 PSI
Features:
- Compressed air motor provides powered hose retrieval where a plant or vehicle air supply is available.
- Large-capacity 1175 Series chassis holds up to 150 feet of 1-inch I.D. hose.
- Reliable chain-and-sprocket drive transfers motor power to the reel drum during rewind.
- One-piece, CNC robotically welded 12-gauge steel "A" frame provides a rigid mounting structure without bolted frame joints.
- Low-profile outlet riser and open drum slot promote flat, smooth hose wraps while reducing pinching near the outlet connection.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation and consistent alignment.
- External fluid path simplifies access to the swivel and hose connection components.
- Nickel-plated steel 90-degree full-flow NPT swivel inlet supports unrestricted flow through the reel.
- AFLAS swivel seals support the reel's specified pressure capability and fluid path.
- Chip-resistant, rust-inhibiting CPC powder-coat finish helps protect exposed steel surfaces.
Made in USA:
Applications:
- Service and lubrication trucks that already carry an onboard compressed air system for powered reel operation.
- Industrial maintenance and MRO stations managing long runs of compatible hydraulic or fluid-transfer hose.
- Fleet, construction, and agricultural equipment service setups where powered rewind reduces manual hose handling.
- Plant fluid-delivery systems requiring a stationary reel with 1-inch hose capacity and a pressure rating up to 3,000 PSI.
- Remote or specialized work areas where pneumatic power is preferred over an electric rewind motor.
FAQs:
- Q: Does the Coxreels 1175-6-150-A come with hose installed?
A: No. This is a less-hose reel, so compatible hose must be purchased and installed separately. The selected hose should not exceed the reel's 1-inch I.D., 1-7/16-inch O.D., 150-foot capacity, or 3,000 PSI rating. - Q: What does the "A" suffix mean on this model?
A: The "A" identifies a compressed air motor rewind configuration. The motor powers the reel during retrieval instead of requiring the operator to turn a hand crank. - Q: Does the air motor carry fluid through the hose?
A: No. Compressed air powers the rewind motor only. The reels' separate fluid path carries the application media through the swivel and installed hose. - Q: How much mounting space does this reel require?
A: The reel measures 28.5 inches wide, 26.13 inches high, and 24 inches long. Its mounting pattern is 18.81 inches by 13.75 inches, with a 21-inch by 20.13-inch base footprint. - Q: Can the reel be operated above 3,000 PSI?
A: No. The manufacturer lists 3,000 PSI as the maximum reel pressure. The hose, fittings, and remaining system components must also be compatible with the operating pressure and transferred fluid.
| LESS HOSE | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1175-6-150 | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-A | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-AB | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-C | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-E | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-EA | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-EB | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-ED | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-EF | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-EJ | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
| 1175-6-150-H | 1" | 1 7/16" | 150 | 3/4" | 1 1/4" | 250 | 1" F NPT 90° | 1" F NPT | 3,000 | 75 | 4 |
