Coxreels 1175-6-125-E Electric DC Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 125' Hose Length | 3000 Max PSI | Less Hose

Built for installations that require powered hose retrieval without relying on compressed air, the Coxreels 1175-6-125-E Electric DC Motor Rewind Hose Reel combines a rugged motorized drive with the capacity to store 125 feet of 1-inch I.D. hose. Part of the 1175 Series, this reel is well suited for service trucks, mobile equipment, industrial facilities, and remote job sites where a 12V or 24V DC electrical system can provide controlled hose rewind. Its 3,000 PSI maximum working pressure supports demanding fluid transfer applications when used with appropriately rated hose and fittings.

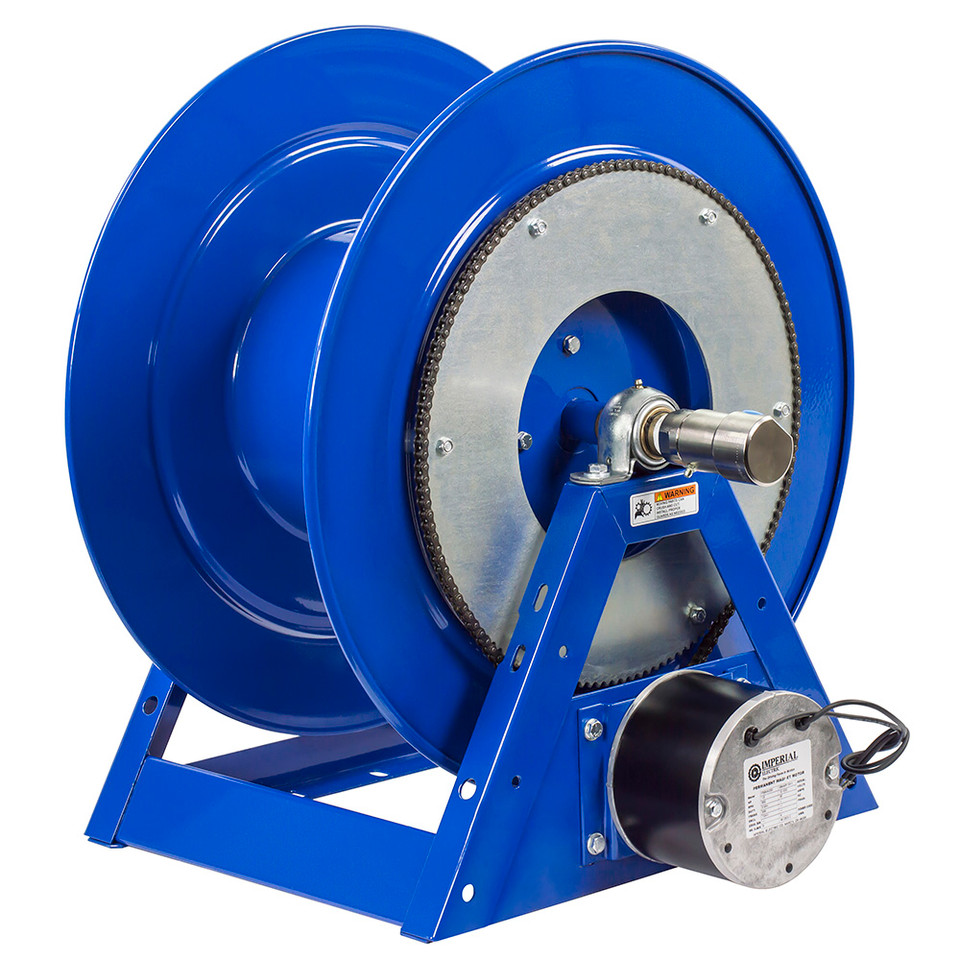

An electric DC motor powers the chain-and-sprocket rewind system, reducing manual effort while providing consistent hose retrieval over long distances. The low-profile outlet riser encourages smooth hose payout and wrap, while permanently lubricated self-aligning pillow block bearings promote reliable drum rotation. A one-piece welded steel A-frame base delivers structural rigidity for permanent installations on service vehicles, maintenance trailers, production facilities, and machinery skids where dependable hose management is essential.

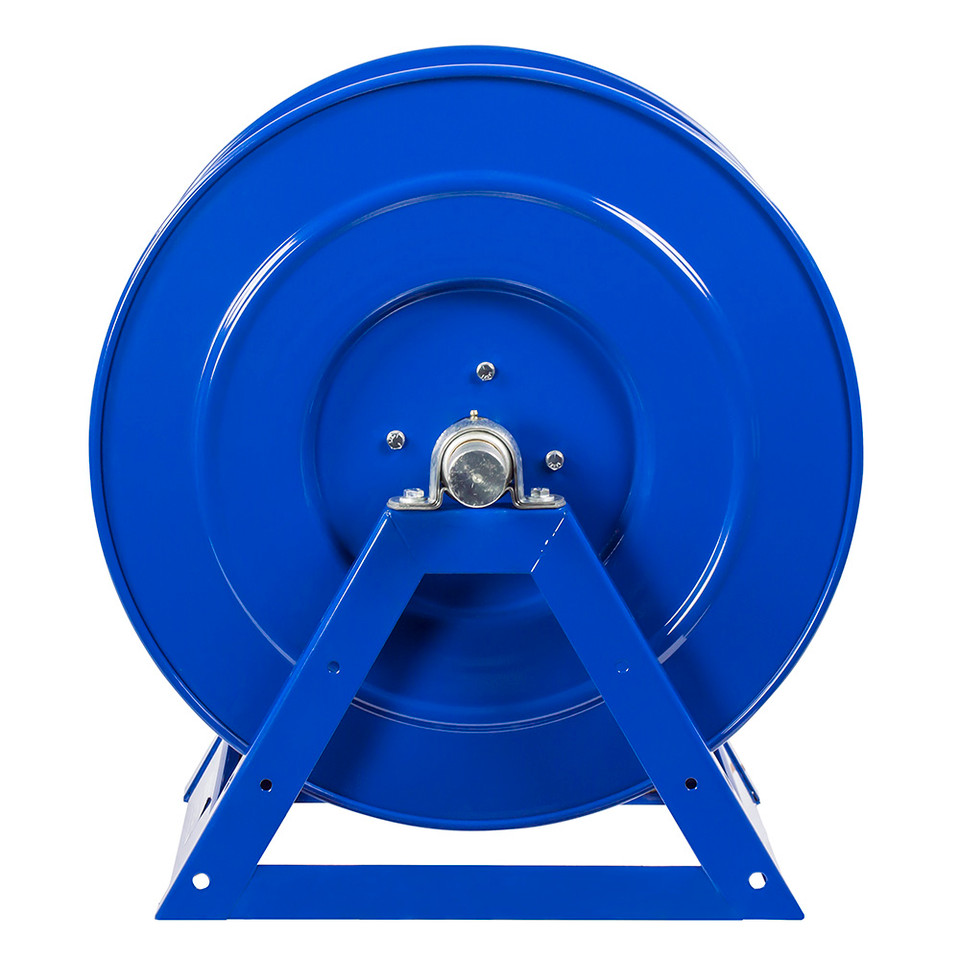

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric DC Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-125-E | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 125 ft | Maximum Working Pressure: 3,000 PSI | Swivel Inlet: 1" Female NPT, 90° | Outlet Riser: 1" Female NPT | Drive: Electric DC Motor | Overall Dimensions: 26.5" W x 26.13" H x 24" L | Mounting Pattern: 16.81" M x 13.75" N | Base Dimensions: 19" X x 20.13" Y

Features:

• Electric DC motor provides powered hose retrieval for installations where compressed air is unavailable or impractical.
• Chain-and-sprocket drive delivers dependable drum rotation during hose rewind.
• One-piece welded 12-gauge steel A-frame base provides strength and rigidity for permanent mounting.
• Nickel-plated steel 90° full-flow NPT swivel maintains unrestricted flow and allows seal servicing without removing the reel from its mounting surface.

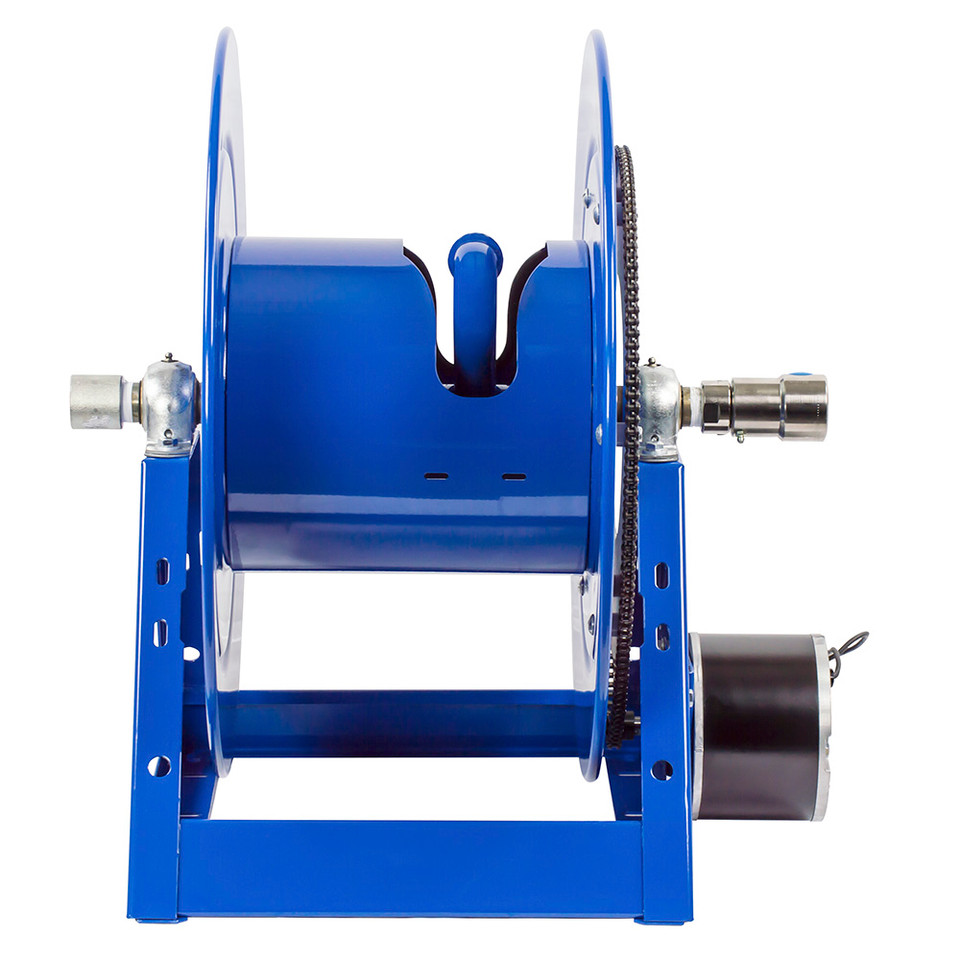

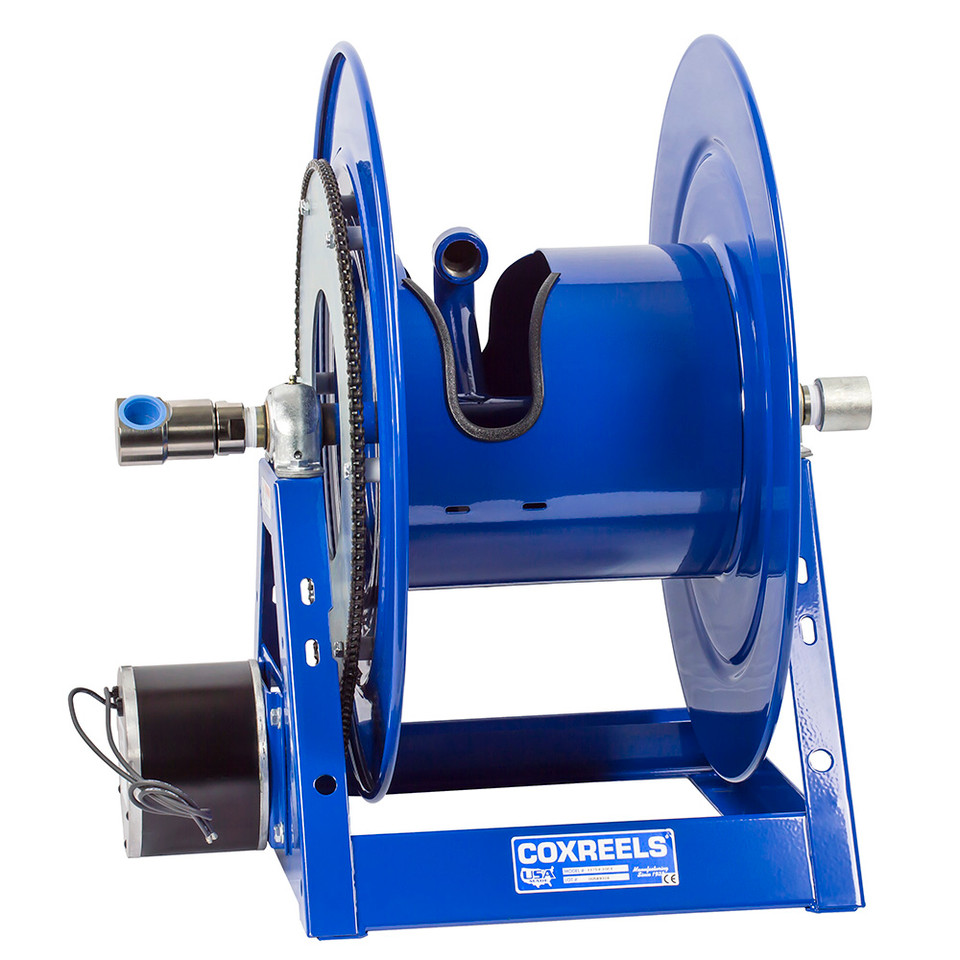

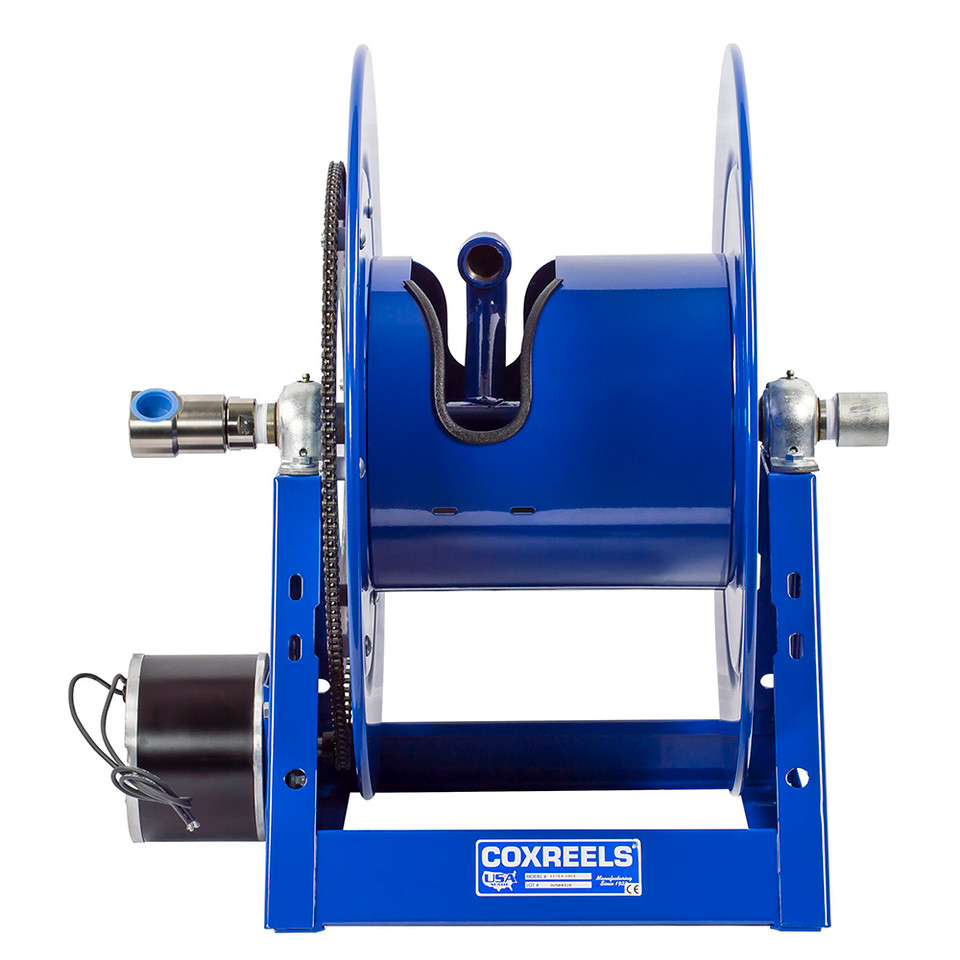

• Low-profile outlet riser and open drum slot help maintain an even hose wrap while minimizing hose stress during payout and retrieval.
• Permanently lubricated self-aligning pillow block bearings support smooth drum operation with minimal maintenance.
• Adjustable external tension brake helps control drum rotation and minimizes unwanted free-spooling.
• Robotically spun ribbed steel side discs with rolled edges improve structural strength while helping protect the hose during operation.

Made in USA:

2 Year Warranty

Applications:

• Service trucks and utility vehicles equipped with DC electrical systems requiring powered hose management.
• Industrial maintenance facilities using long air, oil, water, or compatible hydraulic hose assemblies.
• Construction and heavy equipment support vehicles where manual hose retrieval can slow field operations.
• Manufacturing plants requiring organized hose storage and controlled hose rewind at workstations.
• Mobile machinery and equipment skids where electric-powered hose retrieval improves efficiency and reduces operator effort.

FAQs:

• Q: Does the 1175-6-125-E include a hose?
  A: No. This reel is supplied without hose. A compatible 1-inch I.D. hose meeting the required outside diameter, pressure rating, and application requirements must be installed separately.
• Q: What is the difference between the "-E" and "-A" versions?
  A: The "-E" model uses an electric DC motor to power hose rewind, while the "-A" version uses a compressed air motor. Both utilize the same heavy-duty reel platform but differ in their power source.
• Q: What fluids can this reel handle?
  A: The reel itself is designed for use with compatible air, water, oil, or hydraulic fluid applications when matched with properly rated hose, swivel, fittings, and system components.
• Q: Can this reel operate at the full 3,000 PSI rating?
  A: Yes, provided every component in the hose assembly- including the hose, fittings, and accessories is rated for the intended working pressure. The overall assembly is limited by its lowest-rated component.
• Q: Is the electric motor voltage specified in the manufacturer literature?
  A: The supplied product title identifies an Electric DC Motor Rewind model, but the referenced source material should be consulted to verify the specific operating voltage (such as 12V DC or 24V DC) before ordering.
