Engineered for high-capacity hose management in hazardous environments without AC power, the Coxreels 1175-6-125-EB electric 24V DC explosion-proof motor rewind hose reel delivers safe, automated operation for up to 125' of 1" hose. The DC-powered explosion-proof motor allows efficient hose retraction while maintaining compliance with safety standards in flammable or combustible atmospheres. Rated for 3,000 PSI, the 1175 Series supports air, water, and oil applications, making it ideal for industrial maintenance, automotive/fleet service, and chemical or paint facilities where reliability, safety, and hose longevity are essential.

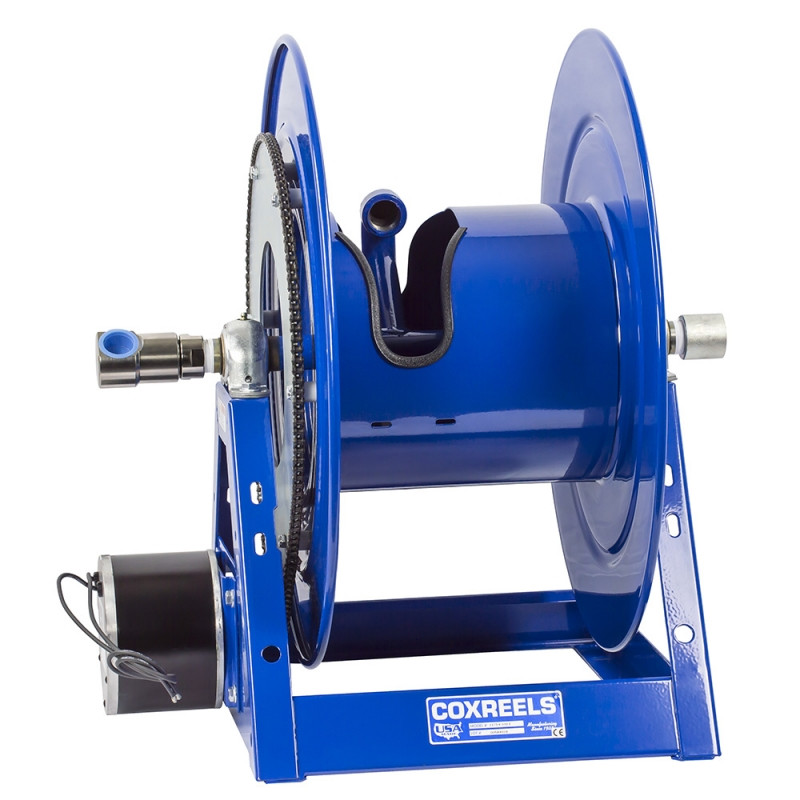

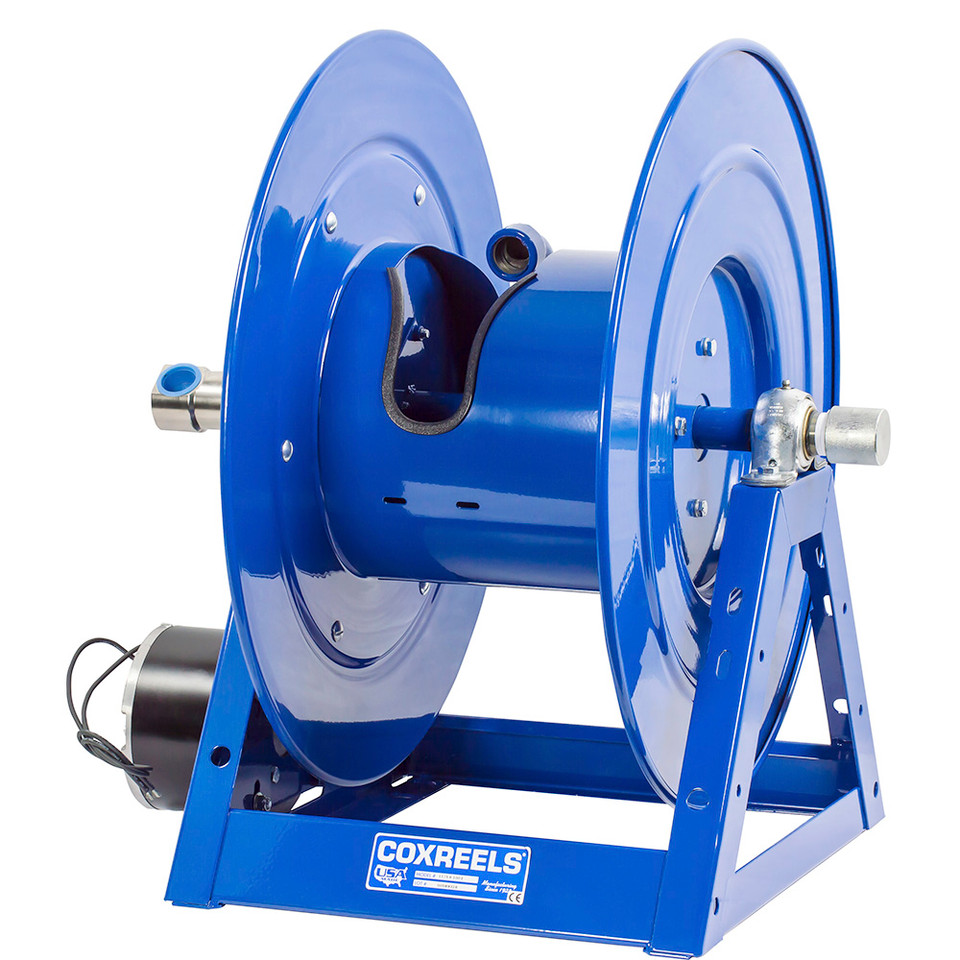

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 24V DC Explosion Proof Motor Rewind Hose Reel | Series: 1175 Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 125 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Voltage: 24V DC
Features:
- Explosion-proof 24V DC motor provides safe, automated hose rewind for hazardous locations
- Durable steel construction withstands industrial wear and impact
- Swivel mount enables flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact footprint preserves workspace while providing full hose length
- Mounting hardware included for secure and rapid installation
Made in USA:
Applications:
- Industrial maintenance & hazardous environments - delivering air, water, or oil safely in explosion-risk areas
- Construction & fabrication sites - automated hose deployment and retrieval for high-pressure use
- Automotive & fleet service - powering pneumatic tools, lifts, and washdown hoses with minimal manual effort
- Chemical & paint facilities - maintaining hose organization and safety in hazardous areas
FAQs:
- Q: What does "less hose" mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: Is the DC motor suitable for hazardous environments?
A: Yes, the 24V DC motor is explosion-proof and certified for flammable or combustible atmospheres. - Q: Can the reel handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1" hose diameter for air, water, or oil applications. - Q: Can it be mounted horizontally or vertically?
A: Yes, the swivel mount allows flexible installation on walls, ceilings, or benches. - Q: Is outdoor use allowed?
A: Primarily designed for indoor industrial and workshop use. Outdoor installation requires weather protection.
| SKU | LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1175-6-125 | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-AB | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-C | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EA | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EB | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-ED | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EF | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EJ | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-H | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-E | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-A | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
