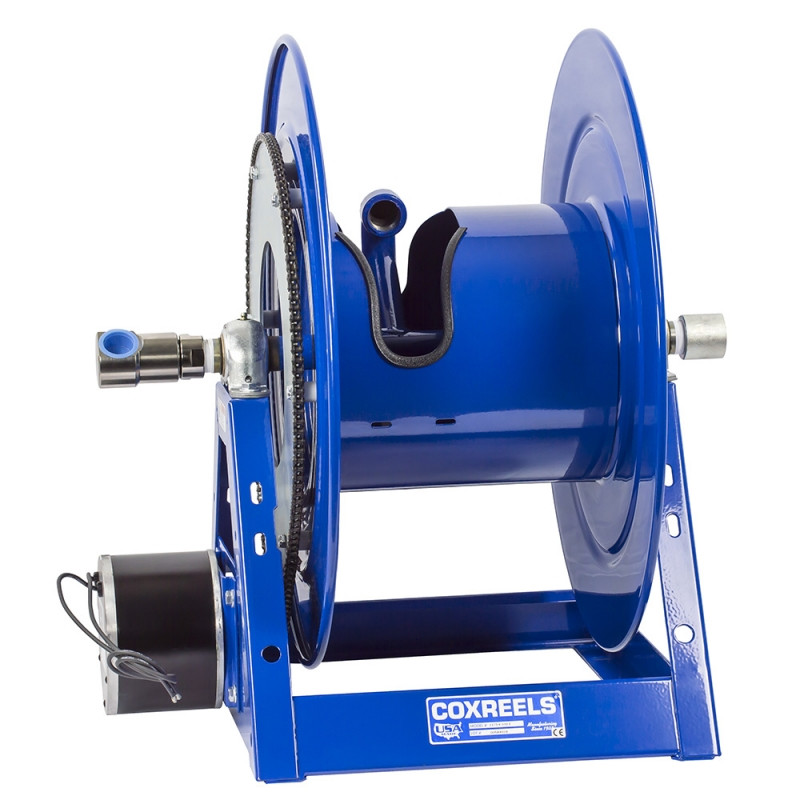

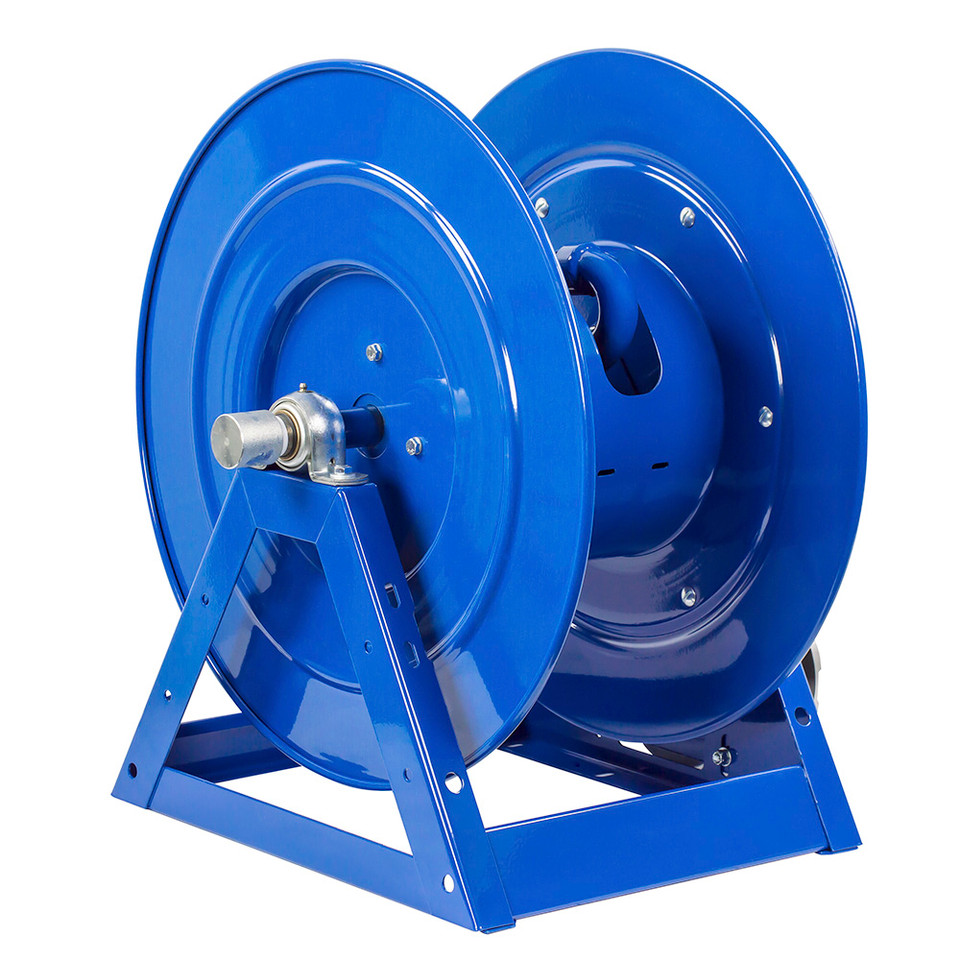

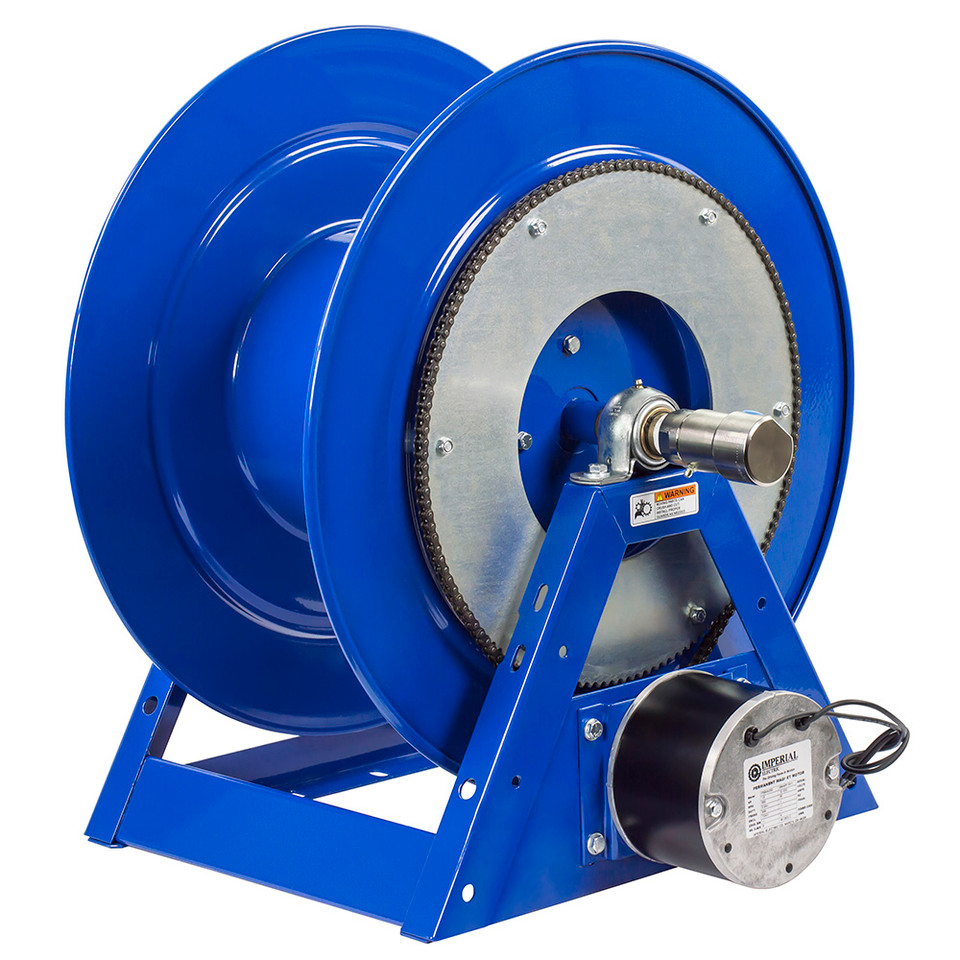

When you need a high-capacity hose reel for hazardous environments, the Coxreels 1175-6-125-EA electric explosion-proof motor rewind hose reel provides safe, automated operation for up to 125' of 1" hose. Powered by a 115V AC explosion-proof motor, it retracts hoses efficiently while meeting strict safety requirements in flammable or combustible environments. Rated for 3,000 PSI, the 1175 Series supports air, water, and oil service, making it ideal for industrial maintenance, automotive shops, and chemical or paint facilities where safety, reliability, and hose management are critical.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Explosion Proof Motor Rewind Hose Reel | Series: 1175 Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 125 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Voltage: 115V AC
Features:
- Explosion-proof electric motor provides safe, automated hose rewind in hazardous areas
- Durable steel housing resists industrial wear and mechanical impacts
- Swivel mount allows flexible installation on wall, ceiling, or bench
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design delivers full hose length while conserving workspace
- Mounting hardware included for secure and rapid installation
Made in USA:
Applications:
- Industrial maintenance & hazardous environments - safe and efficient hose deployment where flammable or combustible materials are present
- Construction & fabrication sites - delivering pressurized air, water, or oil to tools with minimal manual effort
- Automotive & fleet service - powering pneumatic tools, lifts, and washdown hoses safely
- Chemical & paint facilities - maintaining hose organization and preventing hazards in explosion-risk areas
FAQs:
- Q: What does "less hose" mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: Is the motor suitable for hazardous environments?
A: Yes, the reel features an explosion-proof 115V AC motor, certified for use in flammable or combustible atmospheres. - Q: Can the reel handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1" hose diameter for air, water, or oil applications. - Q: Can this reel be mounted horizontally or vertically?
A: Yes, the swivel mount allows flexible wall, ceiling, or bench installation. - Q: Is outdoor use allowed?
A: It is primarily intended for indoor industrial and workshop use. Outdoor installation requires protection from weather and debris.
| SKU | LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1175-6-125 | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-AB | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-C | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EA | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EB | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-ED | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EF | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-EJ | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-H | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-E | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
| 1175-6-125-A | 1" | 1 7/16" | 125 | 3/4" | 1 1/4" | 200 | 1" F NPT 90° | 1" F NPT | 3,000 | 72 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
