Coxreels 1175-6-125-A Compressed Air Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 125' Hose Length | 3000 Max PSI | Less Hose

When a long, large-diameter hose needs powered retrieval, the Coxreels 1175-6-125-A Compressed Air Motor Rewind Hose Reel provides pneumatic retraction without requiring the operator to hand-crank a fully deployed line. This 1175 Series reel accommodates up to 125 feet of 1-inch I.D. hose, giving maintenance crews, equipment operators, and service-truck installers extended reach while supporting the higher flow demands associated with large hose assemblies. Its 3,000 PSI maximum working pressure allows the reel to be incorporated into compatible medium-pressure air, oil, water, or hydraulic fluid systems when the selected hose and fittings carry appropriate ratings.

The compressed air motor drives a chain-and-sprocket rewind system, helping retrieve hose smoothly while reducing the physical effort and time associated with manual winding. A low-profile outlet riser and open drum slot promote a flat, orderly hose wrap, while permanently lubricated self-aligning pillow block bearings support smooth drum rotation. The welded steel A-frame base provides a stable mounting structure for stationary shop installations, mobile service equipment, and machinery skids.

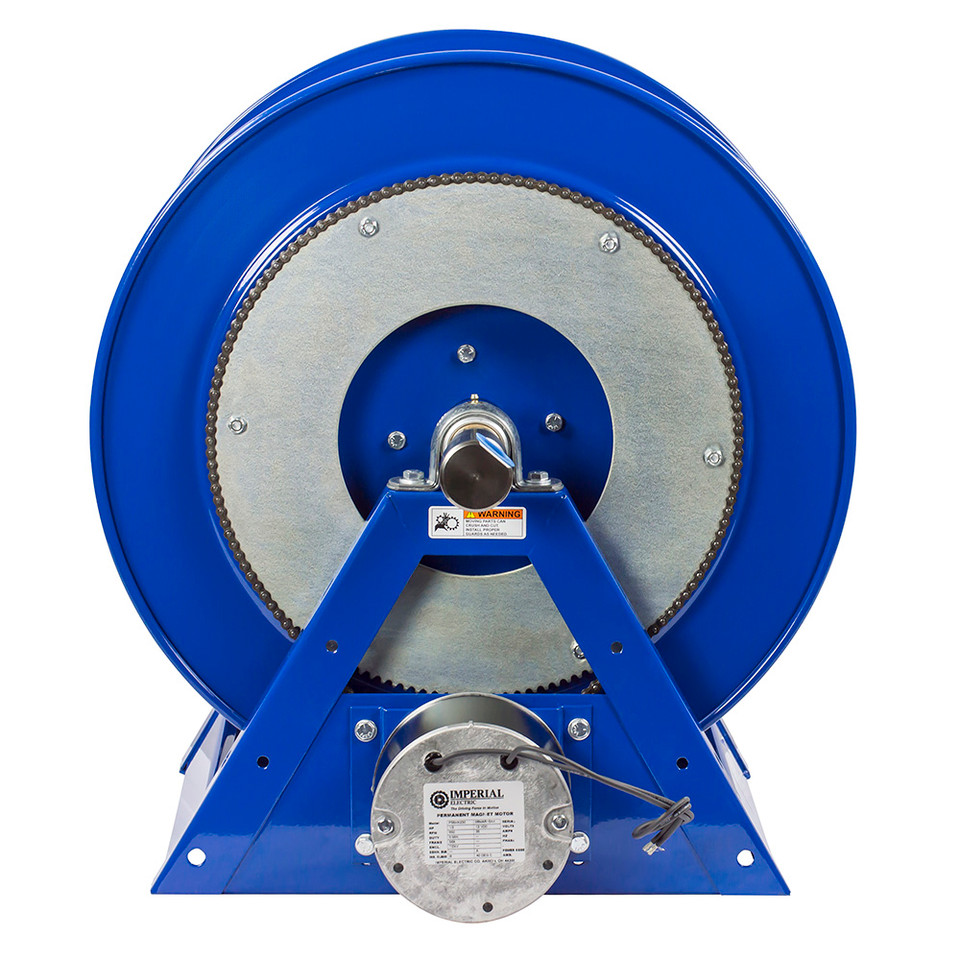

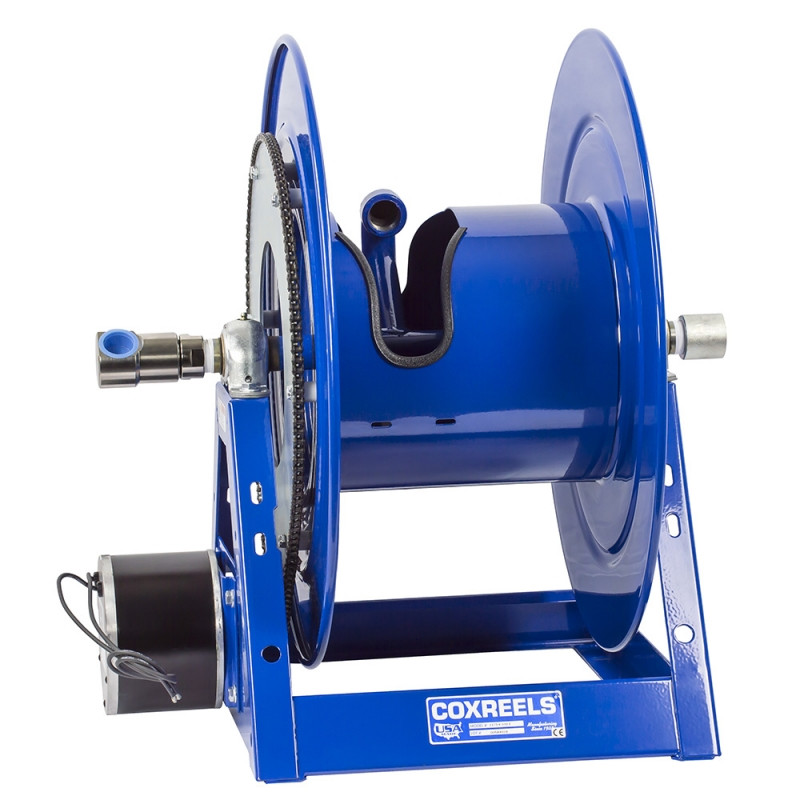

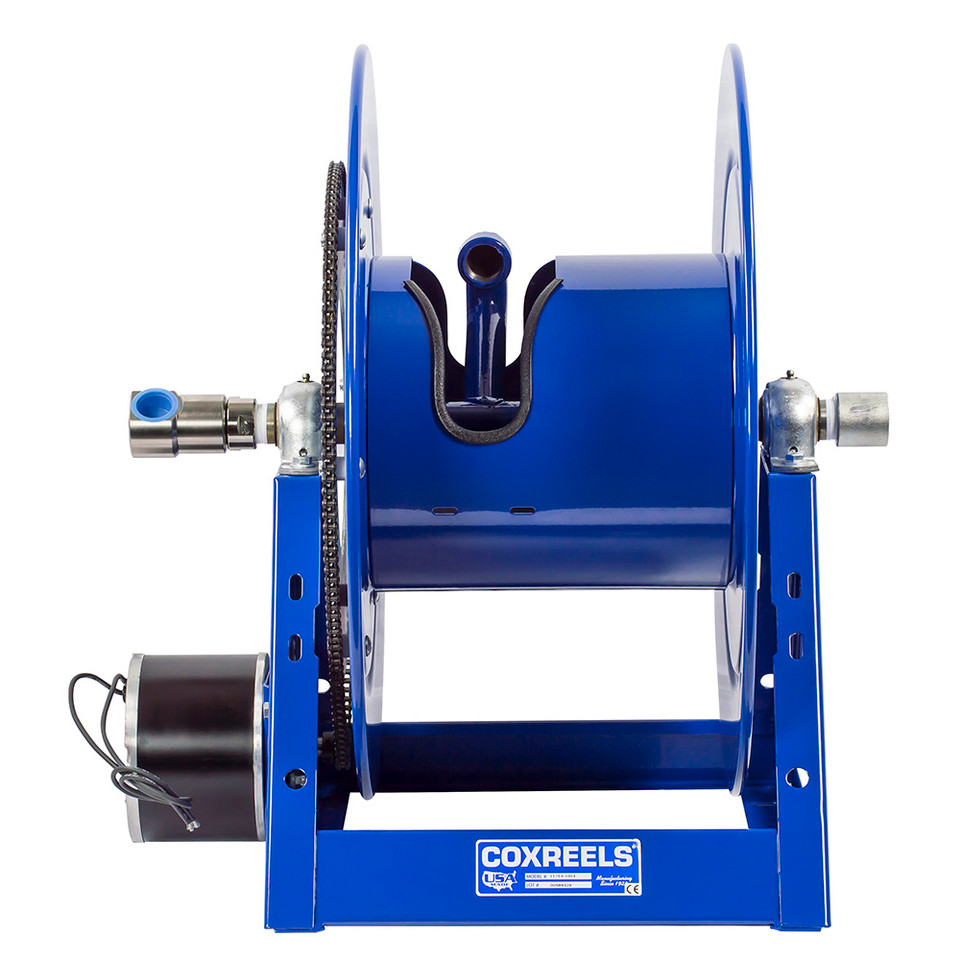

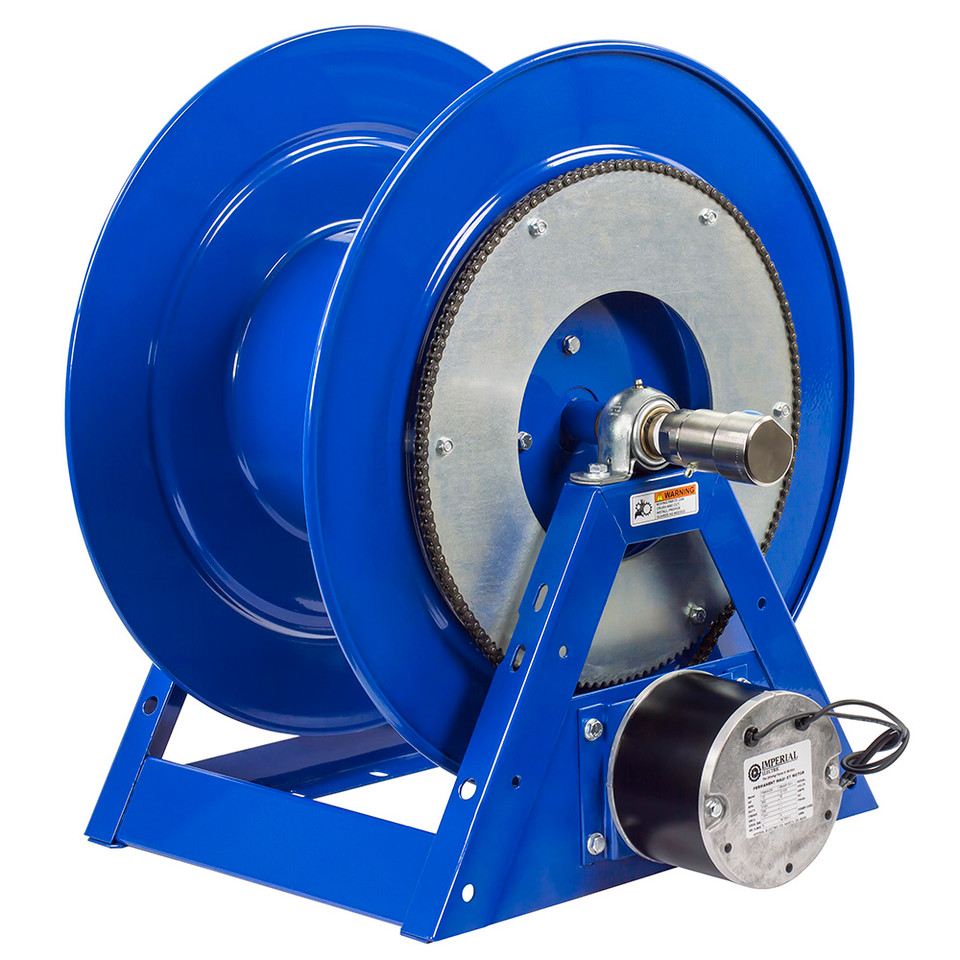

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Compressed Air Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-125-A | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 125 ft | Maximum Working Pressure: 3,000 PSI | Swivel Inlet: 1" Female NPT, 90° | Outlet Riser: 1" Female NPT | Overall Dimensions: 26.5" W x 26.13" H x 24" L | Mounting Pattern: 16.81" M x 13.75" N | Base Dimensions: 19" X x 20.13" Y

Features:

• Compressed air motor rewind reduces the effort required to retrieve long, large-diameter hose assemblies.
• Reliable chain-and-sprocket drive provides continuous powered drum rotation during hose retrieval.
• One-piece, all-welded 12-gauge steel A-frame base strengthens the reel structure and provides an integrated mounting pattern.
• Nickel-plated steel 90-degree full-flow NPT swivel supports unrestricted fluid movement and allows seal servicing without removing the reel from its mount.
• Low-profile outlet riser and open drum slot help produce a flat hose wrap while reducing sharp bends at the connection point.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with minimal routine attention.
• Adjustable tension brake helps control drum movement and prevents free-wheeling during operation.
• Robotically spun, ribbed steel discs feature rolled edges for structural support, hose protection, and safer handling.

Made in USA:

2 Year Warranty

Applications:

• Industrial maintenance and MRO operations requiring organized storage and powered retrieval of long air or fluid hose.
• Utility and fleet service trucks carrying large-diameter hose for field maintenance and equipment support.
• Manufacturing facilities supplying air, oil, water, or compatible hydraulic fluid to machinery and work areas.
• Equipment skids and mobile service systems where manual hose retrieval would be slow or physically demanding.
• Construction and machinery maintenance sites requiring up to 125 feet of hose reach from a fixed reel location.

FAQs:

• Q: Does the Coxreels 1175-6-125-A include hose?
  A: No. This model is supplied as a reel without hose. The purchaser must select a compatible 1-inch I.D. hose with an outside diameter, pressure rating, bend radius, and media compatibility suitable for the installation.
• Q: What powers the rewind mechanism?
  A: The 'A' suffix identifies a compressed air motor rewind configuration. The air motor operates the reel's chain-and-sprocket drive to retrieve the hose without manual cranking.
• Q: What air pressure should be supplied to the rewind motor?
  A: Coxreels instructs users not to exceed 100 PSI at the motor inlet. A properly sized filter-regulator-lubricator or control valve should be installed in the motor air line to regulate speed and provide conditioned air. :contentReference[oaicite:1]{index=1}
• Q: Can this reel be used at the full 3,000 PSI rating with any hose?
  A: No. The complete assembly is limited by its lowest-rated component. The hose, fittings, connectors, and system media must all be compatible and rated for the intended working pressure.
• Q: How much mounting space does this reel require?
  A: The reel measures 26.5 inches wide, 26.13 inches high, and 24 inches long. Its mounting pattern is 16.81 inches by 13.75 inches, so the supporting structure must provide adequate clearance and load capacity.
