Coxreels 1175-6-50 Hand Crank Hose Reel | 1175 Series | 1" Hose Diameter | 50' Hose Length | 3000 Max PSI | Less Hose

For fluid-transfer installations that need large-diameter hose storage without powered rewind equipment, the Coxreels 1175-6-50 combines a straightforward manual crank with the larger-capacity frame of the 1175 Series. The reel stores up to 50 ft of 1" I.D. hose, keeping shorter high-flow hose runs organized on service vehicles, mobile equipment, and fixed dispensing systems. Its 3,000 PSI maximum pressure rating allows the reel to be paired with properly rated hose and fittings for compatible medium-pressure applications.

A solid steel direct hand crank transfers the operator's input directly to the drum, providing simple manual retrieval without a motor, gearbox, or external power supply. The low-profile outlet riser and open drum slot guide the hose into flatter, more even wraps, while permanently lubricated, self-aligning pillow block bearings help the drum rotate smoothly. An adjustable tension brake controls free-wheeling during payout, and a long-handled locking pin secures the drum during transport or storage.

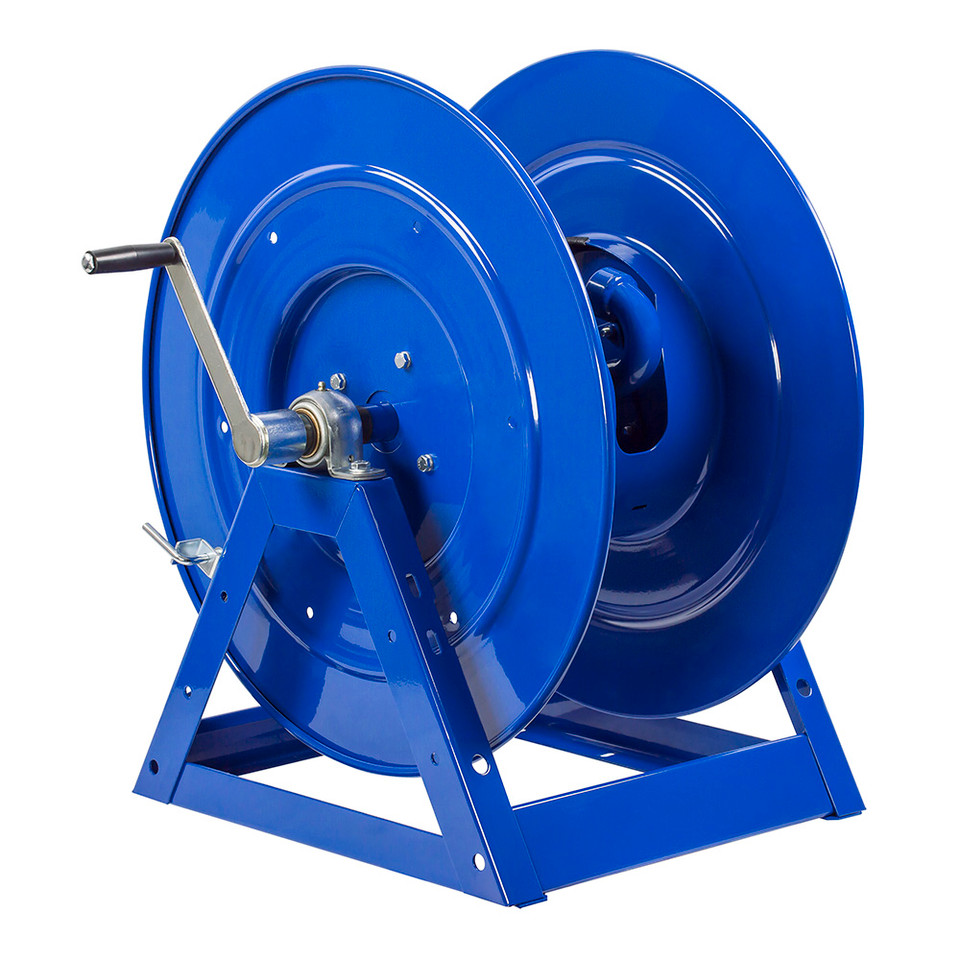

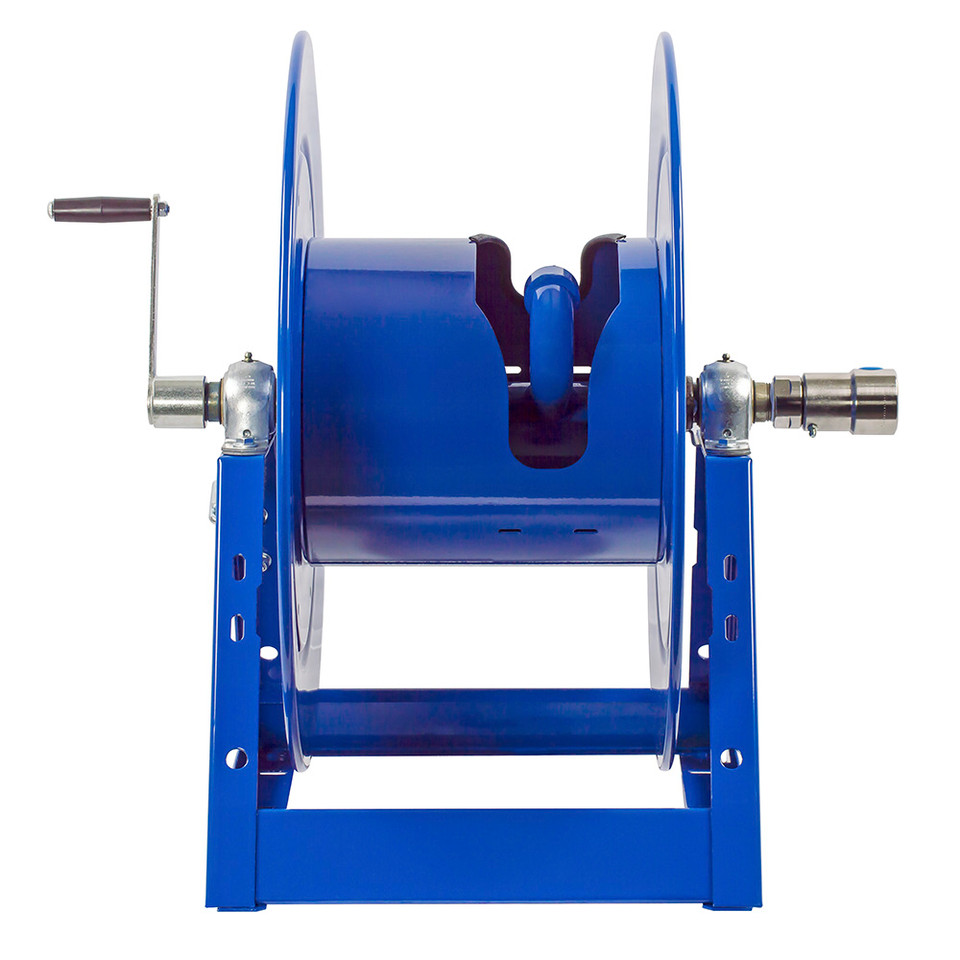

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Direct Hand Crank Hose Reel | Model: 1175-6-50 | Series: 1175 Series | Configuration: Less Hose | Standard Hose Capacity: 1" I.D. x 1-7/16" O.D. x 50 ft | Optional Hose Capacity: 3/4" I.D. x 1-1/4" O.D. x 100 ft, reducer required | Max Pressure: 3,000 PSI | Inlet Swivel: 1" Female NPT, 90° | Outlet Riser: 1" Female NPT

Features:

• Solid steel direct hand crank with a smooth round handle provides uncomplicated manual hose retrieval.
• One-piece, all-welded 12-gauge steel A-frame base supports the drum without relying on a bolted frame assembly.
• Low-profile outlet riser and open drum slot promote flat hose wraps while reducing the chance of hose crimping at the drum connection.
• Nickel-plated steel 90-degree full-flow NPT swivel simplifies inlet hose installation and seal access.
• AFLAS swivel seals support the reel's specified fluid path and pressure configuration.
• Permanently lubricated, self-aligning pillow block bearings help maintain smooth drum rotation.
• Adjustable tension brake limits uncontrolled free-wheeling as hose is pulled from the reel.
• Long-handled locking pin prevents drum rotation during transport or storage.
• CNC-spun, ribbed steel discs with rolled edges reinforce the drum while helping protect the hose and operator.
• Chip-resistant and rust-inhibiting CPC powder-coat finish protects exposed steel surfaces.

Made in USA:

2 Year Warranty

Applications:

• Mobile service equipment requiring compact storage for a 50-foot length of large-diameter hose.
• Water-transfer and high-flow watering systems using hose, fittings, and components matched to the reel specifications.
• Construction and utility vehicles where manual rewind avoids the need for electrical, pneumatic, or hydraulic reel power.
• Lubrication and oil-transfer stations after verifying fluid compatibility with the reel's seals and wetted components.
• Industrial maintenance areas that need an operator-controlled method for deploying and storing bulk fluid hose.
• Stationary or mobile fluid-handling installations where the locking pin can secure the drum between uses.

FAQs:

• Q: Is hose supplied with the Coxreels 1175-6-50?
  A: No. The 1175-6-50 is a less-hose reel. Compatible hose must be selected separately according to the required diameter, pressure, fluid service, and temperature range.
• Q: How is this reel different from the 1175-6-50-C?
  A: The 1175-6-50 uses a solid steel direct hand crank. The 1175-6-50-C uses a front bevel geared crank, which provides a different mechanical rewind arrangement.
• Q: Can this reel store 100 feet of 3/4-inch hose?
  A: Yes. Coxreels lists an optional capacity of 100 ft for hose measuring 3/4" I.D. and 1-1/4" O.D. A reducer is required to connect that hose size to the reel's 1" fittings.
• Q: Does the 3,000 PSI rating apply to any hose installed on the reel?
  A: No. The complete system is limited by its lowest-rated component. The selected hose, fittings, couplings, and fluid-transfer equipment must each be rated for the intended operating pressure.
• Q: What space is required for mounting?
  A: The reel measures 24.13" wide, 26.13" high, and 24" long. The listed mounting pattern is 10.31" by 13.75", with a 13" by 20.13" base footprint.
