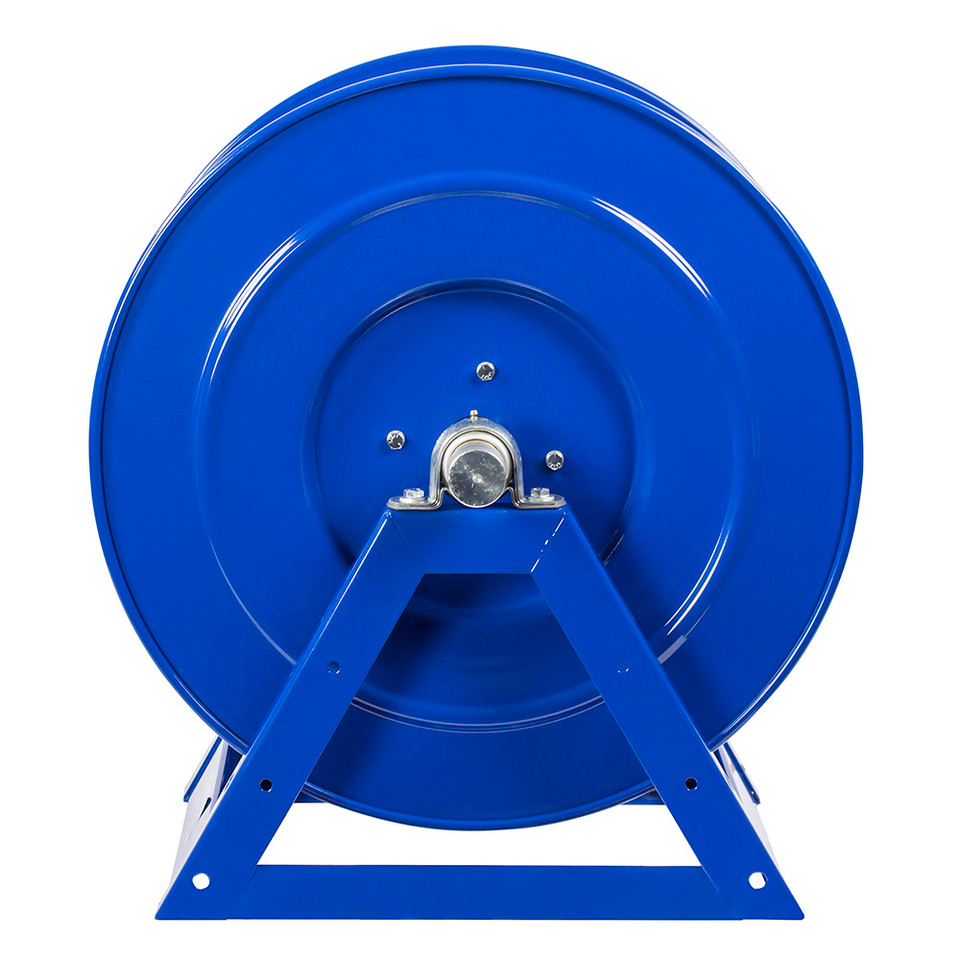

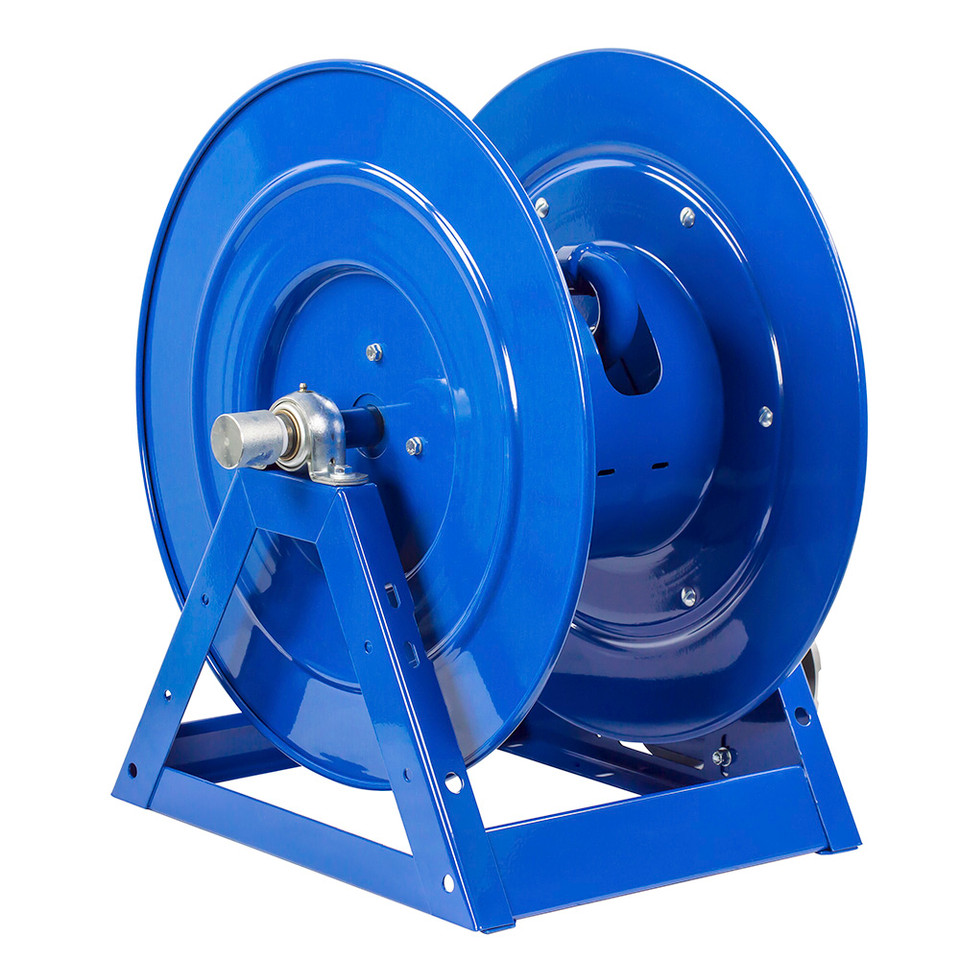

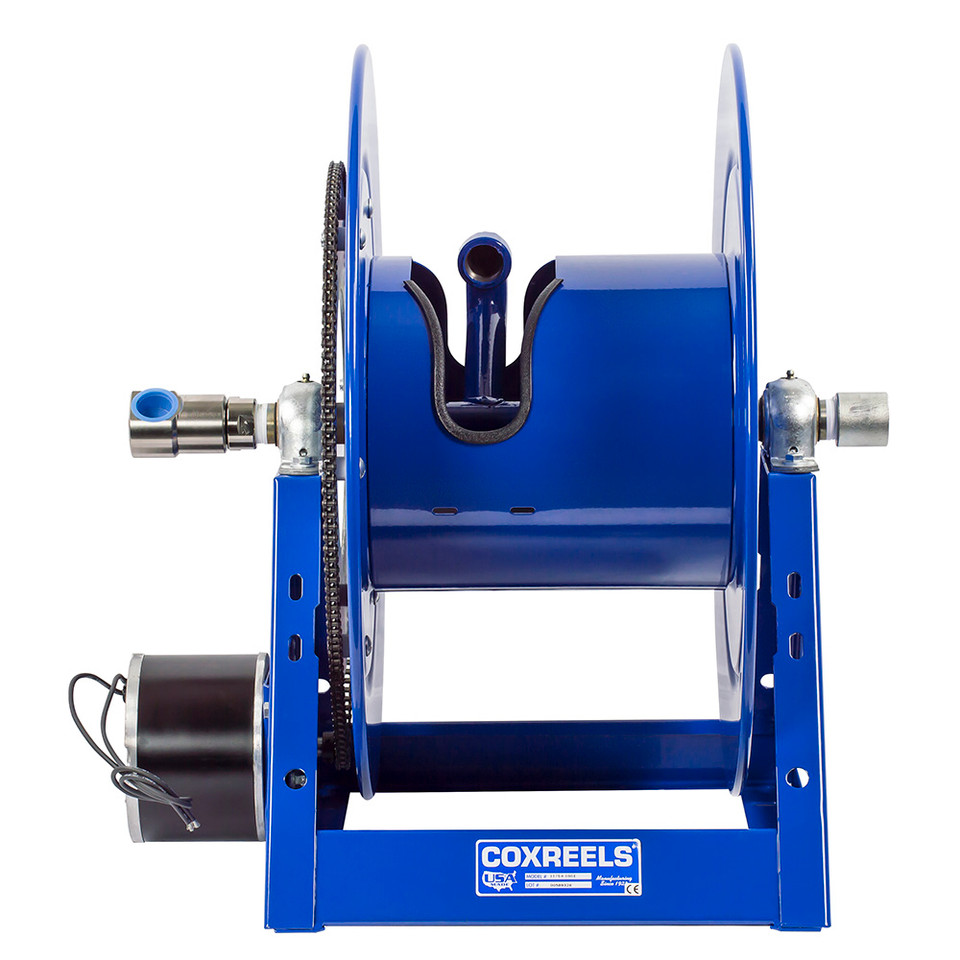

Coxreels 1175-6-50-EB electric 24V DC explosion-proof motor rewind hose reel is designed for safe, automated hose management in hazardous environments where DC power is required. It provides smooth retraction of up to 50' of 1" hose, reducing operator effort and maintaining organized workspaces. Rated for 3,000 PSI, the 1175 Series supports air, water, and oil service, making it ideal for industrial maintenance, automotive/fleet service, and chemical or paint facilities requiring reliable and safe hose handling.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 24V DC Explosion Proof Motor Rewind Hose Reel | Series: 1175 Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 50 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Voltage: 24V DC
Features:
- Explosion-proof 24V DC motor provides safe, automated hose rewind for hazardous areas
- Durable steel housing resists industrial wear and impact
- Swivel mounting allows flexible installation on wall, ceiling, or bench
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design preserves workspace while accommodating full hose length
- Mounting hardware included for secure installation
Applications:
- Industrial maintenance & hazardous environments safe hose deployment in flammable or combustible areas
- Construction & fabrication sites automated hose handling for high-pressure applications
- Automotive & fleet service powering pneumatic tools, lifts, and washdown hoses safely
- Chemical & paint facilities maintaining hose organization and compliance with safety standards
FAQs:
- Q: What does "less hose" mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: Is the DC motor suitable for hazardous environments?
A: Yes, it is explosion-proof and certified for use in flammable or combustible atmospheres. - Q: Can the reel handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1" hose diameter for air, water, or oil applications. - Q: Can it be mounted horizontally or vertically?
A: Yes, the swivel mount allows flexible installation on walls, ceilings, or benches. - Q: Is outdoor use allowed?
A: Primarily intended for indoor industrial or workshop environments. Outdoor exposure requires protection from elements.
| SKU | LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1175-6-50 | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-A | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-AB | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-C | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-E | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EA | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EB | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-ED | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EF | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EJ | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-H | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
