When a large-diameter hose must be deployed and recovered without relying on electrical, pneumatic, or hydraulic power, the Coxreels 1175-6-50-C provides a manually operated storage solution for water trucks, construction equipment, lubricant dispensing systems, and fluid-transfer setups. This 1175 Series reel uses a front-mounted bevel geared hand crank, which changes the direction of crank input through angled gears for controlled hose retrieval. Its drum accommodates up to 50 ft of 1" I.D. hose, while the 3,000 PSI maximum pressure rating supports compatible high-pressure hose and fluid-handling systems.
The larger 1175 Series chassis combines an all-welded steel A-frame with a low-profile outlet riser and open drum slot, helping the hose form flat, even wraps during rewind. A 90-degree full-flow swivel provides a direct fluid path while reducing the space needed at the inlet connection. Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation, and the adjustable tension brake helps control unwanted free-wheeling as hose is paid out.

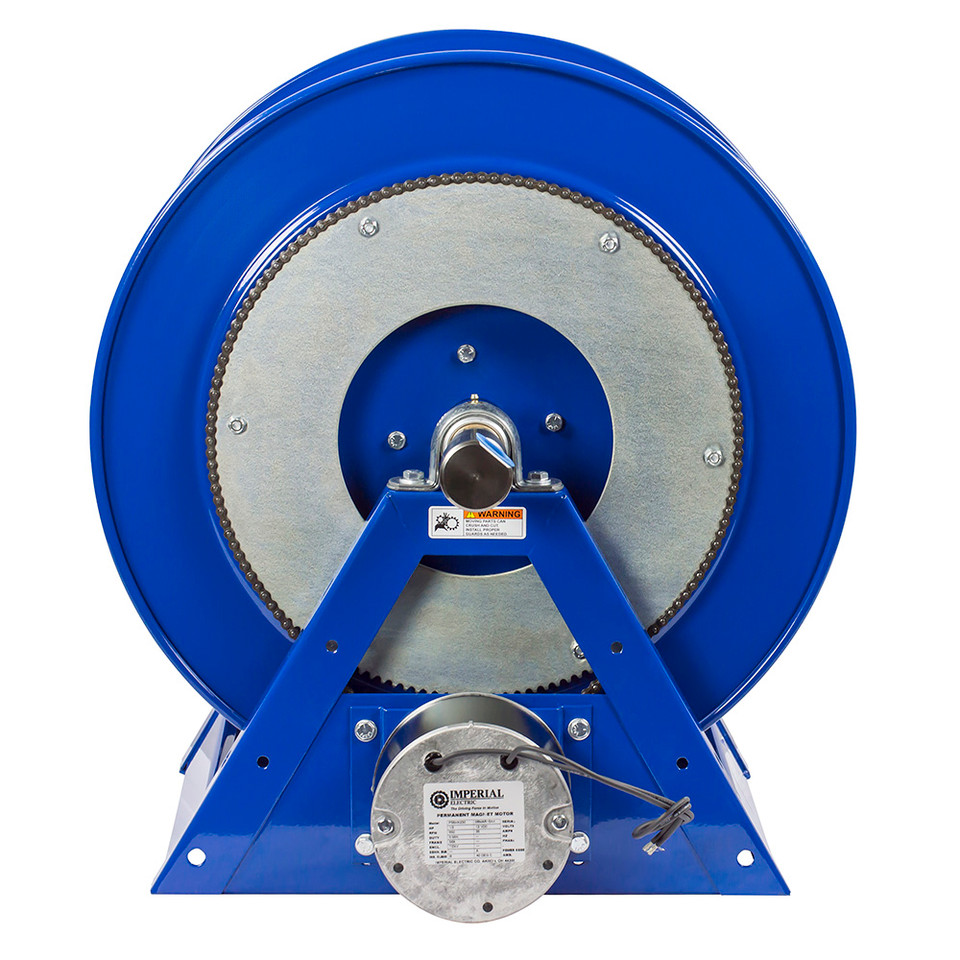

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Crank Rewind Hose Reel | Model: 1175-6-50-C | Series: 1175 Series | Configuration: Less Hose | Standard Hose Capacity: 1" I.D. x 1-7/16" O.D. x 50 ft | Optional Hose Capacity: 3/4" I.D. x 1-1/4" O.D. x 100 ft, reducer required | Max Pressure: 3,000 PSI | Inlet Swivel: 1" Female NPT, 90° | Outlet Riser: 1" Female NPT
Features:
- Front-mounted bevel geared hand crank supports controlled manual rewinding without an external power source.
- All-welded steel A-frame construction provides a stable reel structure for larger hose diameters and capacities.
- Low-profile outlet riser and open drum slot promote flat, smooth hose wraps across the drum.
- Nickel-plated steel 90-degree full-flow NPT swivel inlet supports unrestricted flow through the reel connection.
- AFLAS and nitrile swivel seals are installed on the stainless steel fluid path.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation.
- Adjustable tension brake helps prevent uncontrolled free-wheeling while hose is being pulled from the reel.
- Long-handled locking pin secures the reel against rotation during transport or storage.
- Rolled disc edges and ribbed discs add structural strength while reducing exposed sharp edges.
- Durable proprietary CPC powder-coat process protects the steel reel surfaces.
Made in USA:
Applications:
- Water trucks and mobile watering equipment requiring organized storage of large-diameter delivery hose.
- Construction sites where hose must be manually deployed and recovered without access to reel power.
- Lubricant dispensing systems using compatible hose, fluids, seals, fittings, and pressure levels.
- Farming and high-flow watering operations that benefit from controlled hose storage on stationary or mobile equipment.
- Fire-suppression and water-transfer installations within the reel's hose-capacity and pressure limits.
- Chemical fluid-transfer systems after confirming hose, seal, and wetted-component compatibility with the specific fluid.
FAQs:
- Q: Does the Coxreels 1175-6-50-C include hose?
A: No. This model is supplied less hose. It provides storage capacity for up to 50 ft of hose measuring 1" I.D. and 1-7/16" O.D. - Q: What does the 'C' suffix indicate?
A: The C suffix identifies the front hand-crank configuration with a bevel geared crank. It is manually rewound and does not require an electric, air, or hydraulic motor. - Q: Can the reel hold 3/4" hose?
A: The catalog lists an optional capacity of 100 ft for hose measuring 3/4" I.D. and 1-1/4" O.D. A reducer is required for that configuration. - Q: What connections are provided on the reel?
A: The reel has a 1" female NPT 90-degree inlet swivel assembly and a 1" female NPT outlet riser. Verify that the hose ends and system fittings match these connections before ordering. - Q: What keeps the drum from spinning during transport?
A: A long-handled locking pin secures the reel against rotation during transport or storage. The adjustable tension brake separately helps control free-wheeling during hose payout.
| SKU | LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1175-6-50 | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-A | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-AB | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-C | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-E | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EA | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EB | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-ED | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EF | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EJ | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-H | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
