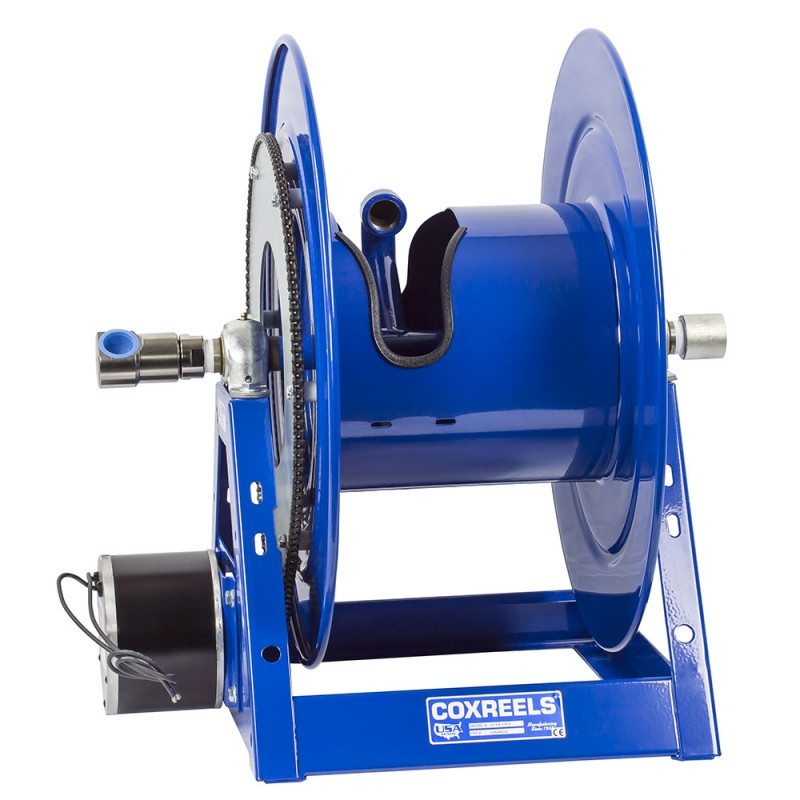

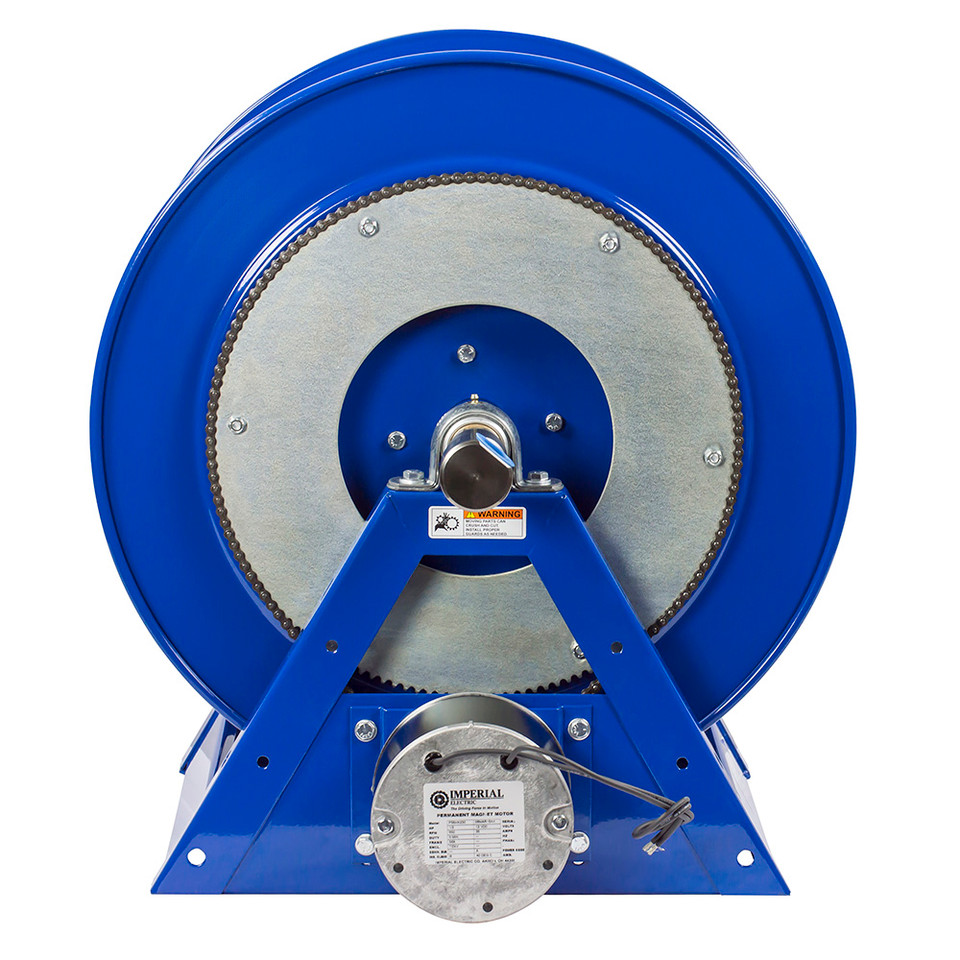

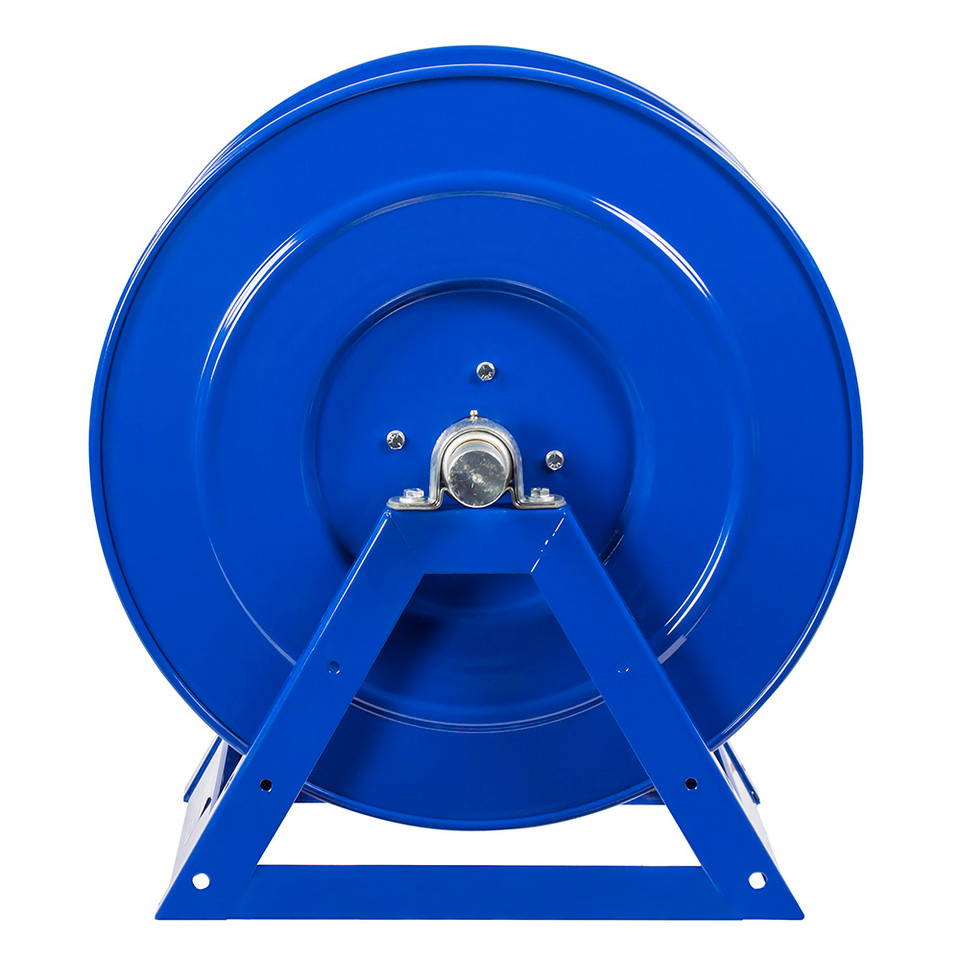

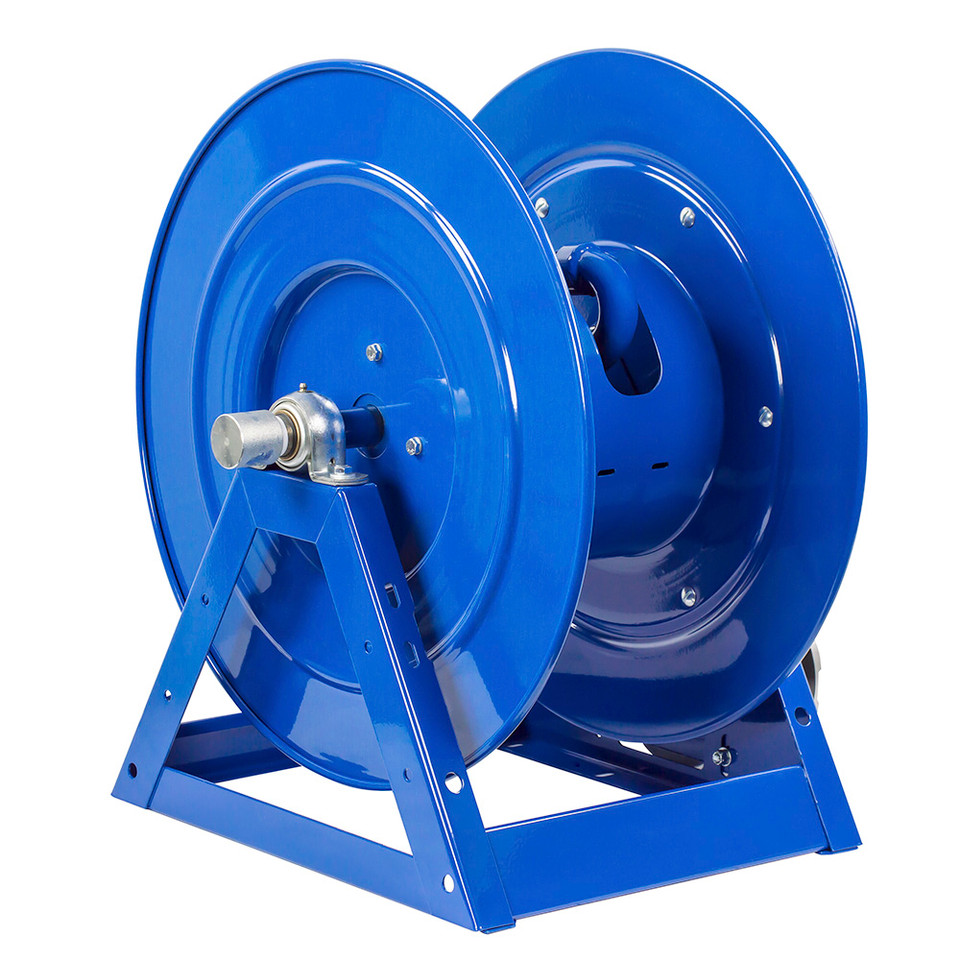

Coxreels 1175-6-50-EA electric 115V AC explosion-proof motor rewind hose reel is engineered for safe, automated hose management in hazardous environments. It retracts up to 50' of 1" hose efficiently, reducing manual effort and ensuring organized workspaces. Rated for 3,000 PSI, the 1175 Series supports air, water, and oil service, making it ideal for industrial maintenance, automotive shops, and chemical or paint facilities where safety and reliability are essential.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 115V AC Explosion Proof Motor Rewind Hose Reel | Series: 1175 Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 50 ft | Max Pressure: 3,000 PSI | Service: Air, Water, Oil | Voltage: 115V AC
Features:
- Explosion-proof 115V AC motor provides automated hose rewind in hazardous areas
- Durable steel housing resists industrial wear and impact
- Swivel mount allows flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design conserves workspace while providing full hose length
- Mounting hardware included for secure installation
Applications:
- Industrial maintenance & hazardous environments - safe hose deployment where flammable or combustible materials are present
- Construction & fabrication sites - automated hose handling for high-pressure service
- Automotive & fleet service - powering pneumatic tools, lifts, and washdown hoses efficiently
- Chemical & paint facilities - maintaining hose organization and compliance with safety standards
FAQs:
- Q: What does "less hose" mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: Is the motor suitable for hazardous environments?
A: Yes, it is explosion-proof and certified for use in flammable or combustible atmospheres. - Q: Can the reel handle high-pressure service?
A: Yes, it is rated for up to 3,000 PSI with 1" hose diameter for air, water, or oil applications. - Q: Can it be mounted horizontally or vertically?
A: Yes, the swivel mount allows flexible installation on walls, ceilings, or benches. - Q: Is outdoor use allowed?
A: It is intended primarily for indoor industrial and workshop environments. Outdoor installation requires protection from weather and debris.
| SKU | LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1175-6-50 | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-A | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-AB | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-C | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-E | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EA | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EB | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-ED | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EF | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-EJ | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
| 1175-6-50-H | 1" | 1 7/16" | 50 | 3/4" | 1 1/4" | 100 | 1" F NPT 90° | 1" F NPT | 3,000 | 67 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
